Sumake ST-6677B User Manual

1/4" 6.4mm air hydraulic riveter vacuum type
Hide thumbs

Advertisement

Quick Links

Download this manual
SUMAKE

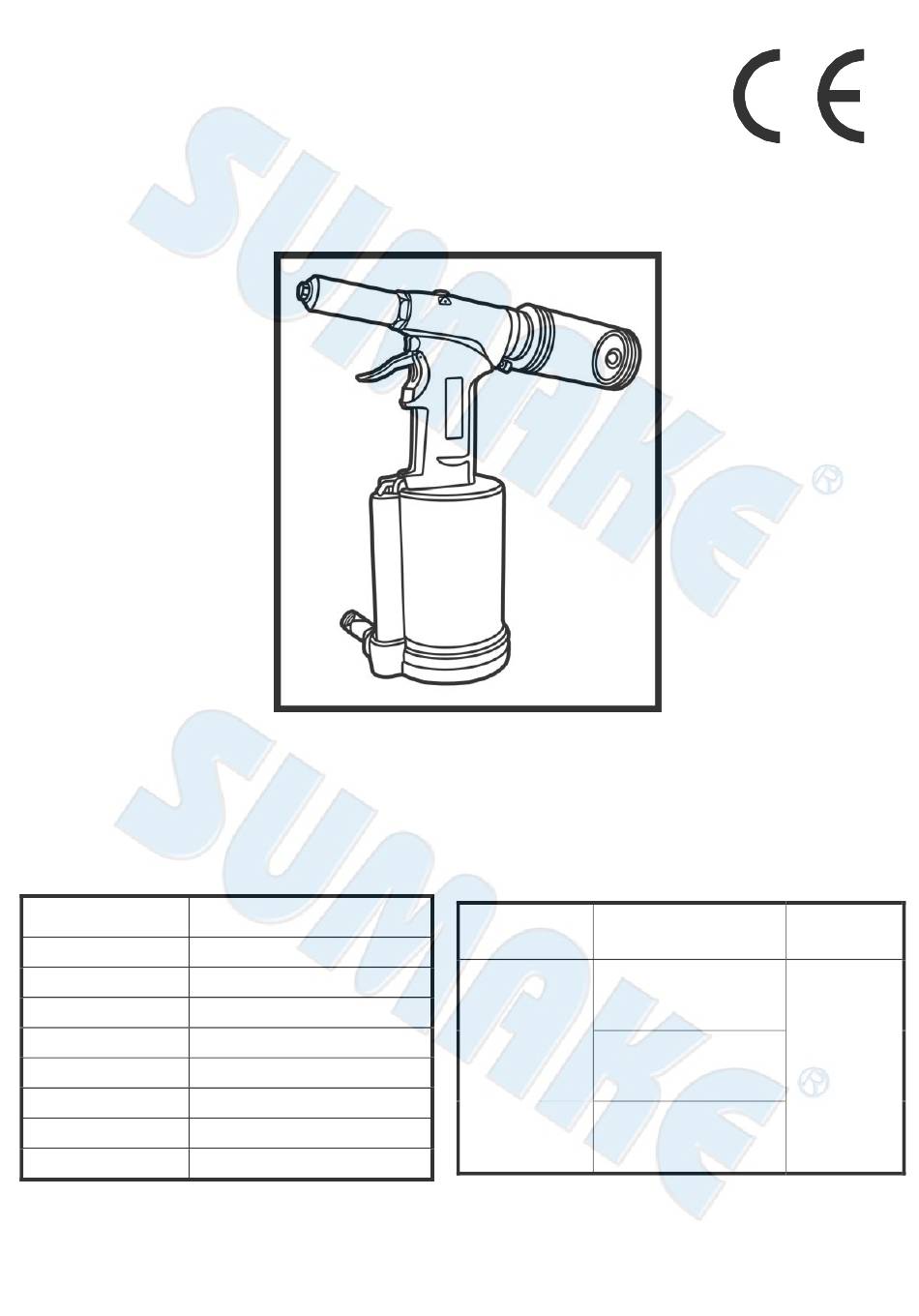

1/4"(6.4mm) Air Hydraulic Riveter
Specification:
Riveting Capacity
Stroke Length
Traction Power
Overall Height
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
(Vacuum Type)
ST-6677B
1/8", 5/32", 3/16, 1/4"
(3.2mm, 4.0mm, 4.8mm, 6.4mm)
0.875" (23mm)
3800 lbs (1723 kg)
12-1/2" (317mm)
9 CFM (255 L/min)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.8 lbs (1.7 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No load: 71.1 dB(A)
Load:
< 2.5 m/s²
Sound power level
No load: 82.1 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
Uncertainty
K= 3dB
ST-6677B-S-1902D-FPF
wear ear
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-6677B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumake ST-6677B

Summary of Contents for Sumake ST-6677B

  • Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 3.8 lbs (1.7 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6677B-S-1902D-FPF...
