SUMAKE

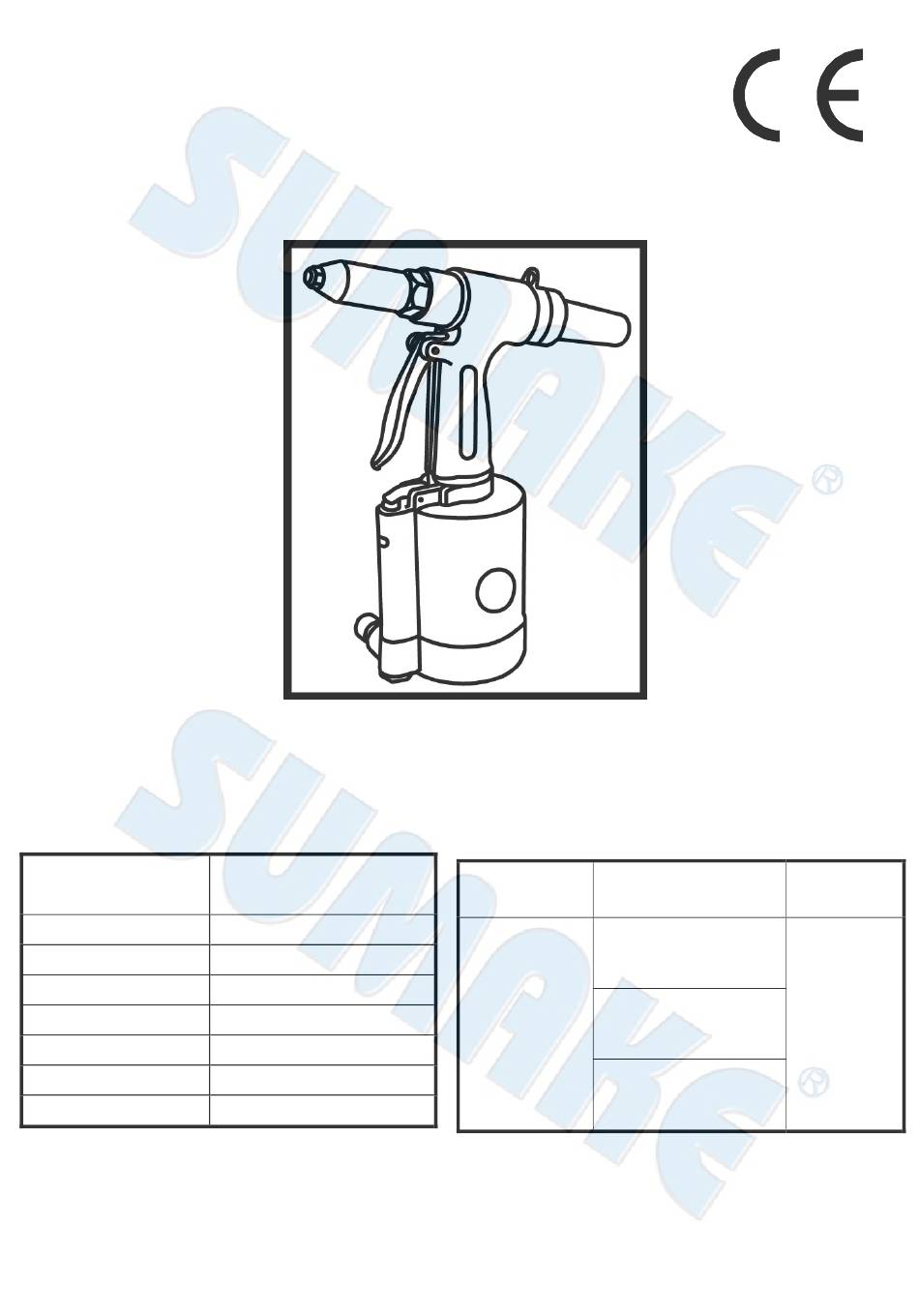

3/16"(4.8mm) Air Hydraulic Riveter
Specification:
Blind Rivet Setting
Capacity
Tractin Power
Piston Stroke
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-6615
3/32", 1/8", 5/32", 3/16",
(2.4mm, 3.2mm, 4.0mm, 4.8mm)
1586 lbs (720kg)
9/16" (14 mm)
10-3/4" (273 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.3 lbs (1.5 kg)
Noise and Vibration:
Vibration
EN ISO 20643
Sound Pressure Level
No load: 90.4 dB(A)
Load:
5.06 m/s²
Sound power level
No load: 101.4 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
Remark
EN ISO 15744
Please always
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
Uncertainty
K= 3dB
ST-6615-S-1204D-SC
wear ear
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-6615
Summary of Contents for Sumake ST-6615
- Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 3.3 lbs (1.5 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-6615-S-1204D-SC...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：3/16"(4.8MM) AIR HYDRAULIC RIVETER Model/ Serial No.：ST-6615 to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 Re-install and tighten the tube. of power. Operating pressure is too low. Increase the operating pressure to 85-95psi. Hydraulic oil is not enough. Rivet can’t pull out or no power. Open the cylinder cap and reload Hydraulic oil into the tool. ST-6615-I-1309D-SC...
- Page 4 ST-6615 3/16"(4.8MM) AIR HYDRAULIC RIVETER PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 6615-01A Nosepiece 4.8mm (3/16") 6615-30 Trigger Pin (3x24) 6615-01B Nosepiece 4.0mm (5/32") 6615-31 Rod Pin (3x6) 6615-01C Nosepiece 3.2mm (1/8") 6615-32 Trigger Rod 6615-01D Nosepiece 2.4mm (3/32")
- Page 5 RIVETER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 Safety precautions for repetitive motions hazards 1. When using a power tool, the operator may experience discomfort in the hands, arms, shoulders, neck, or other parts of the body. 2. While using a power tool, the operator should adopt a comfortable posture. Maintain secure footing and avoid awkward or off-balanced postures.
- Page 8 General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE 10W-20 (ISO Viscosity Grade 46/32) Hydraulic Oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary. Twist Teflon thread tape to ensure a proper seal air inlet. Then tighten the air coupler into air tool.
