RMG GSM RF WLCI User Manual

Gsm+rf complete wireless mobile water level controller with indicator for overhead tank

Advertisement

RMG AUTOMATION
RMG
+91 9940594413
GSM+RF Complete Wireless
Mobile Water Level Controller
with Indicator for Overhead Tank
Model : GSM_RF_WLCI
User Manual
http://rmgautomation.com
rmgworld@hotmail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM RF WLCI and is the answer not in the manual?

Questions and answers

Summary of Contents for RMG GSM RF WLCI

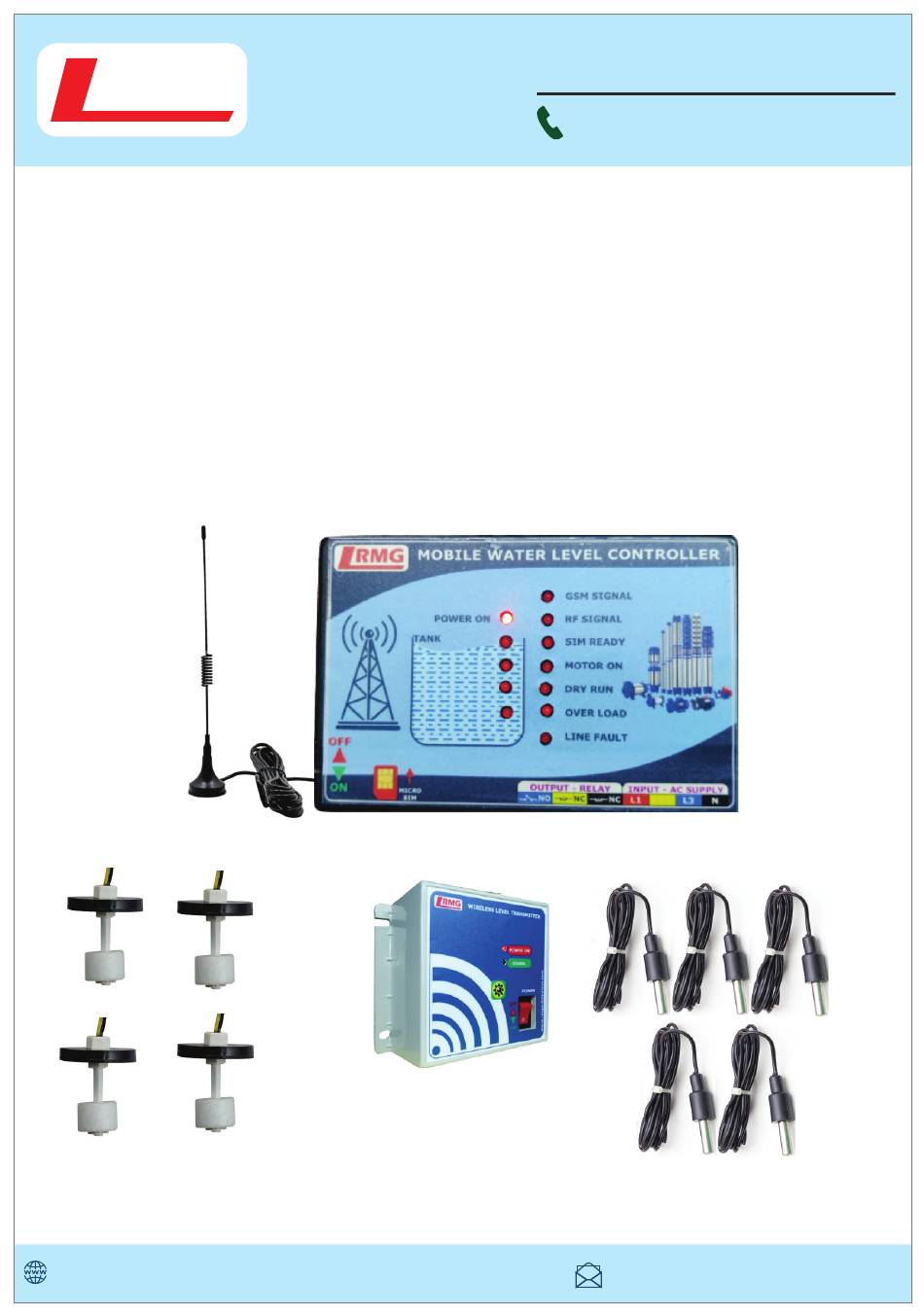

  • Page 1 RMG AUTOMATION +91 9940594413 GSM+RF Complete Wireless Mobile Water Level Controller with Indicator for Overhead Tank Model : GSM_RF_WLCI User Manual http://rmgautomation.com rmgworld@hotmail.com...
  • Page 2 1. INTRODUCTION Our regular GSM mobile motor controllers had helped so many farmers and agriculturists so far. It gives us immense pleasure when they call us and thank us for such a lovely solution. We are very much motivated by their positive feedback. We realised that few customers have requirements to show the levels of tank along with tank control function.So a new variant GSM is being introduced for our customers.
  • Page 3: Tools Required

    3. TOOLS REQUIRED 3 pair or 6 core communication Screws for mounting units on wall Ÿ Ÿ cable. Line tester Ÿ Drilling Machine Wire stripper, Ÿ Ÿ Simple hammer 1.5Sq.mm Wire for power Ÿ Ÿ Wooden gattas connections Ÿ connections Ÿ...
  • Page 4 AC230V STARTER COIL Remove this wire R Y B 1Φ motor MOTOR Figure3: 1Φ Starter Figure4: CT Connection water T4 100% (Green& Black) Inlet water Yellow )100% T3 75% (Yellow & Black) Inlet Orange )75% T2 50% (Orange & Black) T1 25% (Red &...
  • Page 5: Operating Procedure

    5. OPERATING PROCEDURE Switch ON the controller using on/off switch of the controller. Ÿ Power ON LED lights up. Ÿ GSM Signal LED blinks every one second trying to get connected to the Ÿ network. Further, it blinks every 3 seconds ensuring that the GSM unit has been connected to the network.
  • Page 6: List Of Commands

    Switch ON Power transmitter, now POWER ON LED will glow. RF SIGNAL Ÿ LEDs in both GSM unit and Transmitter unit blinks in every 16 seconds conrming that proper communication is established. Depending upon the water levels in tank, the level indication LEDs are ON. Ÿ...
  • Page 7 It Enables AUTO ON operation. It will Switch ON the motor pump when the power resumes. Activates for ANY USERS Activates for REG. USERS It disables the AUTO REPL Y SMS facility It enables the AUTO REPL Y SMS facility It gives the registered users list.
  • Page 8 ULXX UL 05 It helps to enter the underload current setting manually. Eg. 5 Amps is set as Underload Current STX- ST1- It helps to schedule the ON time and HH:MM,HH: 06:00,06:30 OFF time. Totally 5 slots can be ST2- scheduled.
  • Page 9: Trouble Shooting Methods

    6. TROUBLE SHOOTING METHODS Error Solutions Power fail a. Check whether input supply is correctly given. b. Check whether the GSM power switch position is “ON” Check fuse is in good condition. If fuse is failed or burnt replace it with 300 Milliamps. Don't use more than that. Motor not Start Relay: switching...
  • Page 10 No communication Check whether any obstrucles are there in between controller between transmitter and receiver units like large and transmitter trees, buildings etc (repeaters can be added if necessary) Tank level indicator If one or all the level indicator LEDs are not LEDs are off glowing, a.
