1.3.2 VCI module (Only for Commercial Vehicle Configuration)

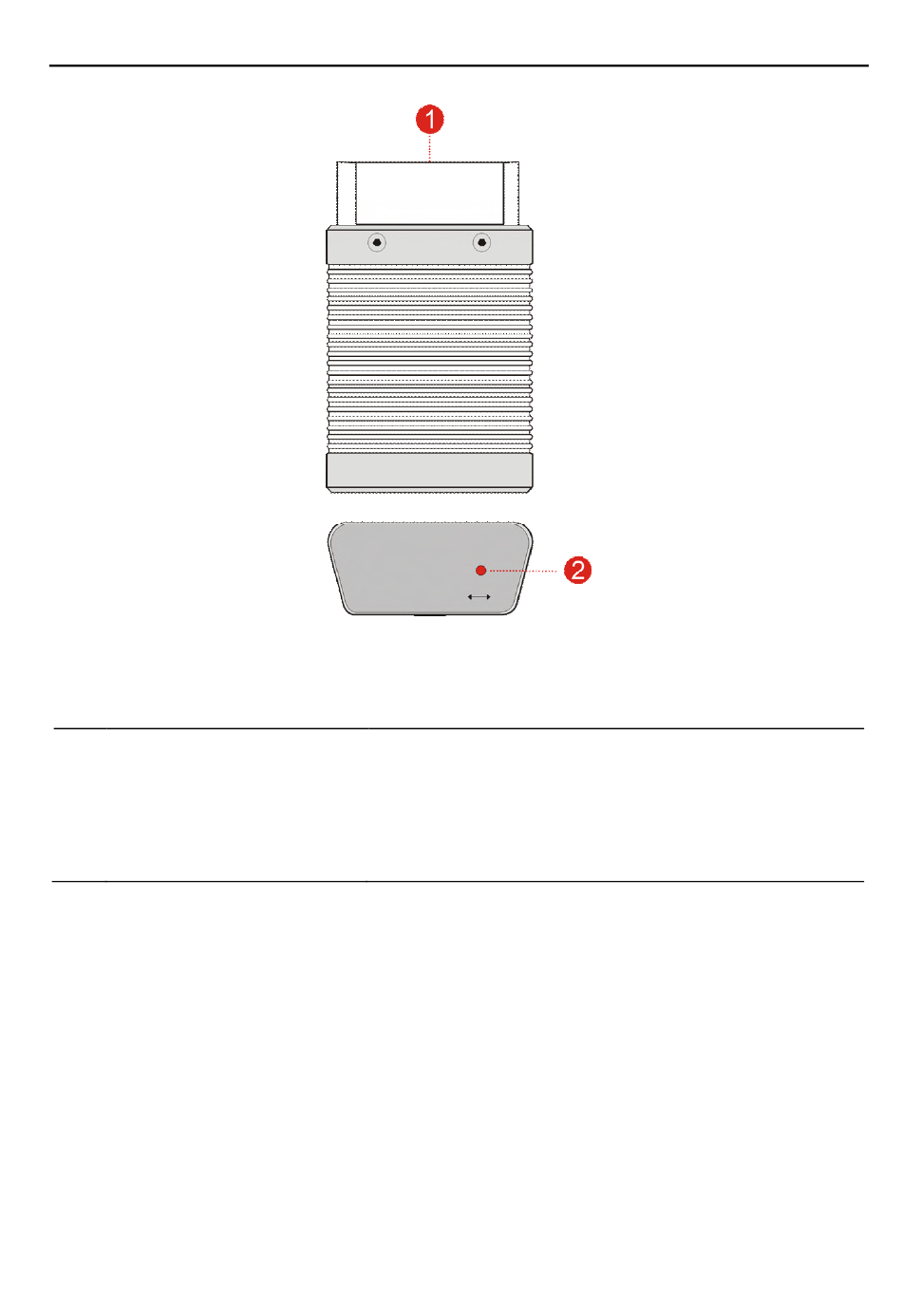

Compatible with commercial & passenger vehicles, the VCI module works as a
vehicle communication interface device. It is used to read the vehicle data and
then send it to the tablet via Bluetooth/Wi-Fi communication. The LED indicators
enable you to easily identify the working status of the module.
To connect on vehicle's OBD II DLC.
 Illuminates red when the VCI is connected to
the vehicle's DLC.
 Blue indicates the VCI is working in wireless
(BT) communication mode.
