DASH & CAPTURE CAM
BEON1BK
User Manual
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the beon+ and is the answer not in the manual?

Questions and answers

Harry Hooven
July 21, 2025

It willl not run on batteries even though they are charged, how can I reset turning on the camera, using the batteries

Subscribe to Our Youtube Channel

Summary of Contents for Yada beon+

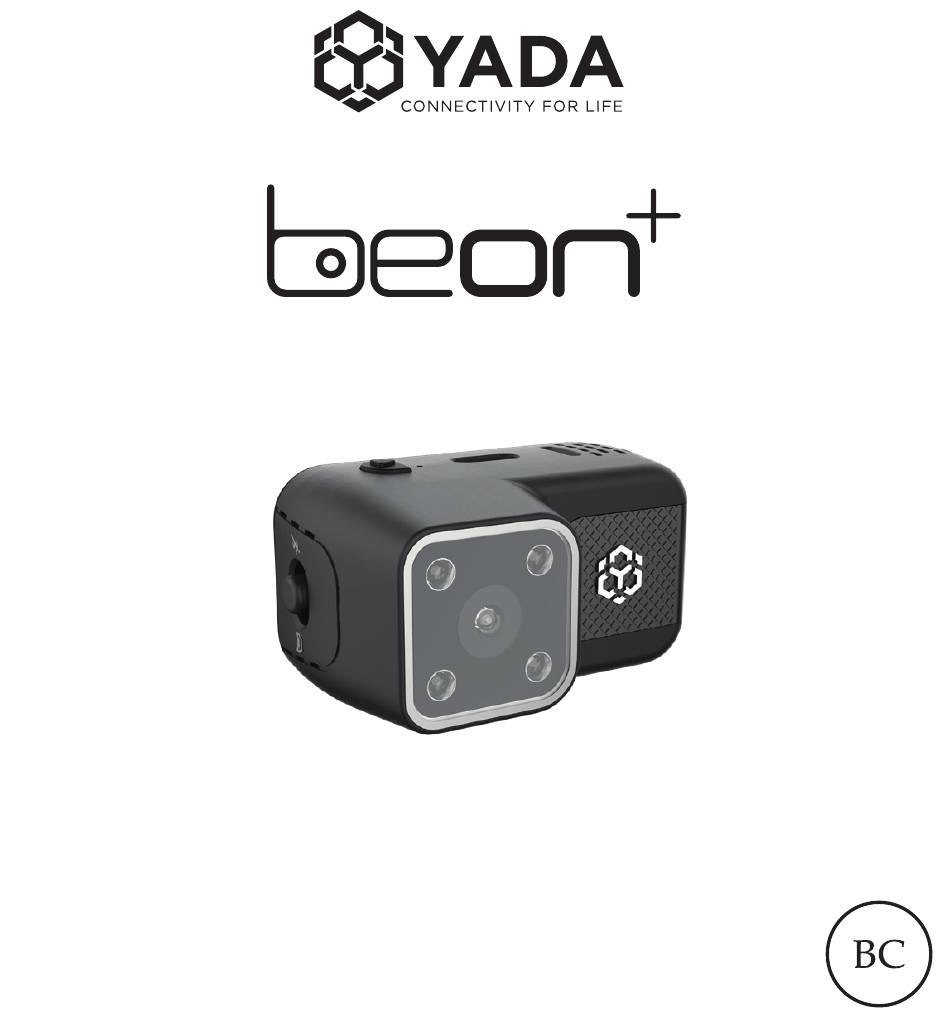

  • Page 1 DASH & CAPTURE CAM BEON1BK User Manual Important, retain for future reference: Read carefully...
  • Page 2: Mounting The Camera

    QUICK INSTALLATION GUIDE Before you begin the installation, please gather these items. 1. Mounting the Camera Clip Mount: MicroSD Card (Factory-Installed)
  • Page 3: Connecting To Power

    Windshield Mount: Recommended mounting position 2. Connecting to Power...
  • Page 4: Product Specifications

    If you require assistance with camera installation, please feel free to either consult an experienced technician or reach out to YADA customer support at 1.866.294.9244. BEFORE using the camera, please read the safety information in this manual, and always follow the guidelines outlined in it while using the product.
  • Page 5: Package Contents

    PACKAGE CONTENTS 1. 1 x YADA BEON PLUS 2. 1 x Back Clip Bracket 3. 1 x 3M VHB™ Windshield Mount with 12/24V Power Adapter 4. 1 x Adhesive Film 5. 1 x 16GB MicroSD Card (Factory-installed, replaceable) 6. 1 x Instruction Manual...
  • Page 6: Product Overview

    PRODUCT OVERVIEW LED Indicator Power Input Function Button Capture/Dash Mode Switch Infrared Sensors Display Screen Camera Lens Speaker MicroSD Card Slot Function Buttons (MicroSD Card Factory-Installed)
  • Page 7: Controlling The Camera

    CONTROLLING THE CAMERA - Menu / Navigation UP / Audio Recording ON/OFF / Rewind (click once) - Delete (press & hold) Top View - Capture Camera Mode (toggle up) - Dash Camera Mode (toggle down) Side View - Lock Video / Navigation DOWN / Fast Forward (click once) - Switch between Video / Camera Mode / Return (press &...
  • Page 8: Installing The Camera

    DIMENSIONS 1.37” / 34.77mm 2.15” / 54.55mm 1.22” / 31.14mm INSTALLING THE CAMERA Clip Mount: Insert the camera into the back clip bracket and push it all the way in until you hear a “click”. MicroSD Card (Factory-Installed)
  • Page 9: Windshield Mount

    Clip the camera onto your clothing, bag, or any suitable object. Make sure it is secure and won’t easily detach during use. NOTE: The camera is not designed for use in wet conditions, such as rain or snow. Windshield Mount: 1.
  • Page 10 2. Mount the camera onto the windshield. You can power on the camera and view the live screen to find the optimal mounting position. - Apply the adhesive film onto the cleaned windshield and remove the protective film. Recommended - Peel off the 3M VHB™ tape mounting position backer from the windshield mount and affix the camera to...
  • Page 11: Initial Setup

    Set the date & time before using the camera. The date stamps that appear on all future recordings will follow this setting. You may also sync the date & time to your phone by connecting the camera to the YADA Drive APP. Switching Modes The camera features two modes: Capture Camera Mode and Dash Camera Mode.
  • Page 12 Capture Camera Mode Capture Camera Mode lets you record on-the-go without needing to connect the camera to a power source. In this mode, the camera runs on its internal battery. Please ensure the camera is fully charged. Apply configuration and settings to the camera using the 3 function buttons.
  • Page 13 • Click to start an emergency video recording. The footage will be ➌ stored in the “Event” folder. Alternatively, use the voice command “Save video” (refer to page 16). • Press and hold when recording stopped to switch to camera mode. ➌...
  • Page 14 1. Video Mode • The camera will begin recording automatically once it is powered on. You may also click to start/stop recording manually. ➋ • By default, videos are recorded in 1-minute segments and saved onto the MicroSD card. When the memory reaches capacity, new videos will overwrite the old ones.
  • Page 15: Save Video

    Simply say the command, and let BEON PLUS do it for you. For example, just say: OK, YADA Save video 1. Say “OK, YADA” to activate voice control. The camera beeps and starts listening for a command.
  • Page 16 2. Say a command. Just Say BEON PLUS Will “Save video” Initiate and lock the current recording only available in video mode “Take a photo” Take a single photo or a burst of photos - In camera mode, if burst photo is enabled (refer to page20), the camera will capture multiple photos in quick succession.
  • Page 17 Gallery Refer to the section below for the functions of each button under Gallery. ➊ Behaviors Button Click Once Press & Hold Menu *when recording stopped Delete ➊ Navigation UP / Rewind OK / Play / Power ON/OFF ➋ Pause Navigation ➋...
  • Page 18 • The gallery organizes your files by type: “Event” for videos triggered manually, by G-Sensor, or by voice control, “Dash Video” for Dash Camera Mode recordings, “Action Video” for Capture Camera Mode recordings, and “Photo” for all captured photos. • Click to access the folder of ➋...
  • Page 19 Erase Files • In previews, press and hold ➊ delete the selected file. • Click to confirm the ➌ ➋ erase. • Press and hold to return to ➌ folder selection. Settings 1. Video Setting Feature Parameters Applicable Mode Capture Dash ✔...
  • Page 20: Camera Setting

    2. Camera Setting Feature Parameters Applicable Mode Camera ✔ Resolution 12M (4032x3024), 10M (3648x2736) or 8M (3264x2448). ✔ Burst Photo ON or OFF. (Feature only available in camera mode.) ✔ Date Stamp ON or OFF. 3. System Setting Feature Parameters Applicable Mode Capture Dash...
  • Page 21: Downloading The App

    Regulatory Info Show regulation related information. DOWNLOADING THE APP The auto-sync feature in the YADA Drive APP allows you to YADA Drive 1) Synchronize the camera’s time with your phone’s time, 2) Manage the camera’s functions from your phone, and 3) View and download recorded videos.
  • Page 22: Setting Up The App

    SETTING UP THE APP Auto-sync with the Camera 1. Open the camera’s menu and navigate to “System Setting”. 2. Go to “WiFi” and turn it on. Before Connecting: • If your vehicle has wireless Apple CarPlay or wireless Android Auto (the wired version is fine), please temporarily disconnect your phone from them, as they may hinder the connection.
  • Page 23 5. Run the YADA Drive APP. Click “Allow” in the pop-up message when prompted to allow the APP to access your location. 6. Select the “BEON™” category. 7. Select BEON™ and click “Set Up Device”. 8. Once connected, you will have...
  • Page 24 3. Please make sure Bluetooth, Location Services and Local Network Access are enabled on your device. 4. Run the YADA Drive APP and select the “BEON™” category. 5. Select BEON™ and click “Set Up Device”. 6. Click to go to APP permissions setting page.
  • Page 25 9. Connect to “YADA_BEON02_1080P_xxxxxx” with the default password “12345678”. 10. Click “YADA Drive” to return to the APP. 11. Once connected, you will have the ability to view the live feed from the camera through the APP. NOTE: For older iPhones, you may need to temporarily switch off DATA to access this feature.
  • Page 26: Wifi Connection Troubleshooting

    WIFI CONNECTION TROUBLESHOOTING If you’re having trouble connecting, please follow these steps: 1) Disconnect wireless Apple CarPlay / Android Auto (not needed for wired). 2) Temporarily enable Airplane Mode. In WiFi setting, connect to the camera’s WiFi network using password “12345678”. 3) Return to the APP and allow all permissions when prompted.
  • Page 27: Additional Features

    ADDITIONAL FEATURES Automatic ON / OFF When the camera is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the camera will stop recording and power off automatically. Dash Cam / Capture Cam 2-in-1 The mode-switching feature allows smooth transitions between Capture Camera Mode and Dash Camera Mode, offering the versatility to record...
  • Page 28: Charging The Camera

    CHARGING THE CAMERA USB-A to USB-C Charging Cable (not included) 1. Plug the USB-A end of the charging cable into a USB-A port on a computer or wall adapter (not included). 2. Connect the USB-C end of the charging cable to the USB-C input port on the camera.
  • Page 29 Setting – Format). 3) Problem: Voice control is unresponsive. Solution: Please minimize background noise that might interfere with voice recognition. After saying the wake word “OK, YADA”, listen for a beep to confirm the camera is ready for your command.
  • Page 30: Safety Information

    SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12/24V cigarette lighter adapter for Model BEON1BK. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow. 4.
  • Page 31 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • Never depend on the BEON PLUS camera entirely when engaging in activities such as driving or outdoor pursuits.
  • Page 32 • There is a plastic cover over the BEON PLUS camera. Do not scratch the cover when cleaning dirt or snow from it. • If the temperature changes rapidly, the system may not operate normally. • When strong light directly enters a camera, objects may not be displayed clearly.
  • Page 33: Maintenance And Warranty

    YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above.
  • Page 34 Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF...
  • Page 35 YADA and/or its affiliates are not responsible for a user’s intended or actual use of the BEON PLUS camera. In no event shall YADA and/ or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or otherwise) incurred in connection with the BEON PLUS camera, including but not limited to damaged property, personal injury and/or loss of life.
  • Page 36: General Information

    Customer Service/Contact IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT YADA DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject...
  • Page 37 Android Auto and Android are trademarks of Google Inc. Apple CarPlay, iPhone, iPad, Mac and iPod touch are trademarks of Apple Inc BEON PLUS Dash & Capture Cam BEON1BK Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1.866.294.9244...
  • Page 39 Product code / Code de produit / Código del producto : BEON1BK Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements. Enregistrez ce produit dans les 30 jours suivant l’achat pour recevoir une couverture supplémentaire de 1 AN (au-delà...
  • Page 40 CONNECT @letsyada WITH US 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com © 2025 ADC Solutions Auto, LLC. www.letsyada.com ML-BEON1BKE_V1...
