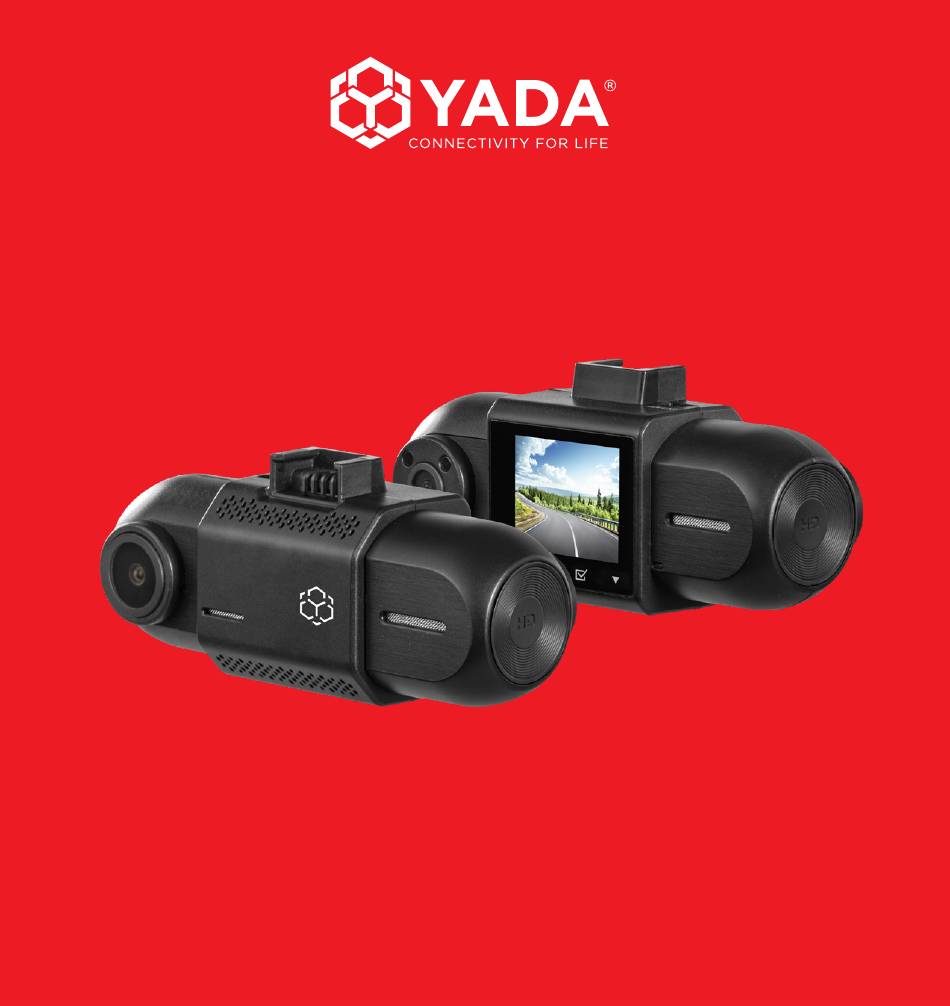

- Page 1 DUAL-1080 P ROADCAM BT58190 User Manual Important, retain for future reference: Read carefully...
- Page 2 QUICK INSTALLATION GUIDE Before you begin... Gather these items. 1. Mount the Roadcam Mount the Roadcam on the windshield.
- Page 3 2. Insert the MicroSD Card 3. Connect to Power...
- Page 4 Consult an experienced technician if you are not comfortable installing the product. You can also contact YADA at 1.866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the Dual-1080P Roadcam.
-
Page 5: Package Contents
PACKAGE CONTENTS 1. 1 x Dual-1080P Roadcam 2. 1 x Windshield Mount 3. 1 x 12V/24V Power Adapter 4. 1 x 16GB MicroSD Card... -
Page 6: Product Specifications
PRODUCT SPECIFICATIONS Display: 1.5 inch display Front and Rear Lenses: 120 degrees diagonal Video Resolution: 1080P / 25 FPS Circular Video: Seamless loop recording Memory Card: MicroSD (maximum support 32GB) Microphone: Supported Built-in Audio: Supported Operating Temperature: 14°F~140°F (-10°C~60°C) Operating Voltage: Cigarette Charger - DC 12/24V / DC 5V (Mini-USB) Battery: Built-in 300 mAh li-ion battery... -
Page 7: Product Overview
PRODUCT OVERVIEW Infrared LEDs Speaker LED Indicator Rear Camera Lens LCD Screen Mount Socket Mini-USB Power Port Front Camera Lens Speaker... -
Page 8: Camera Controls
CAMERA CONTROLS Up Navigation Button Menu / Mode Button Power / OK Button Down Navigation Button Power Reset Hole Microphone MicroSD Card Slot CAMERA DIMENSIONS 3.98” / 101mm 1.46” / 37mm 1.86” / 47mm... -
Page 9: Installation
INSTALLATION Insert the windshield mount to the socket on the top of the Roadcam. Peel off the protective sticker from the LCD screen. Plug the Mini-USB power cable into the DC input port. Note: Power on and test camera before mounting. - Page 10 INSTALLATION Recommended mounting position Mount the Roadcam on the windshield. You can turn on the Roadcam and check the live screen to determine the most suitable mounting position. Warning: Do not install the product in a location where it can obstruct the driver’s field of vision. Adjust the rear camera lens angle to get the best interior view.
- Page 11 INSTALLATION Route and hide the power cable in the headliner and pillars in your vehicle. Plug the cigarette charger cable into your vehicle’s 12/24V DC outlet. Turn the adjustment knob clockwise while pressing the windshield mount onto the glass to secure the Roadcam on the windshield. You are all set!
-
Page 12: Configuration & Menu Settings
CONFIGURATION & MENU SETTINGS Initial Setup Set the date & time before installing and using the Roadcam. This date & time is the time stamp for all recorded media files and digital clock. Switching Display Modes Press to switch between different display modes: front camera > rear camera >... -
Page 13: Camera Mode
Camera Mode • Press once during video recording to take one photo from the front and rear camera. Playback Mode • Press and hold to enter the media gallery. • Press to cycle through all 8 categories and press to enter that category: Front camera video Front camera locked video... - Page 14 Beep Sound ON or OFF. Record Audio ON or OFF. Date/Time Set the date and time. Language Supports English only. Frequency 50Hz or 60Hz. Screen Save 5 minutes, 3 minutes, 1 minute or OFF. (Screen will dim to a digital clock interface after the specified time you select.
-
Page 15: Additional Features
ADDITIONAL FEATURES Automatic ON / OFF When the Roadcam is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the Roadcam will stop recording and turn off automatically. Gravity Induction Recording Protection System In a vehicle collision, the Roadcam will lock the video of the accident and save it as a special image. -
Page 16: Battery Indications
Battery Indications: Please refer to the diagram below for battery indication. Fully charged Battery low Battery is empty Charging Note: The Roadcam is designed to be powered on while the vehicle is running. The built-in battery is only designed for storing documents when the vehicle’s engine is off. - Page 17 Help / FAQs 1) Problem: The Roadcam is unable to take pictures and record videos. Solution: Check if the MicroSD card has enough space and lock it. 2) Problem: The Roadcam stops automatically when it is recording a video. Solution: Because HD video data takes a lot of space, please use a high-speed MicroSD card compatible with SDHC, high-speed MicroSD cards will have a U1 logo.
-
Page 18: Safety Information
1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12V/24V cigarette lighter adapter for Model BT58190. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow. - Page 19 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The Dual-1080P Roadcam is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
- Page 20 • There is a plastic cover over the Dual-1080P Roadcam. Do not scratch the cover when cleaning dirt or snow from it. • If the temperature changes rapidly, the system may not operate normally. • When strong light directly enters a camera, objects may not be displayed clearly.
-
Page 21: Maintenance And Warranty
YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above. - Page 22 4. The replacement of parts is excluded from the warranty when replacement is necessary due to normal wear and tear. 5. Repair or replacement parts supplied by YADA under this warranty are protected only for the unexpired portion of the original warranty.
- Page 23 Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF...
-
Page 24: General Information
Dual-1080P Roadcam, including but not limited to damaged property, personal injury and/or loss of life. Neither shall YADA and/or its affiliates have any liability for any decision, action or inaction taken by any person in reliance on the Dual-1080P Roadcam, or for any delays, inaccuracies and /or errors in connection with the Dual-1080P Roadcam and its functioning. - Page 25 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment.
- Page 26 Dual-1080P Roadcam BT58190 Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1.866.294.9244...
- Page 27 Product code / Code de produit / Código del producto : BT58190 Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements.
- Page 28 CONNECT @letsyada WITH US 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com © 2021 ADC Solutions Auto, LLC. www.letsyada.com ML-58190_V1...
