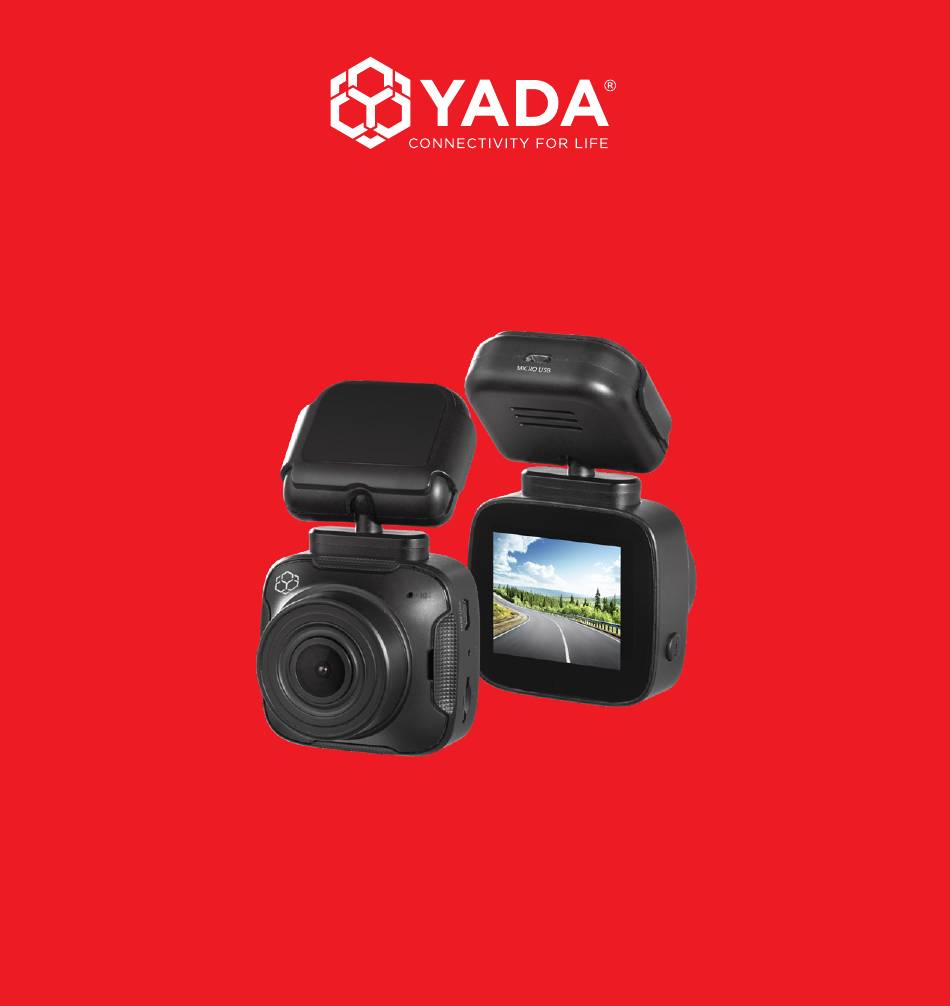

1080 P ROADCAM
App-Controlled
BT58187
User Manual
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT58187 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yada BT58187

  • Page 1 1080 P ROADCAM App-Controlled BT58187 User Manual Important, retain for future reference: Read carefully...
  • Page 2 QUICK INSTALLATION GUIDE Before you begin... Gather these items. TF Card 8 GB 1. Mount the Roadcam...
  • Page 3: Connect To Power

    2. Connect to Power...
  • Page 4: Product Specifications

    Consult an experienced technician if you are not comfortable installing the product. You can also contact YADA at 1.866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the App-Controlled 1080P Roadcam.
  • Page 5: Package Contents

    PACKAGE CONTENTS 1. 1 x 1080P Roadcam 2. 1 x 3M™ VHB Windshield Mount 3. 1 x 12V/24V Power Adapter 4. 1 x 8GB MicroSD Card TF Card 8 GB...
  • Page 6: Product Overview

    PRODUCT OVERVIEW Micro USB Power Port LCD Screen Power Button LED Indicator Microphone Mini-USB Power Port Power Reset Hole Speaker MicroSD Card Slot Camera Lens...
  • Page 7: Camera Controls

    CAMERA CONTROLS Menu / Mode / Lock Button Up Navigation / WiFi Button OK / Record Button Down Navigation / Microphone On/Off Button CAMERA DIMENSIONS 2.25” / 57mm 1.64” / 42mm 2.09” / 53mm...
  • Page 8: Installation

    INSTALLATION Recommended mounting position Before mounting the Roadcam on the windshield, it is best to determine the best mounting position. You can turn on the Roadcam and check the live screen to determine the most suitable mounting position. Warning: Do not install the product in a location where it can obstruct the driver’s field of vision.
  • Page 9 INSTALLATION Peel off the 3M™ VHB adhesive tape backer from the windshield mount. Insert the windshield mount on the Roadcam. Attach the Roadcam to the windshield. Power on and test the Roadcam. Adjust the angle of the lens by rotating the Roadcam. Route and hide the power adapter cable in the headliner and pillars in your vehicle.
  • Page 10: Configuration & Menu Settings

    CONFIGURATION & MENU SETTINGS Initial Setup Set the date & time before installing and using the Roadcam. This date & time is the time stamp for all recorded media files and digital clock. Switching Modes Press the M button to cycle through the following modes: video mode > camera mode >...
  • Page 11: Camera Mode

    G-Sensor Setting The Roadcam’s integrated G-Sensor will automatically save and lock the recorded file if activated by an impact event or accident. Select to adjust the G-Sensor sensitivity level, or to turn it on or off. The default setting is low. Camera Mode •...
  • Page 12: Camera Settings

    G-Sensor High, Medium, Low or OFF. License Plate Stamp Enter your vehicle license plate number here. Camera Settings Press and hold the M button on camera mode to bring up the camera settings page. Resolution 12M 4032x3024, 10M 3648x2736, 8M 3264x2448 or 5M 2592x1944.
  • Page 13: Screen Save

    4s and higher, iPad3, with Android™ 5.0 or iPad Mini, iPad Air and higher. the YADA Drive APP. Scan below higher, and iPod touch QR code or search "YADA Drive" Generation in the APP Store or Google Play.
  • Page 14: App Setup

    Roadcam’s WiFi pairing mode. 2. You should see the SSID of the Roadcam. Android device 3. Open the YADA Drive APP and select the Dash Cam category. Select 1080P Roadcam from the list of Dash Cams.
  • Page 15 WiFi settings page. 5. On the WiFi settings page choose SSID “YADA_DVR03_1080P_xxxxxx” and enter password 12345678. 6. Tap on the YADA Drive icon to return to the APP. 7. You should see the live view of the Roadcam on the main interface.
  • Page 16: Additional Features

    ADDITIONAL FEATURES Automatic ON / OFF When the Roadcam is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the Roadcam will stop recording and turn off automatically. Gravity Induction Recording Protection System In a vehicle collision, the Roadcam will lock the video of the accident and save it as a special image.
  • Page 17: Battery Indications

    Battery Indications: Please refer to the diagram below for the battery indication. Fully charged Battery low Battery is empty Charging Note: The Roadcam is designed to be powered on while the vehicle is running. The built-in battery is only designed for storing documents when the vehicle’s engine is off.
  • Page 18 Help / FAQs 1) Problem: The Roadcam is unable to take pictures and record videos. Solution: Check if the MicroSD card has enough space and lock it. 2) Problem: The Roadcam stops automatically when it is recording a video. Solution: Because HD video data takes a lot of space, please use a high-speed MicroSD card compatible with SDHC, high-speed MicroSD cards will have a C10 logo.
  • Page 19: Safety Information

    1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12V/24V cigarette lighter adapter for Model BT58187. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow.
  • Page 20 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The App-Controlled 1080P Roadcam is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
  • Page 21 • Never allow children to play with the device. Small parts may be a choking hazard. • There is a plastic cover over the App-Controlled 1080P Roadcam. Do not scratch the cover when cleaning dirt or snow from it. • If the temperature changes rapidly, the system may not operate normally. •...
  • Page 22: Maintenance And Warranty

    YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above.
  • Page 23 4. The replacement of parts is excluded from the warranty when replacement is necessary due to normal wear and tear. 5. Repair or replacement parts supplied by YADA under this warranty are protected only for the unexpired portion of the original warranty.
  • Page 24 Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF...
  • Page 25: General Information

    App-Controlled 1080P Roadcam, including but not limited to damaged property, personal injury and/or loss of life. Neither shall YADA and/or its affiliates have any liability for any decision, action or inaction taken by any person in reliance on...
  • Page 26 (DEHP) and Diisononyl Phthalate (DINP), which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. App-Controlled 1080P Roadcam BT58187 3M™ VHB is a trademark of 3M Company. Responsible Party: YADA Android is a trademark of Google Inc.
  • Page 27 Product code / Code de produit / Código del producto : BT58187 Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements.
  • Page 28 CONNECT @letsyada WITH US 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com © 2021 ADC Solutions Auto, LLC. www.letsyada.com ML-58187_V1...
