BT57706
User Manual
Important, retain for future reference:
Read carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT57706 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yada BT57706

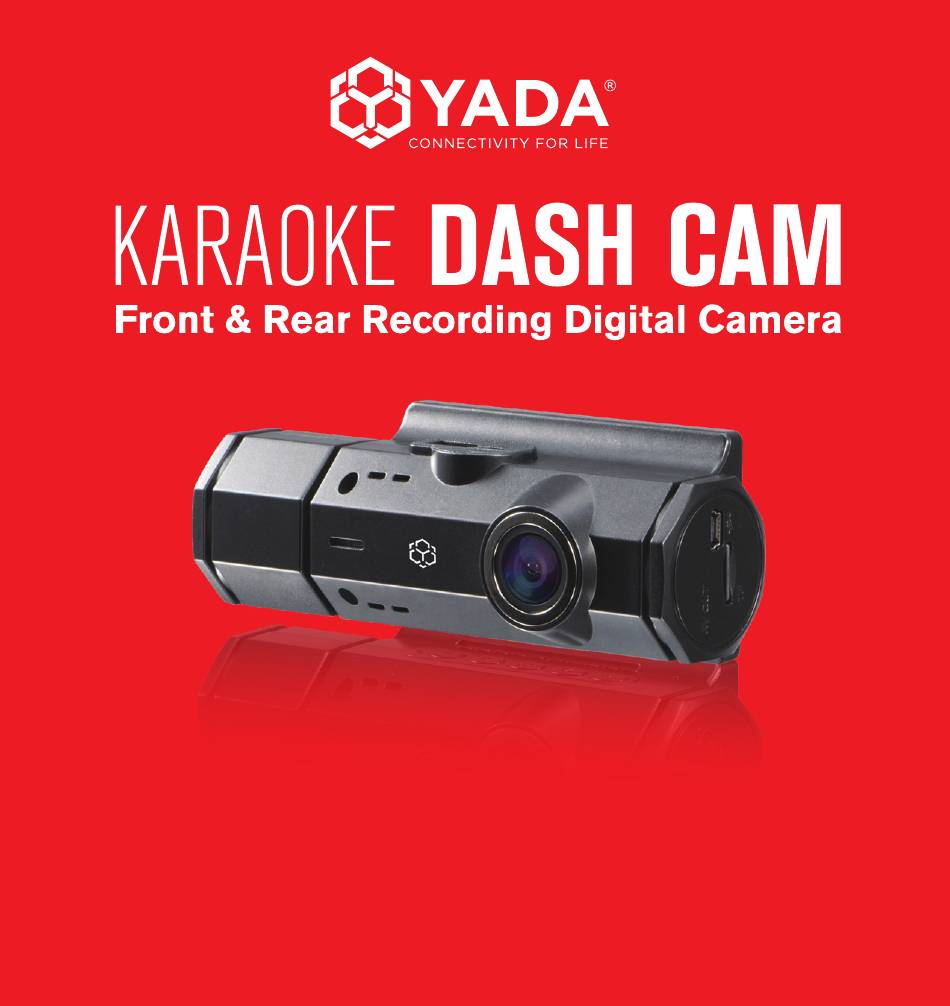

  • Page 1 BT57706 User Manual Important, retain for future reference: Read carefully...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..............................3 2. Package Contents ..........................4 3. Product Specifications ........................5 4. Dash Cam Modes & LED Indicators ................... 5 5. Product Overview ..........................6 6. Camera Controls ............................. 7 7. Camera Dimensions ..........................7 8.
  • Page 3: Introduction

    Consult an experienced technician if you are not comfortable installing the product. You can also contact YADA at 866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the Karaoke Dash Cam.
  • Page 4: Package Contents

    Important, retain for future reference: Read carefully Read carefully Product code / Code de produit / C—digo del producto : BT57706 CO NNECTIVITY F OR LIFE Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements.
  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS Display: 2.7 inch HD display Lens: Front lens: 140 degrees Rear lens: 120 degrees Video resolution: Front lens 1080P Rear lens 720P Circular video: Seamless circular video without missing seconds Memory card: MicroSD (maximum support 32GB) Microphone: Supported Built in audio: Supported Operating Voltage:...
  • Page 6: Product Overview

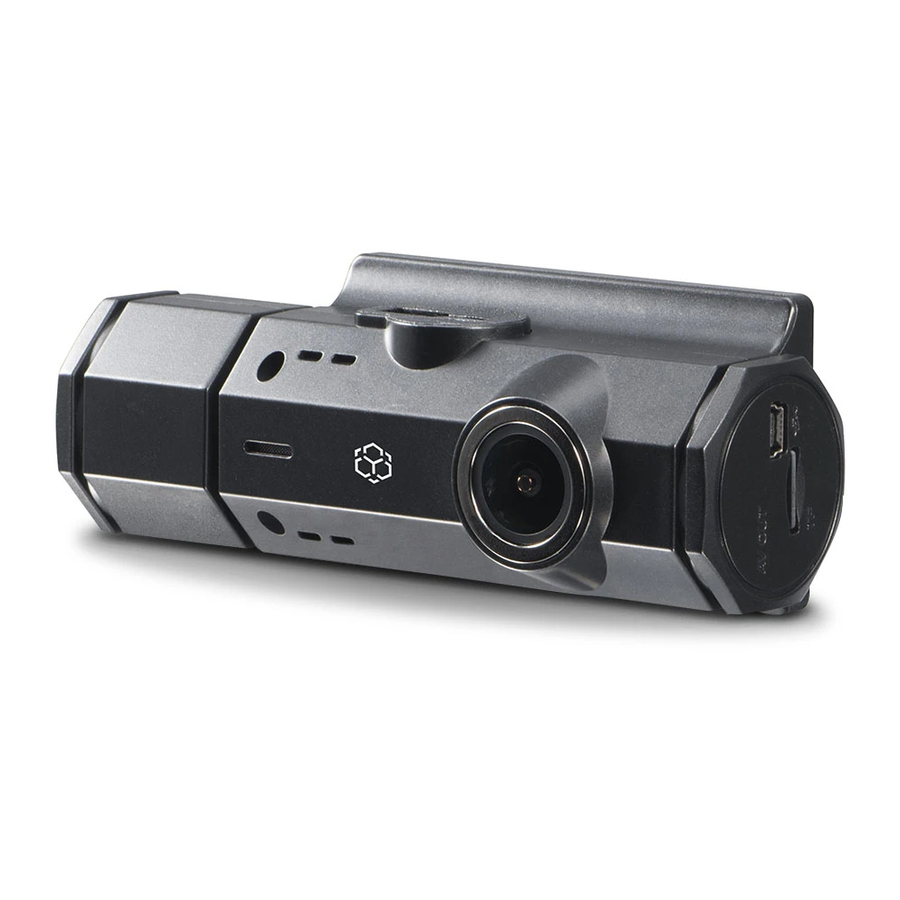

    PRODUCT OVERVIEW Front View Mounting Bracket Slot USB Power Port MicroSD Card Slot Front Camera Lens Speaker Rear View Rear Camera Lens LCD Screen...
  • Page 7: Camera Controls

    CAMERA CONTROLS OK Button Menu Button Power Button Power Reset Hole Down Navigation Button Up Navigation Button Microphone CAMERA DIMENSIONS 4.52” / 115mm 1.57” / 40mm 1.77” / 45mm...
  • Page 8: Installation

    INSTALLATION MicroSD Card (Pre-installed) Insert the mounting bracket to the top of the Dash Cam and slide to the left. Peel off the 3M VHB™ adhesive tape.
  • Page 9 INSTALLATION Plug the power cable into the DC-In socket of the Dash Cam. Note: Power on and test camera before mounting. Recommended mounting position Mount the Dash Cam to the windshield. You can turn on the Dash Cam and check the live screen to determine the most suitable mounting position.
  • Page 10 INSTALLATION CONTINUED Route and hide the power cable in the headliner and pillars in your vehicle. Plug the cigarette lighter adapter into your vehicle’s 12/24V DC outlet. Adjust the rear camera lens angle to get the best interior view.
  • Page 11: Configuration & Menu Settings

    CONFIGURATION & MENU SETTINGS Switching views Press the key to cycle through the following views: front view > rear view > dual view with rear view in small picture > dual view with front view in small picture > dual view with split screen. Video mode •...
  • Page 12 G-Sensor Setting: The camera’s integrated G-Sensor will automatically save and lock the recorded file if activated by an impact event or accident. Select the sensitivity of the G-Sensor: Off, Low, Medium, or High. The default sensitivity setting is Medium. Photo mode •...
  • Page 13 Video settings • Press the button when the Dash Cam is recording in video mode in order to stop recording and then press and hold the button to enter video settings. • In the video setting page, press to switch between selections and press to confirm selection.
  • Page 14 Camera settings • Press and hold the button in the photo mode to enter camera settings. • In the camera setting page, press to switch between selections and press to confirm selection. • Resolution: Select between 12M (4032x3024), 10M (3648x2736), 8M (3264x2448), 5M (2592x1944),,3M (2048x1536), 2MHD (1920x1080), 1.3M (1280x960) or VGA (640x480).
  • Page 15 Playback settings • Press and hold the button in the playback mode to enter playback settings. • In the playback setting page, press to switch between selections and press to confirm selection. • Delete: Select to delete the file. • Protect: Select to protect the file from deletion.
  • Page 16 Dash Cam general settings • Press once in either video, camera or playback setting page to enter the general setting pages. • In the general setting pages, press to switch between selections and press to confirm selection. • Parking Monitor: Select the level of sensitivity between High, Medium, Low or Off.
  • Page 17: Special Functional Description

    SPECIAL FUNCTIONAL DESCRIPTION Automatic ON / OFF When the Dash Cam is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the Dash Cam will stop recording and turn off automatically. Gravity induction In case of vehicle collision, the Dash Cam will lock the broken video of the accident and save it as a special image.
  • Page 18 Battery indications: Please refer to the diagram below for battery indication. Fully charged Battery low Battery is empty Charging Note: The Dash Cam is designed to follow the vehicle running for a long time. The built-in battery is only designed for storing documents when the vehicle’s engine is off.
  • Page 19: Troubleshooting

    TROUBLESHOOTING Under normal operation, if there is a problem, please refer to the solutions below. 1) Problem: The Dash Cam is unable to take pictures and record videos. Solution: Check if the MicroSD card has enough space and lock it. 2) Problem: The Dash Cam stops automatically when it is recording a video.
  • Page 20: Safety Information

    1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12V/24V cigarette lighter adapter for Model BT57706. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow.
  • Page 21 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The Karaoke Dash Cam is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle.
  • Page 22 applicable to the device. • Consult local laws and regulations for any restrictions on installation or use. • Never allow children to play with the device. Small parts may be a choking hazard. • There is a plastic cover over the Karaoke Dash Cam. Do not scratch the cover when cleaning dirt or snow from the cover.
  • Page 23: Maintenance & Warranty

    YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above.
  • Page 24 4. The replacement of parts is excluded from the warranty when replacement is necessary due to normal wear and tear. 5. Repair or replacement parts supplied by YADA under this warranty are protected only for the unexpired portion of the original warranty.
  • Page 25 YADA and/or its affiliates are not responsible for a user’s intended or actual use of the Karaoke Dash Cam. In no event shall YADA and/or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or...
  • Page 26: General Information

    Karaoke Dash Cam, including but not limited to damaged property, personal injury and/or loss of life. Neither shall YADA and/or its affiliates have any liability for any decision, action or inaction taken by any person in reliance on the Karaoke Dash Cam, or for any delays, inaccuracies and /or errors in connection with the Karaoke Dash Cam and its functioning.
  • Page 27 State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Karaoke Dash Cam Front & Rear Recording Digital Camera BT57706 Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626...
  • Page 28 CONNECT @letsyada WITH US 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com ©2020 Yada. All rights reserved. www.letsyada.com ML-57706_V1...
