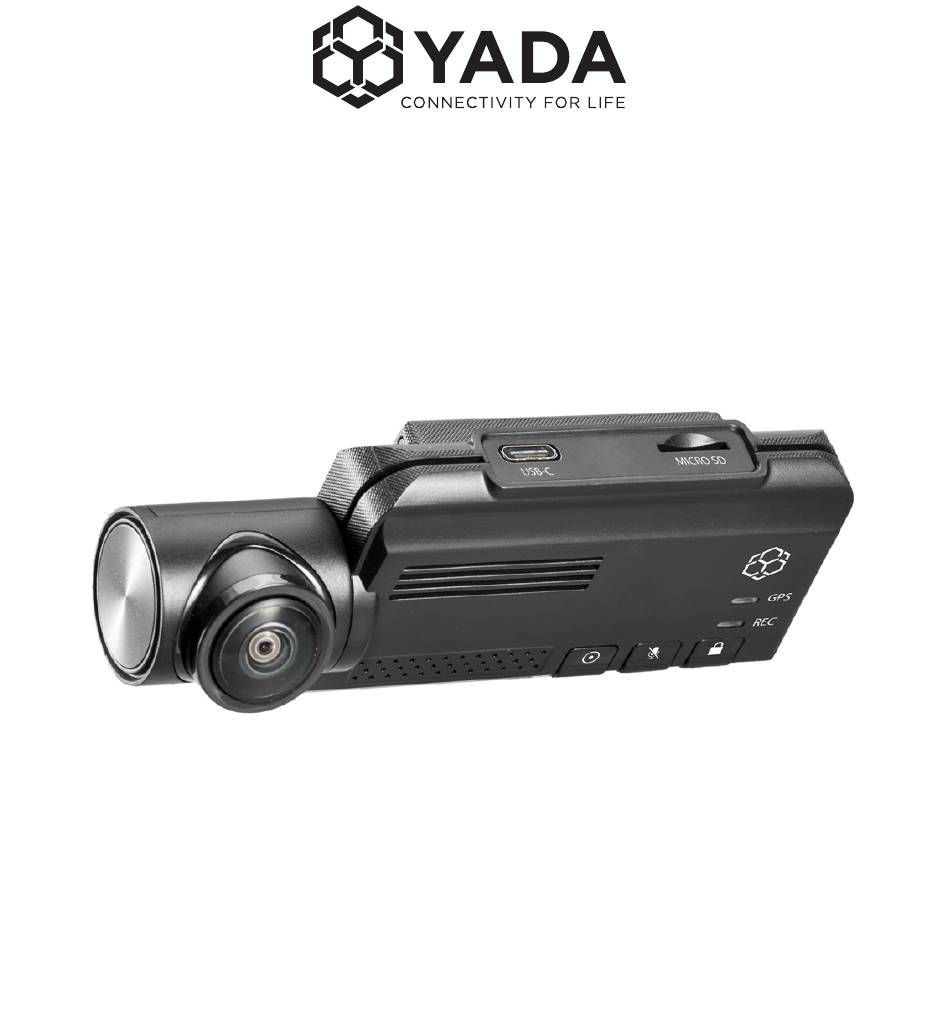

- Page 1 360 2 K ROADCAM APP-Controlled with GPS BT532767 User Manual Important, retain for future reference: Read carefully...
- Page 2 QUICK INSTALLATION GUIDE Before you begin... Gather these items. 1. Mount the Roadcam...
-
Page 3: Connect To Power
2. Connect to Power... -
Page 4: Product Specifications
Consult an experienced technician if you are not comfortable installing the product. You can also contact YADA at 1.866.294.9244 to speak to one of our installation specialists if you have any specific questions regarding the 360 2K Roadcam APP-Controlled with GPS. -
Page 5: Package Contents
PACKAGE CONTENTS 1. 1 x 360 2K Roadcam 2. 1 x Windshield Mount with 3M VHB™ Double-Sided Tape 3. 1 x 12V/24V Power Adapter 4. 1 x 16GB MicroSD Card... -
Page 6: Product Overview

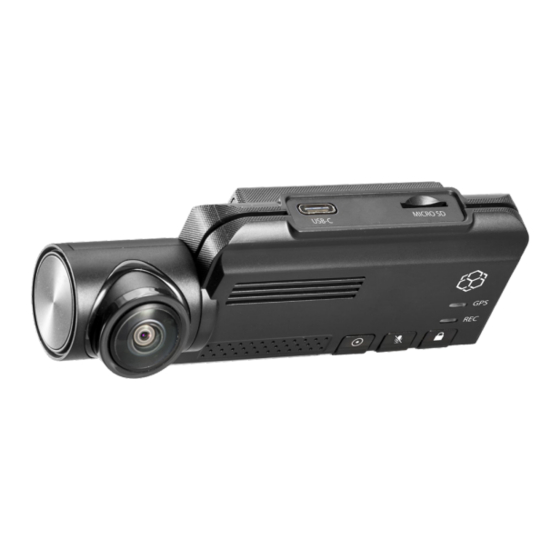

PRODUCT OVERVIEW 1. MicroSD Card Slot 5. Speaker 9. Lock Video Button 2. 3M VHB™ Windshield Mount 6. Microphone 10. GPS Indicator Light 3. Camera Lens 7. Record/Pause Button 11. Recording Indicator Light 4. USB-C Power Port 8. Microphone On/Off Button... -
Page 7: Camera Dimensions
CAMERA DIMENSIONS 1.25” / 32mm 4.4” / 112mm 1.96” / 50mm INSTALLATION Insert the MicroSD card. Insert the windshield mount to the back of the Roadcam. - Page 8 Note: Power on and test camera before mounting. Recommended mounting position Check the live screen on Yada Drive APP and determine the most suitable mounting position. (See page 11 on setting up the APP.). Warning: Do not install the product in a location where it can obstruct...
-
Page 9: Configuration & Menu Settings
INSTALLATION Press the adhesive windshield mount onto the windshield to secure the Roadcam in place. Route and hide the power cable in the headliner and pillars in your vehicle. Plug the cigarette charger cable into your vehicle’s 12/24V DC outlet, you are all set! CONFIGURATION &... -
Page 10: Downloading The App
Android™ 5.0 or using your smartphone with the iPad Mini, iPad Air and higher. YADA Drive APP. Scan the QR code higher, and iPod touch on the right or search "YADA Drive" Generation in the APP Store or Google Play. -
Page 11: App Setup
1. Turn on the power of the Roadcam, it will enter WiFi pairing mode automatically. 2. Launch the YADA Drive APP and tap on the Dash Cam category. 3. Select 360 2K Roadcam from the list of Dash Cams. -
Page 12: Ios Device
On the WiFi settings page choose SSID “YADA_DVR05_2K_XXXXXX” and enter the password. (The default password is 12345678.) 6. Tap on the YADA Drive icon to return to the APP. 7. You should see the live view of the Roadcam. - Page 13 Main Interface Main Menu On-screen Instructions WiFi Setting (iOS only) Microphone On / Off Display Mode Record GPS Signal Video Mode / Camera Mode Home Screen Gallery Display Mode Select from 6 different viewing modes. Rotate the Camera Lens into front facing when switching to Normal 180˚...
- Page 14 Gallery SD CARD tap Tap the icon on the main interface Tap the icon to download the to enter the media gallery. Tap the SD selected file into your smartphone, or tap CARD tap to access the media files icon to delete the file from the stored in the MicroSD card.
- Page 15 GPS Signal Status 1 GPS Signal Status 2 This status indicates GPS receiver This status indicates map tracking is not is waiting for GPS signal when the working. Mobile data must be turned on footage is recorded. GPS trip data will for map tracking to process.
-
Page 16: Additional Features
ADDITIONAL FEATURES Automatic ON / OFF When the Roadcam is connected to the vehicle’s power, it will power on and start recording when the vehicle engine starts. When the engine is off, the Roadcam will stop recording and turn off automatically. Gravity Induction Recording Protection System In a vehicle collision, the Roadcam will lock the video of the accident and save it as a special image. - Page 17 Help / FAQs 1) Problem: The Roadcam is unable to take pictures and record videos. Solution: Check if the MicroSD card has enough space and lock it. 2) Problem: The Roadcam stops automatically when it is recording a video. Solution: Because HD video data takes a lot of space, please use a high-speed MicroSD card compatible with SDHC, high-speed MicroSD cards will have a U1 logo.
-
Page 18: Safety Information
1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions of the 12V/24V cigarette lighter adapter for Model BT532767. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose cigarette lighter adapter to rain, moisture, or snow. - Page 19 WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • Adhere to all applicable traffic laws and motor vehicle regulations applicable to the device. •...
-
Page 20: Maintenance And Warranty
YADA warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, YADA’s liability shall be limited to that set forth in this limited express warranty. This limited express warranty shall be the exclusive remedy of the purchaser and YADA makes no other warranty of any kind aside from the limited express warranty stated above. - Page 21 4. The replacement of parts is excluded from the warranty when replacement is necessary due to normal wear and tear. 5. Repair or replacement parts supplied by YADA under this warranty are protected only for the unexpired portion of the original warranty.
- Page 22 Return Authorization and instruct on how to get a new unit. YADA makes no other warranty of any kind aside from the limited express warranty stated herein. DISCLAIMER OF WARRANTIES, INCLUDING WARRANTY OF...
-
Page 23: General Information
360 2K Roadcam APP-Controlled with GPS. In no event shall YADA and/or its affiliates have any liability for any losses (whether direct or indirect, in contract, tort or otherwise) incurred in connection with the 360 2K Roadcam APP-Controlled with GPS, including but not limited to damaged property, personal injury and/or loss of life. - Page 24 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment.
- Page 25 360 2K Roadcam APP-Controlled with GPS BT532767 Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 1.866.294.9244 3M™ VHB is a trademark of 3M Company. Android is a trademark of Google Inc. iPhone, iPad, Mac and iPod touch are trademarks of Apple Inc.
- Page 27 Product code / Code de produit / Código del producto : BT532767 Register this product within 30 days of purchase to receive one (1) additional year of warranty coverage (beyond the standard 1-year warranty), along with special product offers and announcements.
- Page 28 @letsyada 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | customercare@horizon-brands.com © 2022 ADC Solutions Auto, LLC. www.letsyada.com ML-532767_V1...
