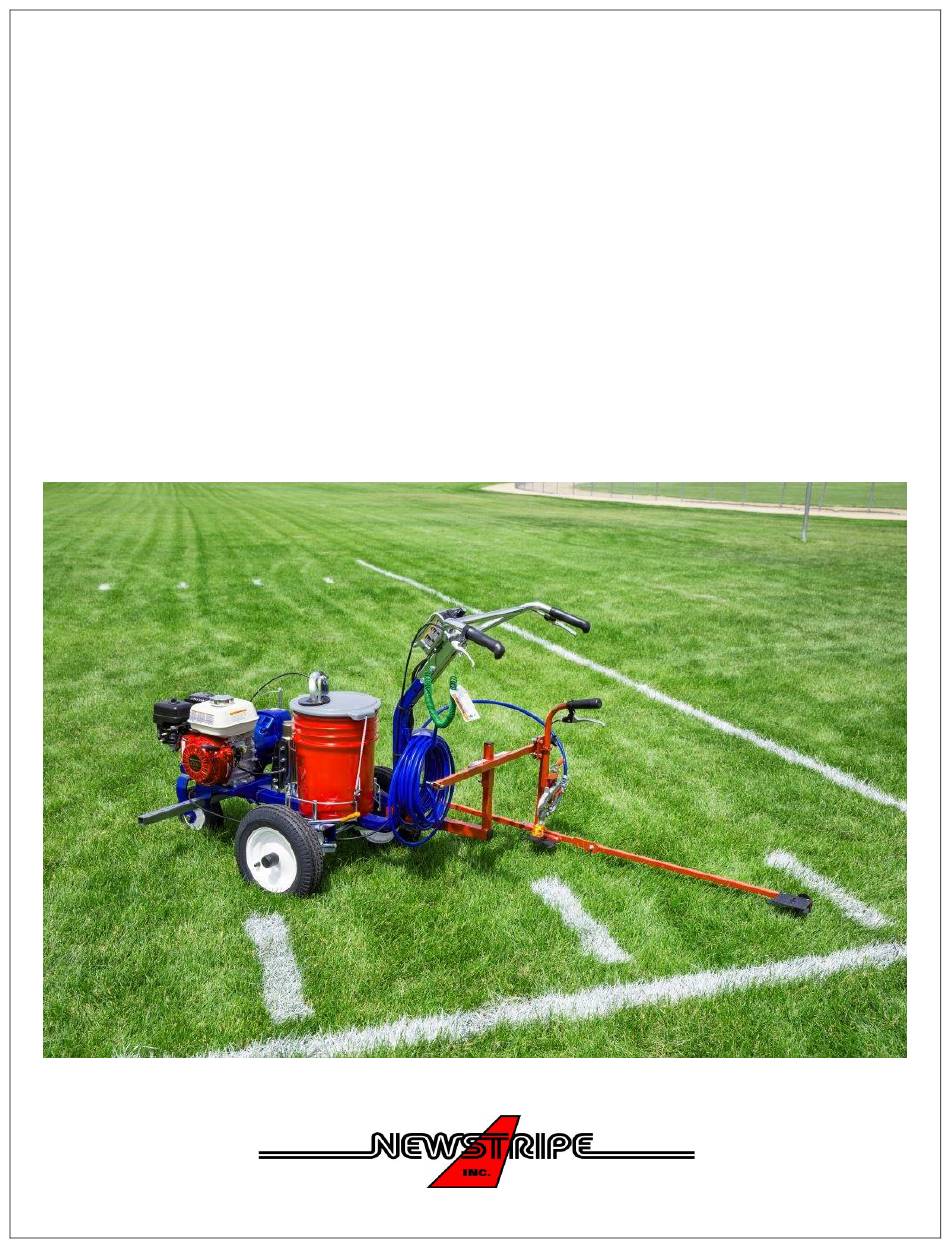

- Page 1 ™ HashMark-Master II 3400 Product Manual For Use With Graco 3400 & S200 High Pressure Airless Machines 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com ™ HashMark-Master II 3400 Manual / 5147.0822...
- Page 2 ™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eye-wear when operating the unit! HashMark-Master II™ 3400 Manual / 5147.0822...
-
Page 3: Table Of Contents
Thank you! And congratulations on your purchase of the HashMark- Parts Breakdown.……….………..Page 2 Master II HP by Newstripe. You can now precisely and accurately layout Assembly & Adjustment..……..Page 3-4 hash marks without the use of stencils or templates! Operation………..………………….Page 5... -
Page 4: Precautionary Warning
™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! PRECAUTIONARY WARNING! Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel, up to and including death! ... -
Page 5: Parts Breakdown
™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! BREAKDOWN PARTS Your package should contain the items pictured. Call 1-800-624-6706 if you are missing any items. Item Description Part Number Hand Grip 10004281 1/4” x 2-1/8” Lynchpin 10004805 Spray Control Lever 10002951... -
Page 6: Assembly & Adjustment
™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! ASSEMBLY & ADJUSTMENT Step 1 Step 2 Rear View Front View Step 2: Slide the riser into the right side of the frame, Step 1: Remove the two rear axle bolts and nuts on the and then reinstall the front axle bolt into the welded nut right side of the machine. - Page 7 ™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! ASSEMBLY & ADJUSTMENT CONTINUED Note: The bolt with jam Step 6 Step 5 nut allows you to adjust the angle of the rear guide tube it will ride above the turf if you have uneven field conditions or need to tip the machine...
-
Page 8: Operation
™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! OPERATION Step 1 Step 2 4” Step 2: Unfold the line guide. For a 4” inset, align the outside edge of the line guide with the sideline. Step 1: Loosen the screws on the carrier and then raise or lower the gun mount assembly until a 4”... -
Page 9: Stowing Procedure
™ HashMark-Master II 3400 ALWAYS wear safety goggles or protective eyewear when operating the unit! STOWING PROCEDURE Step 2 Step 1 Step 1: Remove the spray gun from the HashMark Master and place it back into the gun mount of the machine. Remove the lynchpin and roll the carriage and gun mount assembly off of the rail. -
Page 10: Warranty
The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
