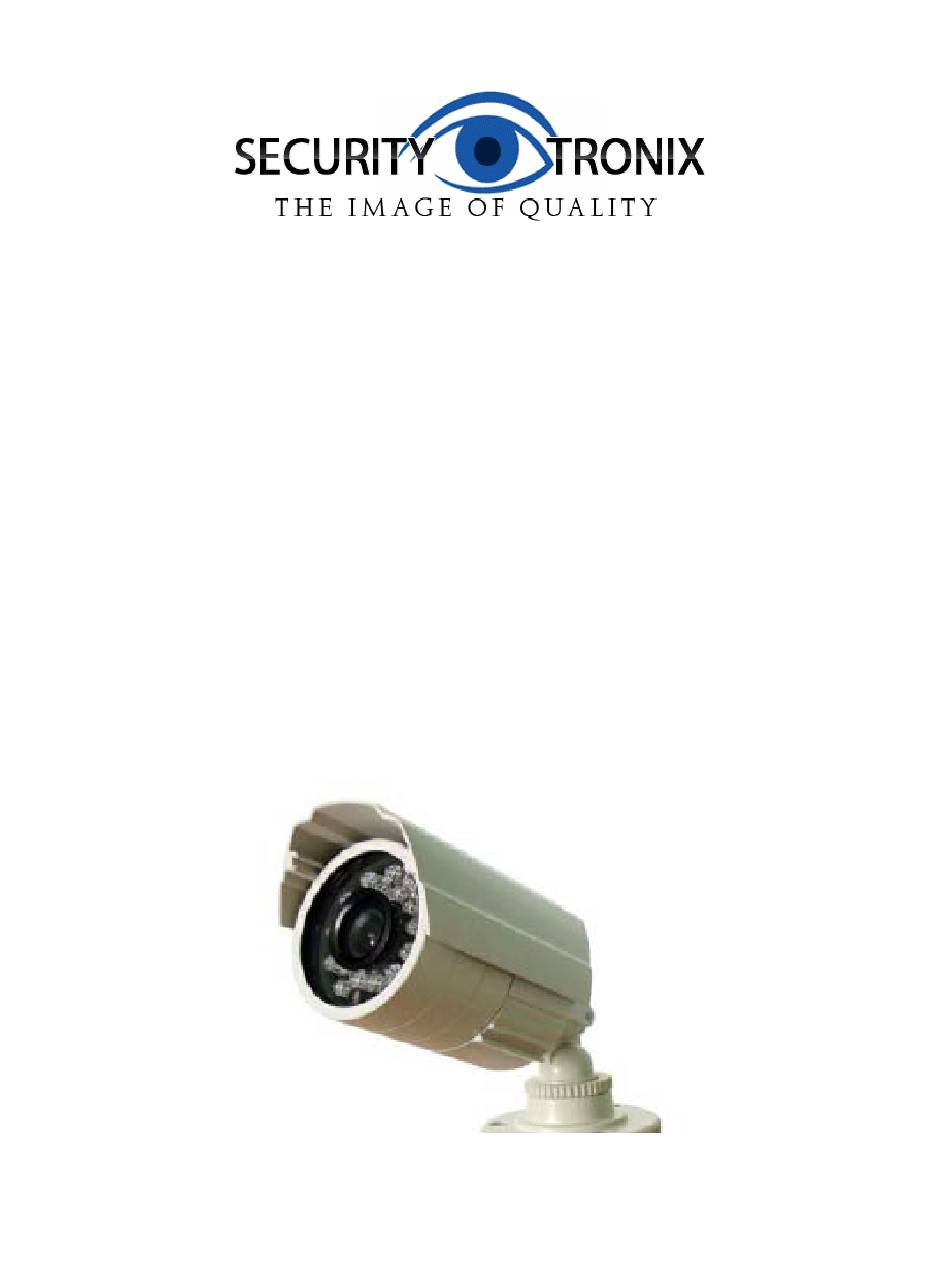

- Page 1 INSTALLATION MANUAL ST-BT6006 –B or –W Weatherproof Infrared Color Camera With CMOS Sensor v1.0 1/14/11...
-
Page 2: Package Contents
ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT6006 is an IP66 weatherproof infrared color camera designed around a 1/3” CMOS sensor with 600TVL of resolution with 23 infrared LEDs providing infrared capability up to 80 feet. The camera’s size, packaging and 3-axis bracket allow it to be easily and discretely installed. Its rich color, high definition, stability and resistance to jamming make it attractive for CCTV security applications. -
Page 3: Unpacking And Handling
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. -
Page 4: Wiring Connections
4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d. -
Page 5: Troubleshooting
5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
