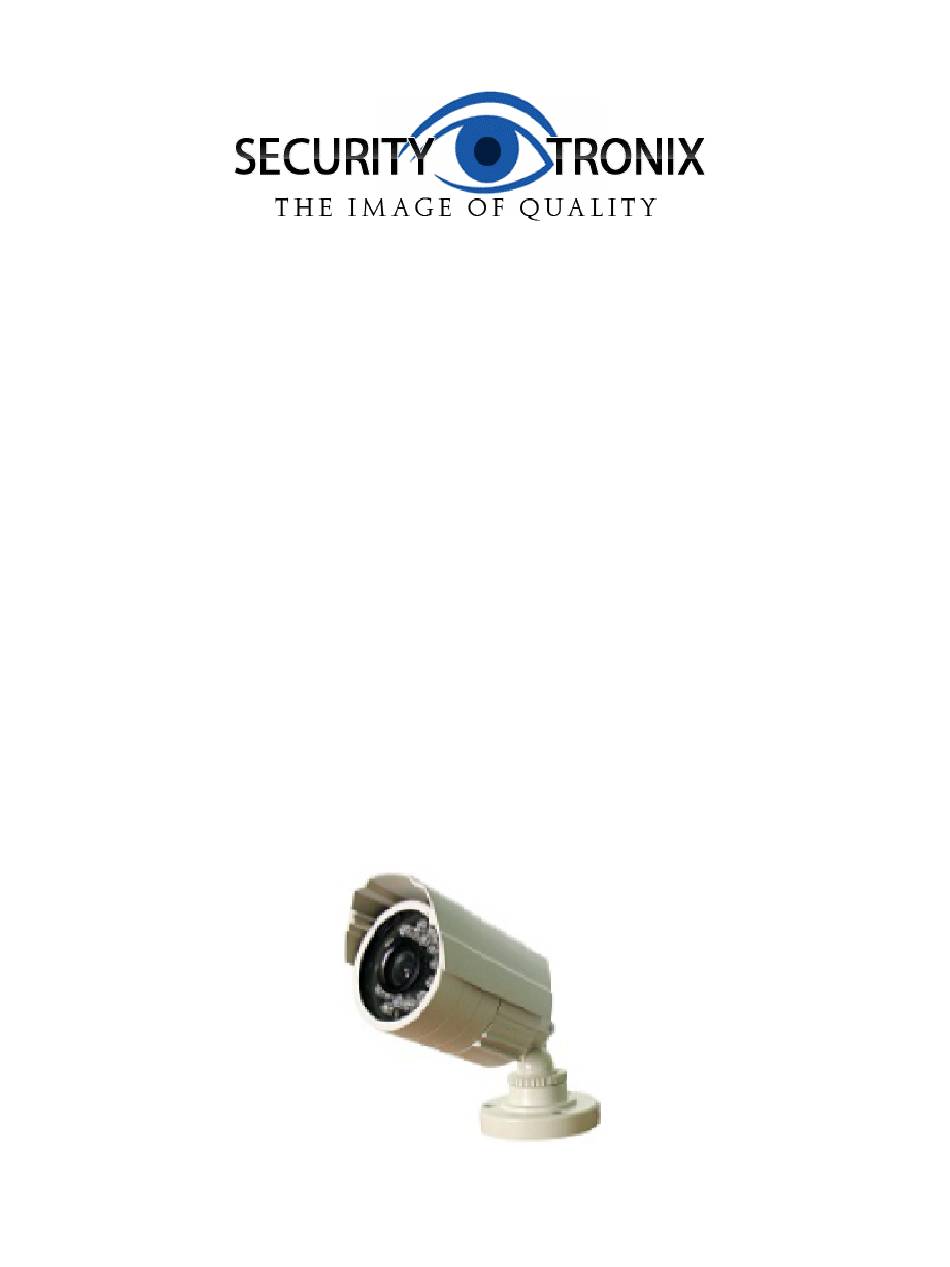

- Page 1 INSTALLATION MANUAL ST-BT540IR20 –B or –W Weatherproof Infrared Color Camera...
- Page 2 PACKAGE CONTENTS This package contains: One ST-BT540IR20 infrared color camera One installation manual Note: The ST-BT540IR20 requires a minimum 12VDC 400mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT540IR20 is a weatherproof infrared color camera designed around a 1/3” Color SONY CCD with 540TVL of resolution with infrared LEDs providing infrared capability up to 65 feet.
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
