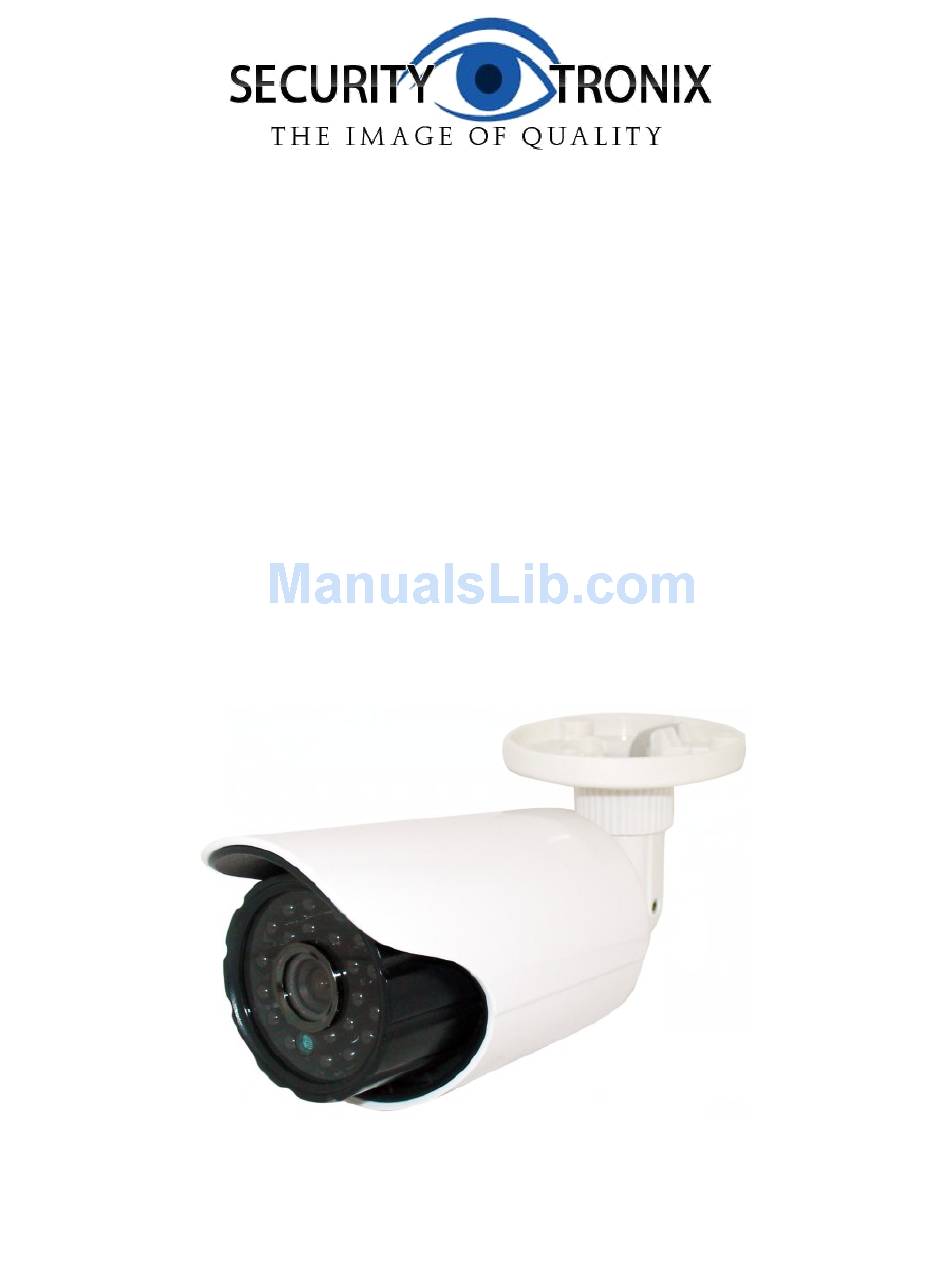

- Page 1 INSTALLATION MANUAL ST-BT800P-W Infrared Dome Camera v1.0 8/4/14...
-
Page 2: Package Contents

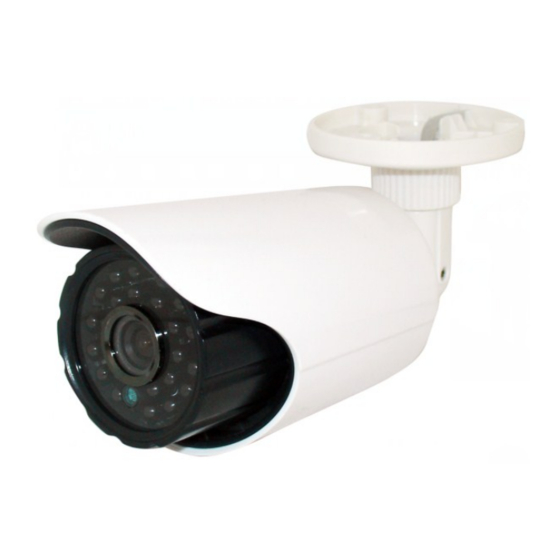

ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT800P-W is an infrared color dome camera. The camera uses a 1/4” Color CMOS sensor providing 8000TV lines of resolution. The ST-BT800P-W has a 3.6mm lens for optimal viewing. The 3- axis mount makes this camera very easy to install and position. The 24 infrared LEDs support low light illumination down to 0 Lux. -
Page 3: Installation And Operation
INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock. - Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power port. b. Connect the camera to the monitor with a 75 coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. Adjust the lens direction according to the required surveillance area and environment.
- Page 5 5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
