Specification
Model
ST-BT6003.6-B2
Pick up Element
1/3"CMOS
Effective Picture Ele-
728(H)×488(V)
ments (H×V)
Horizontal Resolution
600TV Line
Minimum Illumination
0.1Lux Color / 0.0 Lux B&W
S/N Ratio
More than 48dB
Scanning System
2:1 interlace
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
NTSC: 1/60s~1/100,000s
Gama Characteristic
0.45
66ft (with ￠5X24PCS Infrared LED)
IR Distance
IR Status
Under 10Lux by CDS
IR Power On
CDS AUTO Control
Video Output
1Vpp, 75Ω
Auto Gain Control
Auto
Power/Current
DC12V (+/-10%)/350mA
Lens
Board Lens 3.6mm / F2.0
3.25"(W) x 2.4" (H) x 5.2" (D)
Dimension (mm)
Weight (g)
14.1 Ounces
Storage Temperature
-10° ~ 140°F RH95% MAX
Operating Temperature
20° ~ 110° F RH95% MAX
Packing List
No
Description
1.
ST-BT6003.6-W2
Weatherproof IR Color Cameras
2.
User Guide
● FIXED LENS CAMERAS
● VARIFOCAL CAMERAS
● PTZ DOMES / MINI DOMES
● 4, 8 & 16 CHANNEL DVRS
● CCTV BULK CABLE
● BNC CONNECTORS
● PRE-MADE JUMPERS
● BALUNS
● PoE SWITCHES
Franchiser：
● INDIVIDUAL POWER SUPPLIES
Model
Number
1
● MULTI-CAMERA POWER SUPPLIES
N/A
1

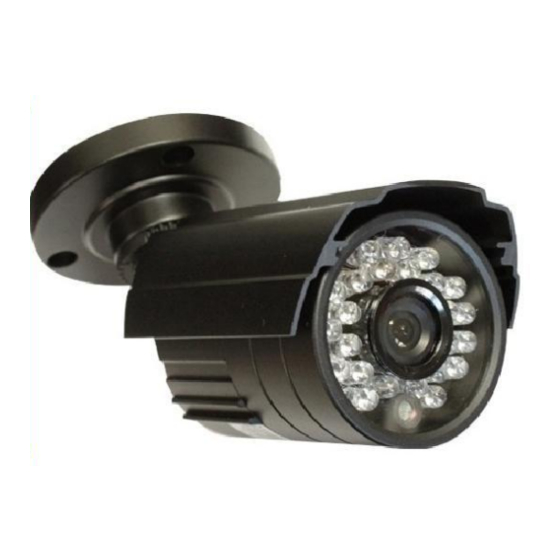

ST-BT6003.6-B2 Color Camera
ST-BT6003.6-W2
Weatherproof
IR Color Camera
Notes:
Before providing power to the
camera, please read this User Guide.
Do not attempt to disassemble the camera. If
the camera does not function properly please
contact SecurityTronix tech support.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Security Tronix ST-BT6003.6-W2
Summary of Contents for Security Tronix ST-BT6003.6-W2
-
Page 1: Packing List
Specification ST-BT6003.6-B2 Color Camera Model ST-BT6003.6-B2 Pick up Element 1/3"CMOS Effective Picture Ele- 728(H)×488(V) ments (H×V) ST-BT6003.6-W2 Horizontal Resolution 600TV Line ● FIXED LENS CAMERAS Minimum Illumination 0.1Lux Color / 0.0 Lux B&W Weatherproof IR Color Camera S/N Ratio More than 48dB... - Page 2 INTRODUCTION BRIEF DESCRIPTION OF PRODUCT CONNECTIONS Congratulations on your purchase of this product. * Sensor This User Guide is for the ST-BT6003.6-B2 camera. It CMOS 1/3" Image Sensor. utilizes the latest CMOS sensor and driver technology. Monitor Video This makes it small and unobtrusive for use in elevators * Auto Gain Control (AGC) and corridors.
