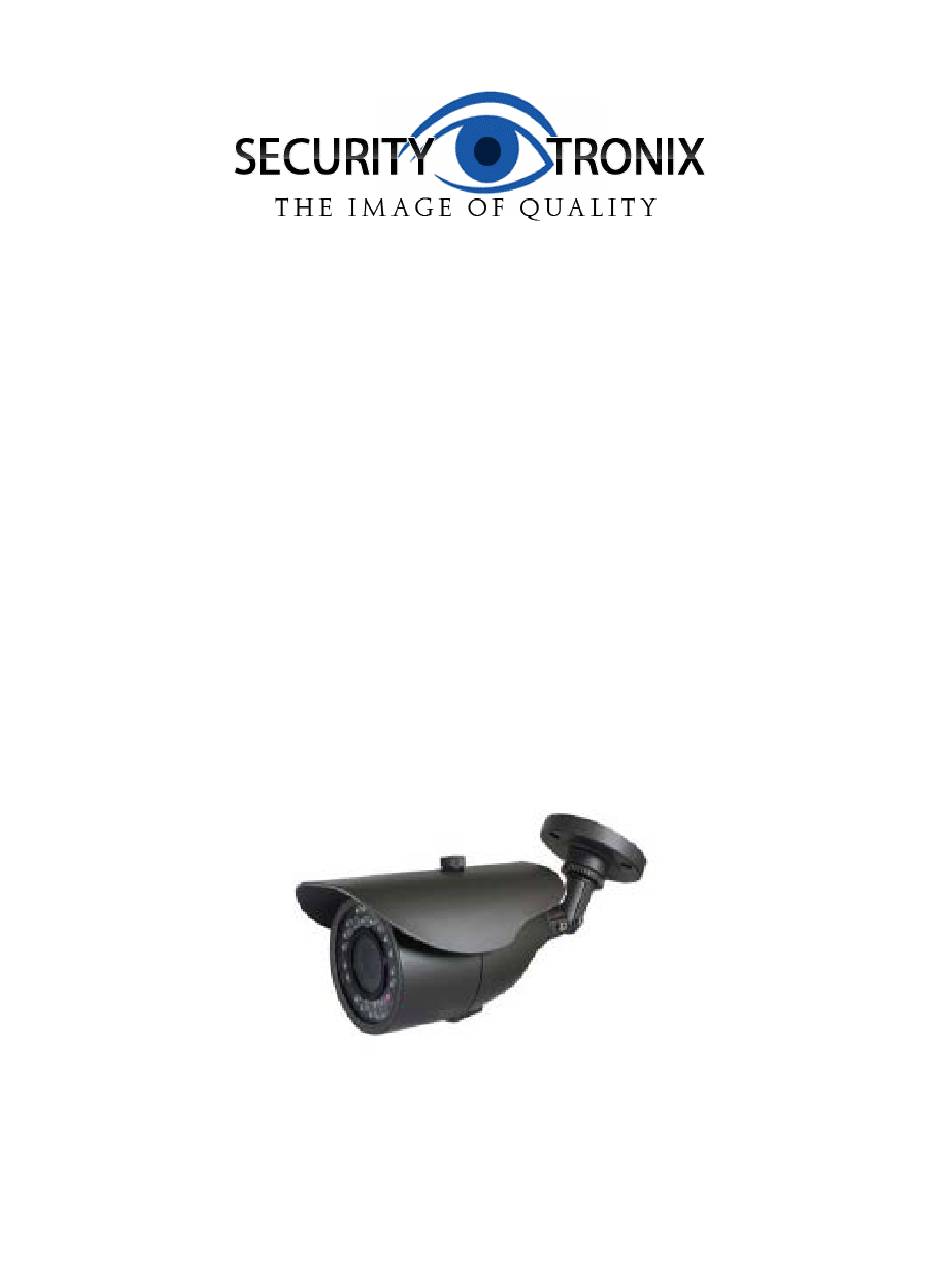

- Page 1 INSTALLATION MANUAL ST-BTLI540IRVFDV –B or –W Weatherproof Infrared Dual Voltage Color Camera v2.0 3/10/11...
- Page 2 This package contains: One ST-BTLI540IRVFDV-B-W weatherproof dual voltage infrared color camera One installation manual Note: The ST-BTLI540IRVFDV-B-W requires a minimum 12VDC 700mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. A 24VAC 450mA power supply may also be used. PRODUCT DESCRIPTION The ST-BTLI540IVFDV-B-W is a weatherproof infrared color camera designed around a 1/3”...
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d. Adjust the lens direction according to the required surveillance area and environment. 5.
