- Page 1 INSTALLATION MANUAL ST-BT540IR30 –B or –W Weatherproof Infrared Color Camera...

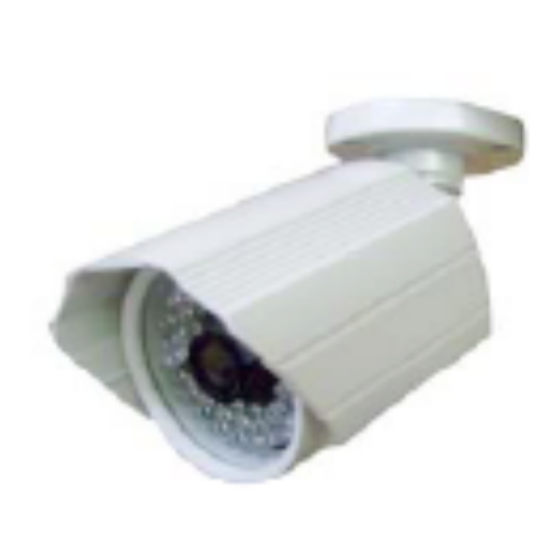

- Page 2 ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT540IR30 is a weatherproof infrared color camera designed around a 1/3” Color SONY CCD with 540TVL of resolution with 36 infrared LEDs providing infrared capability up to 98 feet. The camera’s size, packaging and 3-axis bracket allow it to be easily and discretely installed. Its rich color, high definition, stability and resistance to jamming make it attractive for CCTV security applications.
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
