Summary of Contents for Security Tronix ST-BT540IR30VF

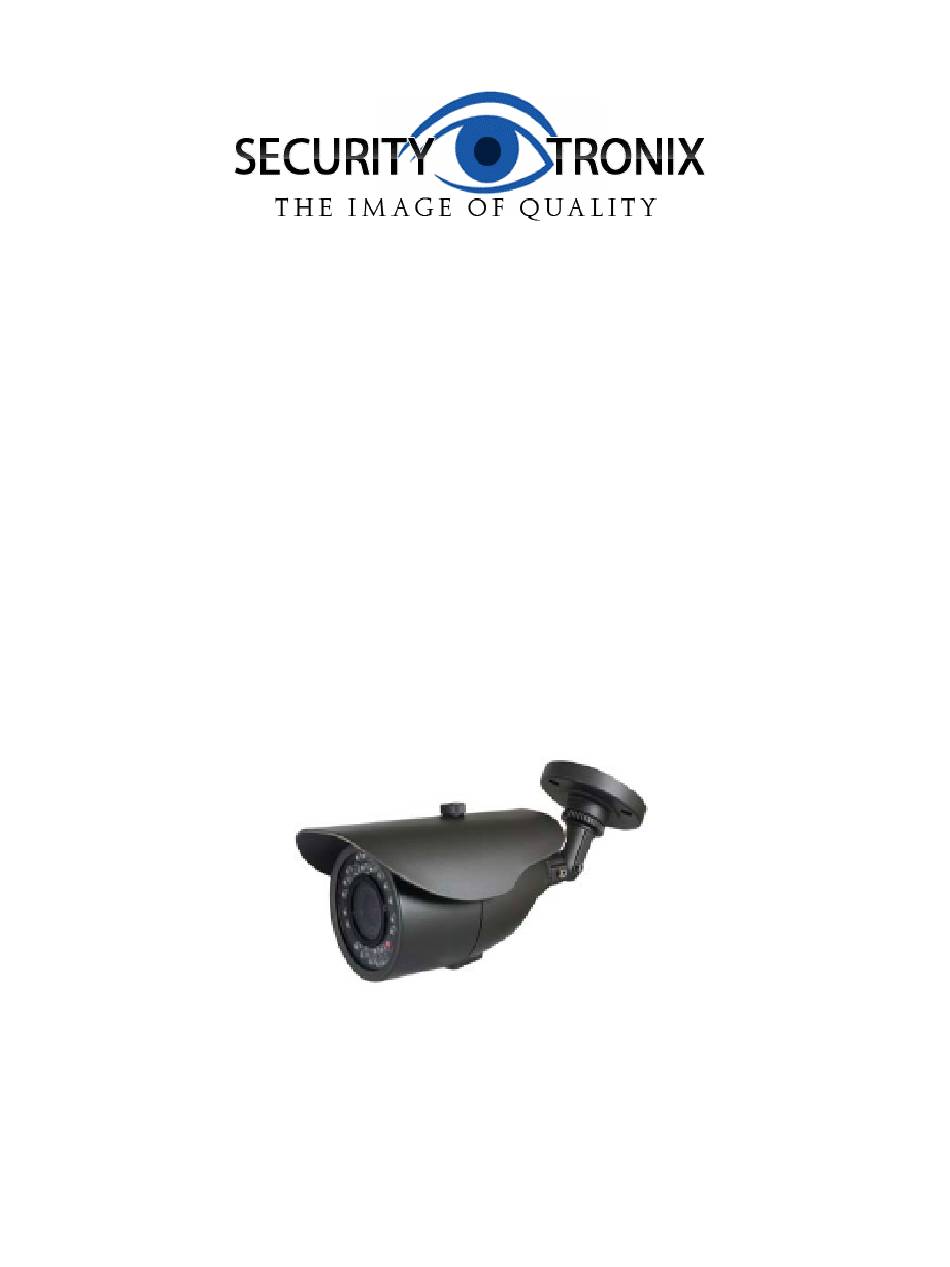

- Page 1 INSTALLATION MANUAL ST-BT540IR30VF –B or –W Weatherproof Infrared Color Camera...

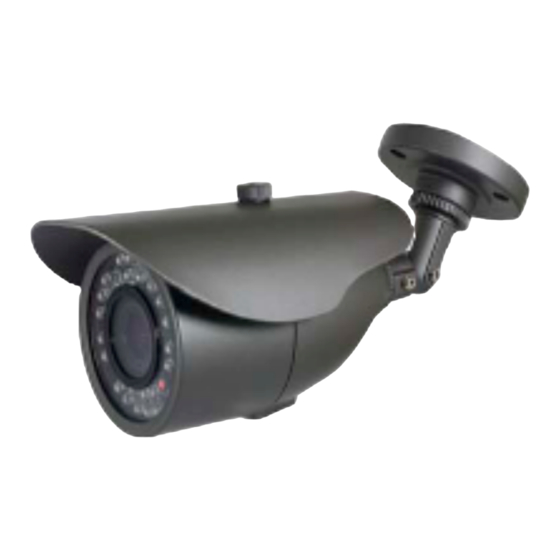

- Page 2 ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-BT540IR30VF is a weatherproof infrared color camera designed around a 1/3” Color SONY CCD with 540TVL of resolution and 36 infrared LEDs providing infrared capability up to 98 feet. The varifocal lens allows you to adjust the focal length from 4mm to 9mm allowing an optimal field of view.
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
