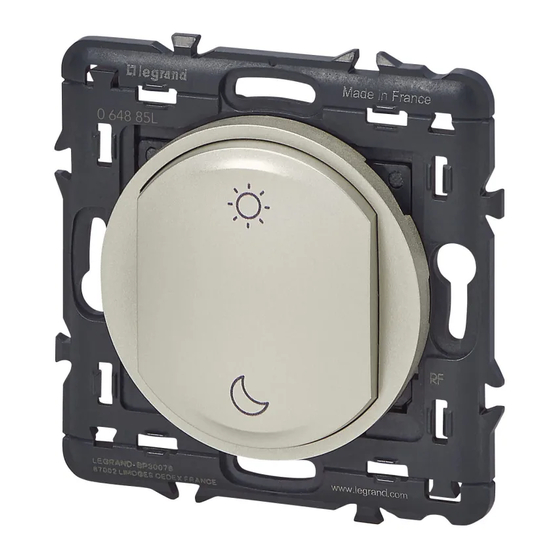

Wireless and batteryless Wake Up/Sleep control
0 648 84L/85L - 0 677 86L
0 770 57L - 6 000 84L
5 742 87/93 - 5 743 22 - 5 748 36
7 418 03L/33L/63L
Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule
or socket outlet
Module Control
Pack contents:
Wake Up/Sleep control
Setup button
Or
Stickers
x2
Gateway power outlet and home/away wireless
master switch
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 20 mW
Do not remove
the cover plate
Wake Up
Sleep
Advertisement
Table of Contents
Related Manuals for LEGRAND 0 648 85L
Summary of Contents for LEGRAND 0 648 85L
- Page 1 Wireless and batteryless Wake Up/Sleep control 0 648 84L/85L - 0 677 86L 0 770 57L - 6 000 84L 5 742 87/93 - 5 743 22 - 5 748 36 7 418 03L/33L/63L Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule or socket outlet Module Control Gateway power outlet and home/away wireless...
- Page 2 Start the configuration Press the configuration button of Module Control or press the middle of the wireless master switch (with battery) until its light briefly turns green, and then stop pressing. All wired products lights will turn green. > 3 s...
- Page 3 Pair the wireless, batteryless switch to your connected installation. Make sure that the indicator lights on the wired products are green and not flashing. If not, go back to step Tap 3 times any wired product "with Netatmo" with the wireless, batteryless "Wake Up/Sleep control". The light of the wired product flashes rapidly.
- Page 4 87002 LIMOGES CEDEX FRANCE • www.legrand.com Download the app Your installation is ready. You can download the Legrand Home + Control application to control your lights remotely. IC: 12132A-ZLGP1X FCC ID: 2ACN8-ZLGP1X Model : ZLGP16 This device contains licence-exempt transmitter(s)/receiver(s) that comply with FCC RF and Innovation, Science and Economic Development...
