Summary of Contents for LEGRAND ADMHRM4

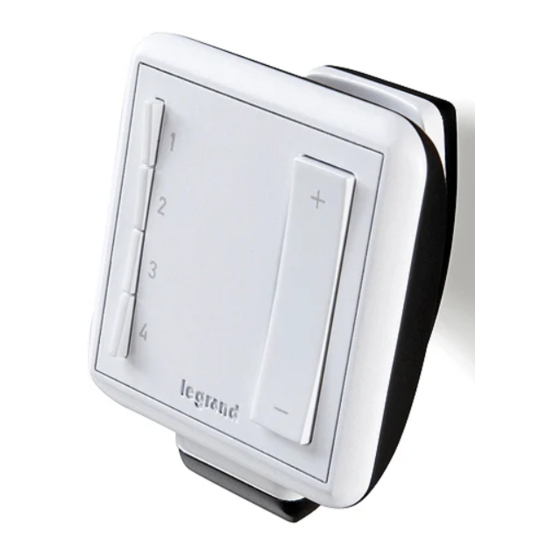

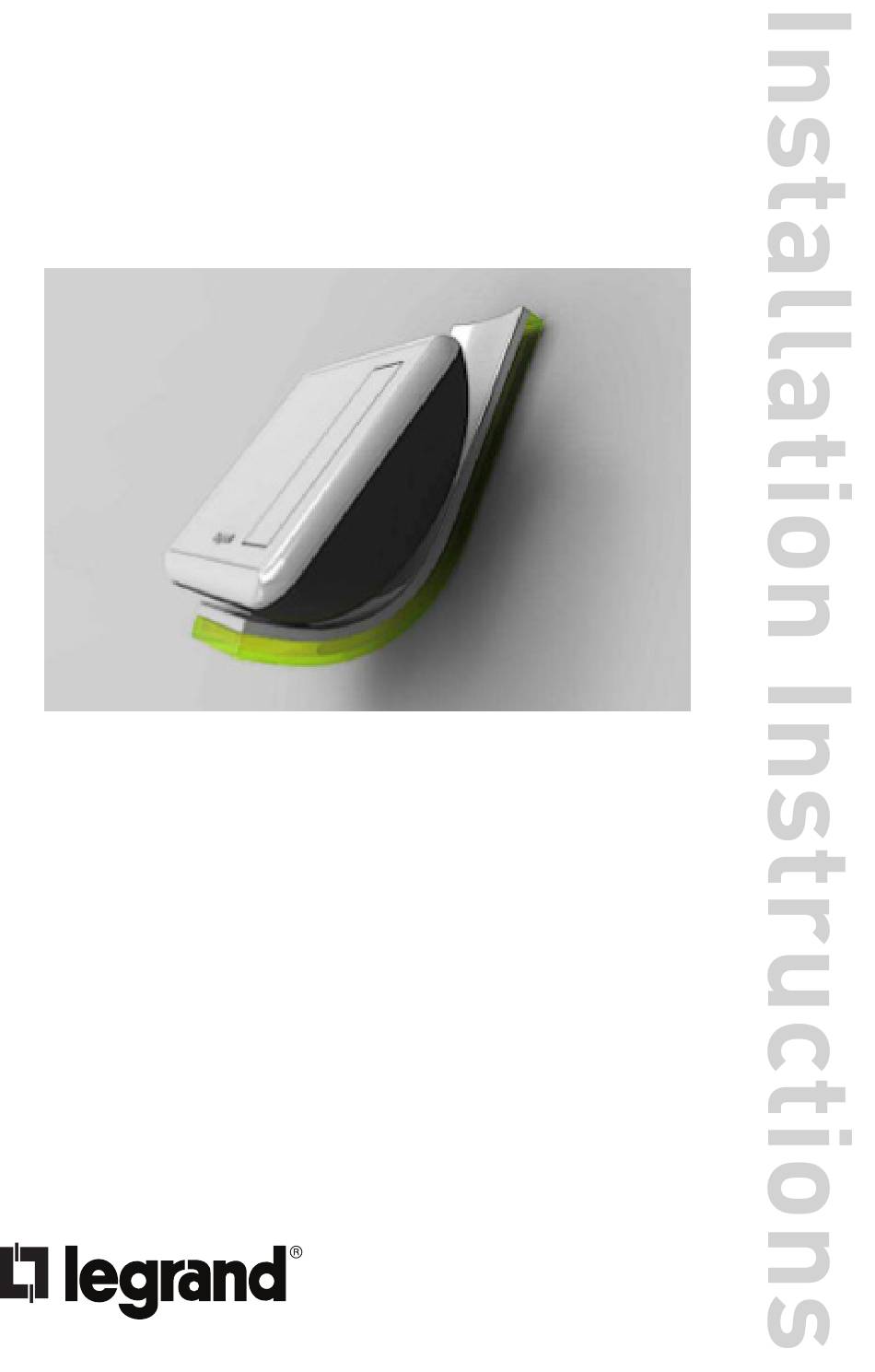

- Page 1 ADMHRM4 Wireless Room Scene Remote Specifications Power Supply ....Two AAA Alkaline Batteries, provided Operating Temperature ....32°F to 104°F (0°C to 40°C)
-
Page 2: Unit Description
(see (ROOM BINDING). You can control up to 4 scenes in the room with a ADMHRM4 (see MORE SCENES section). You can use additional room scene remotes to control those scenes from multiple locations. -
Page 3: New Installation
LED flashes orange (about 5 seconds ). 2. Be sure that the ADMHRM4 is awake during the binding process. Press any button to activate the remote and illuminate its LED. Verify that the new ADMHRM4 LED is flashing green, indicating that it has acquired the House ID. - Page 4 After the House ID is set in the remote, you create a room by binding devices to the remote. You can also add the ADMHRM4 to an existing room. When a new ADMHRM4 is added to a room, its scene buttons execute the same scenes as other room scene controllers with the same scene set assignment (see MORE SCENES).
-
Page 5: Standard Operation
Use the rocker paddle to begin and end binding functions. It also functions as an On/Off switch and a master light level Raise/Lower control for the room. All devices bound to the same room as the ADMHRM4 are included in the paddle operation (except fan controls). - Page 6 4. Return to the ADMHRM4 used in step 1. Press for 5 seconds or until all the status LEDs in the room turn green. The ADMHRM4 continues to flash (about 20-25 seconds). Wait for the LED to stop flashing before pressing a button.
-
Page 7: Battery Information
1. Press on the ADMHRM4 until the LED begins flashing (about 5 seconds ). 2. Tap the paddle on the remote. The LEDs on all the adorne wireless devices begin to flash. You now have 5 minutes to complete this process. -
Page 8: Warranty Information
Caution: Any changes or modifications to this device not explicitly approved by Legrand could void your authority to operate this equipment. Canadian Department of Communications - IC: 9922A-ADMHRM4 This device complies with Industry Canada licence-exempt RSS standard(s).
