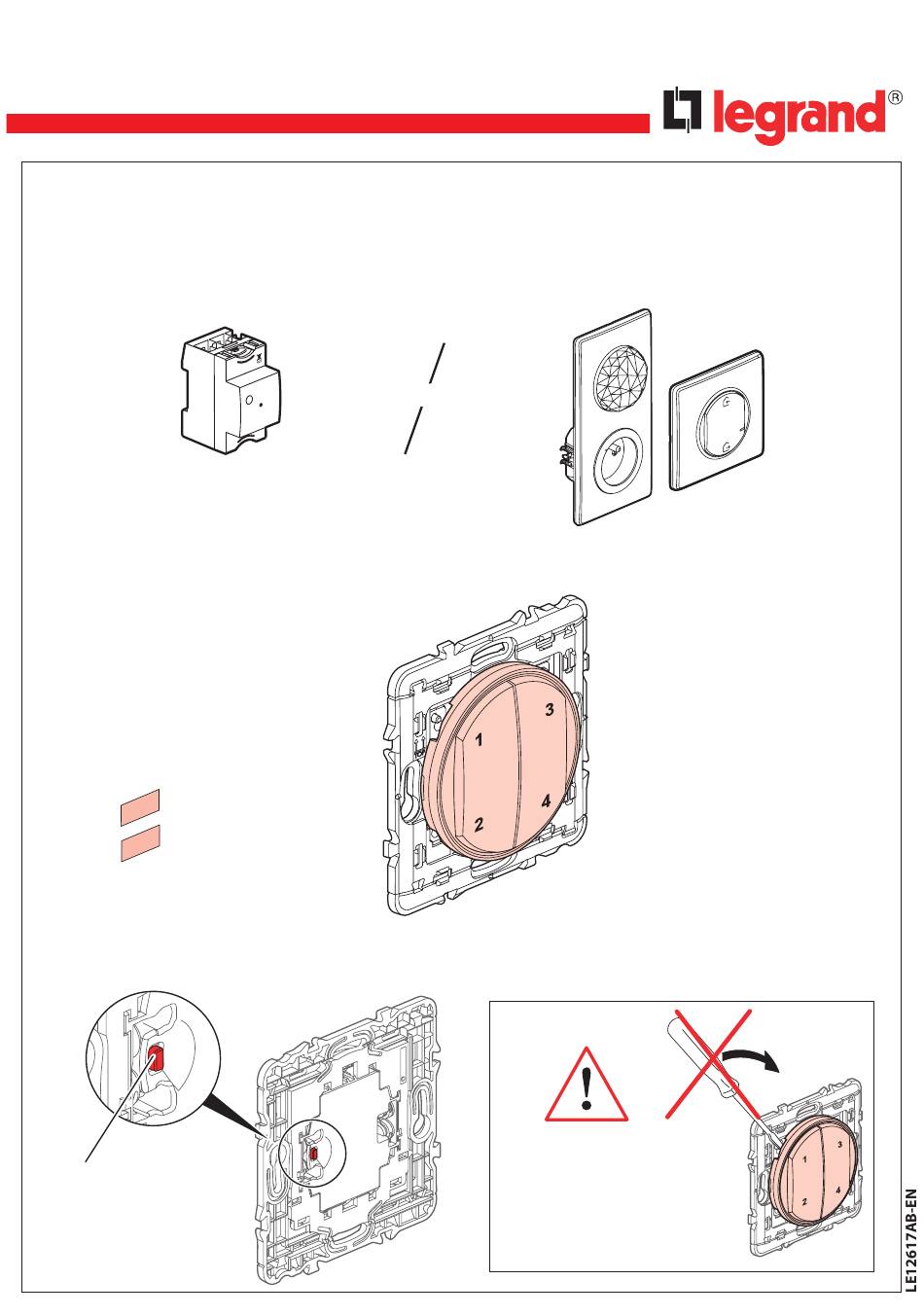

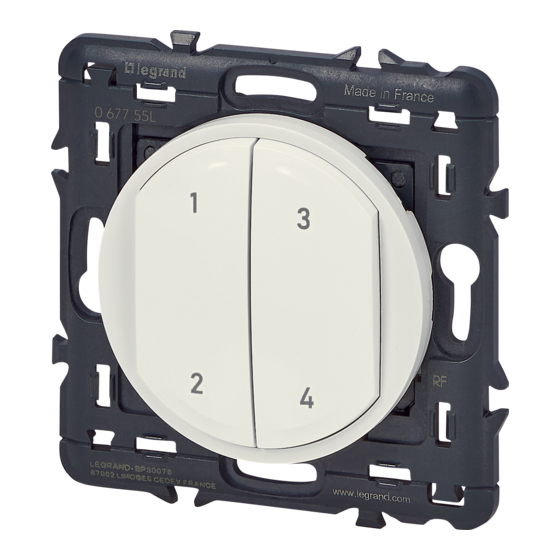

Wireless and batteryless 4 scenes control
0 677 55L/56L/69L
0 770 26L - 6 000 91L
7 418 02L/32L/62L
Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule
or socket outlet
Module Control
Pack contents:
Stickers
x2
Setup button
4 scenes control
Gateway power outlet and home/
away wireless master switch
Or
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 20 mW
Do not remove
the cover plate
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND 0 677 55L
Summary of Contents for LEGRAND 0 677 55L
- Page 1 Wireless and batteryless 4 scenes control 0 677 55L/56L/69L 0 770 26L - 6 000 91L 7 418 02L/32L/62L Requires to install the connected starter pack and one or more «... with Netatmo» connected switch, micromodule or socket outlet Module Control...
- Page 2 Start the configuration Press the configuration button of Module Control or press the middle of the wireless master switch (with battery) until its light briefly turns green, and then stop pressing. All wired products lights will turn green. > 3 s...
- Page 3 Pair the wireless, batteryless switch to your connected installation. Make sure that the indicator lights on the wired products are green and not flashing. If not, go back to step Tap 3 times any wired product "with Netatmo" with the wireless, batteryless "4 scenes control". The light of the wired product flashes rapidly.
- Page 4 The undersigned, Legrand declares that the radio-electric equipment type (0 677 55L/56L/69L - 0 770 26L - 6 000 91L - 7 418 02L/32L/62L) complies with directive 2014/53/EU. The full text of the EU declaration of www.legrandoc.com/067755L conformity is available on the following website: www.legrandoc.com...
