Minimate
flow filtration system
Quick start guide
Component information
Part No: OAPMPUNV
Description: Minimate EVO TFF system,
115V AC – 230V AC 50/60 Hz
System includes:
• Masterflex L/S variable speed pump with Easy-Load II
pump head
• VWR stir plate
• 500 mL reservoir with lid, includes o-ring and fittings
•
Drip tray
•
Pressure gauges
• Adjustable drip tray feet
• Adapter plug international, 100V-250V
AC for pump (plug does not change current)
• Power adapter plug, 100V-240V AC power supply,
12V DC input for stir plate
Fittings and parts bag:
1. Male luer plugs (4)
2. 3-way valve for reservoir (2)
3. 1-way valve for reservoir Lid (2)
4. Male luer lock-1/8 in. hose barb elbow (4)
5. Male luer lock-1/8 in. hose barb (3)
6. Male luer coupler (1)
7. Female luer lock-1/8 in. hose barb (1)
8. PharMed tubing (2 ft.)
9. Stir Bar (1)
10. Minimate Capsule Stand (1)
11. Screw for Minimate Capsule (1)
12. Screw clamp for tubing (1)
13. Sinker (1)
14. Tubing clamps (8)
cytiva.com
EVO tangential
™

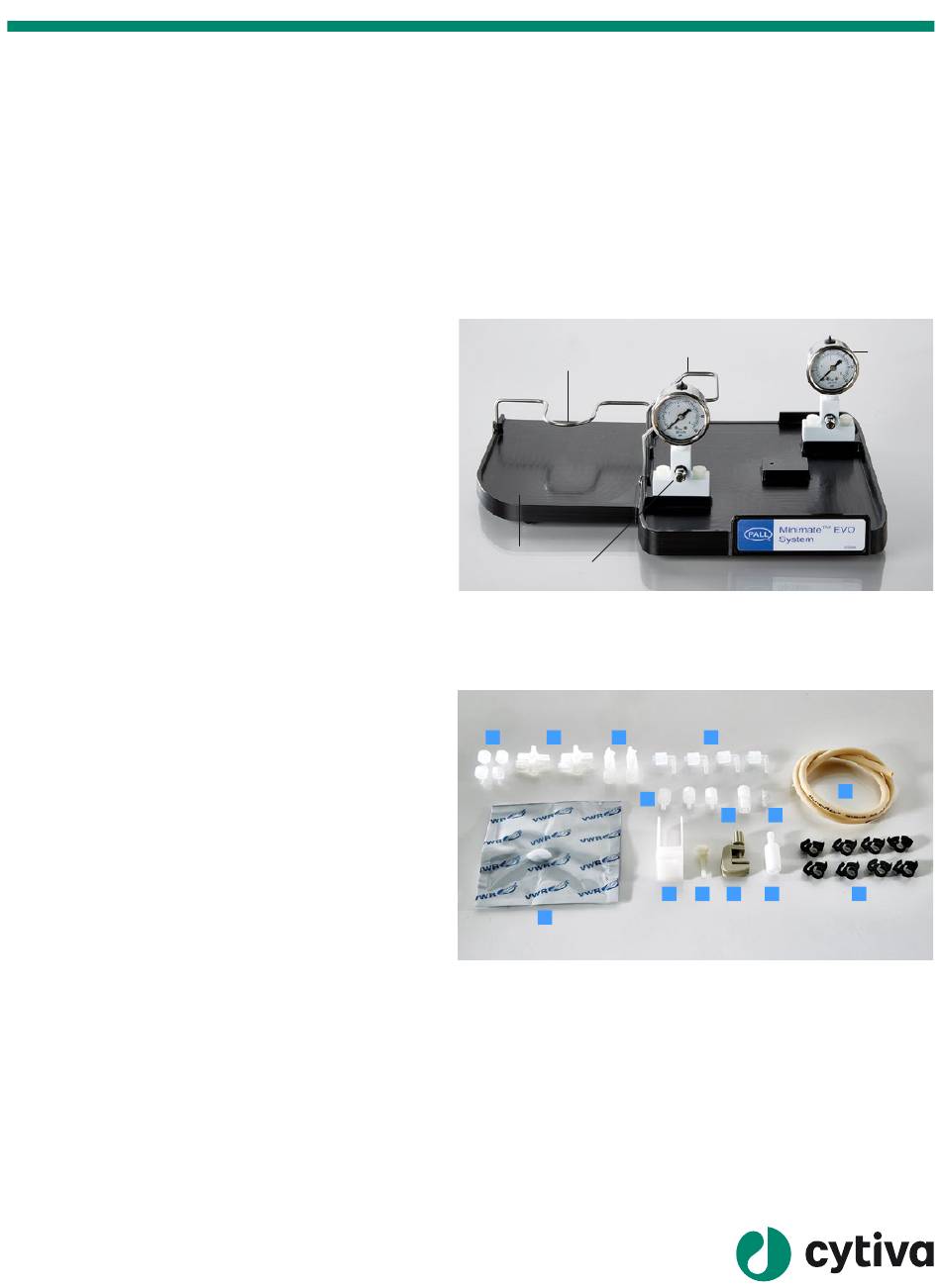

Tray assembly
Fittings and parts bag
Capsule
Reservoir
bracket
bracket
Drip tray
Fitting
1
2
3
5
10
9
Pressure
4
8
6
7
11
12
13
14
gauge
