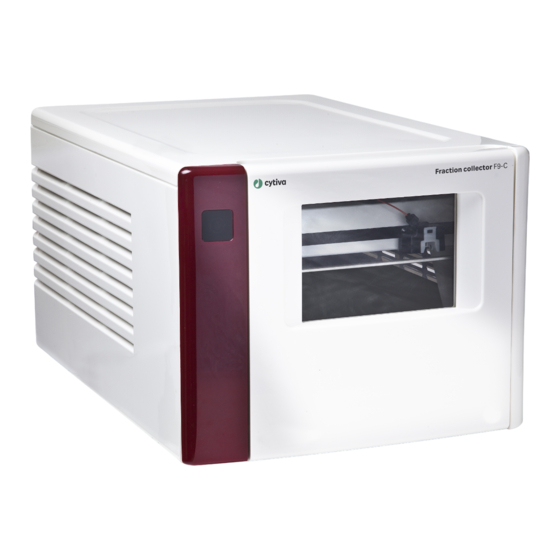

Fraction collector

Advertisement

Quick Links

Fraction collector F9-C
Unpacking Instructions
Read this before unpacking Fraction collector
F9‑C
This instruction contains information that is important for safety during the unpacking of
Fraction collector F9-C. Read the whole instruction carefully before starting to unpack
the system.
When you receive the delivery
Record on the receiving documents if there is any apparent damage to the delivery
box. Inform your Cytiva representative of such damage.
Move the delivery box to a protected location indoors.
About this instruction
This instruction covers unpacking of Fraction collector F9-C. See Fraction collector F9-C
Operating instruction for instructions on how to install the instrument.
Remove outer packing material and lift the
instrument
Follow the instruction below to unpack the instrument and lift the instrument onto the
bench.
cytiva.com
29037761 AC

Advertisement

loading
Need help?

Need help?

Do you have a question about the F9-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for cytiva F9-C

  • Page 1 Read this before unpacking Fraction collector F9‑C This instruction contains information that is important for safety during the unpacking of Fraction collector F9-C. Read the whole instruction carefully before starting to unpack the system. When you receive the delivery •...
  • Page 2 Heavy object. Use proper lifting equipment, or use two or more persons when moving the instrument. All lifting and moving must be performed in accordance with local regulations. Step Action Remove the plastic straps. Lift off the corrugated box. Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 3 Step Action Remove the pieces of foam from the top of the fraction collector. Lift off the packages and the foam sheet. Check the content of the packages. Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 4 Packages with accessories are placed on top of the fraction collector at delivery. The contents are listed below. • Six cassettes • Cassette tray • Uninet-9 cables • Waste funnel • Tubing • Fraction collector F9-C Operating Instruction Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 5 Follow the instructions below to remove the transport fixations from the inside of the the fraction collector. Step Action Remove the hose from the rail of the fractionation arm. Deattach the Button cover and remove the piece of cardboard. Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 6 Step Action Reattach the Button cover. Gently move the fractionation arm forward and free it from the piece of foam that keeps it in place. Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 7 Step Action Remove the foam. Attach the waste funnel and put it in place. Fraction collector F9-C Unpacking Instructions 29037761 AC...
  • Page 8 © 2020–2021 Cytiva All goods and services are sold subject to the terms and conditions of sale of the supplying company operating within the Cytiva business. A copy of those terms and conditions is available on request. Contact your local Cytiva representative for the most current information.
