U-Line H-11933 Manual

U-Line H-11933 Manual

Portable floor scale
Hide thumbs

Advertisement

Quick Links

Download this manual

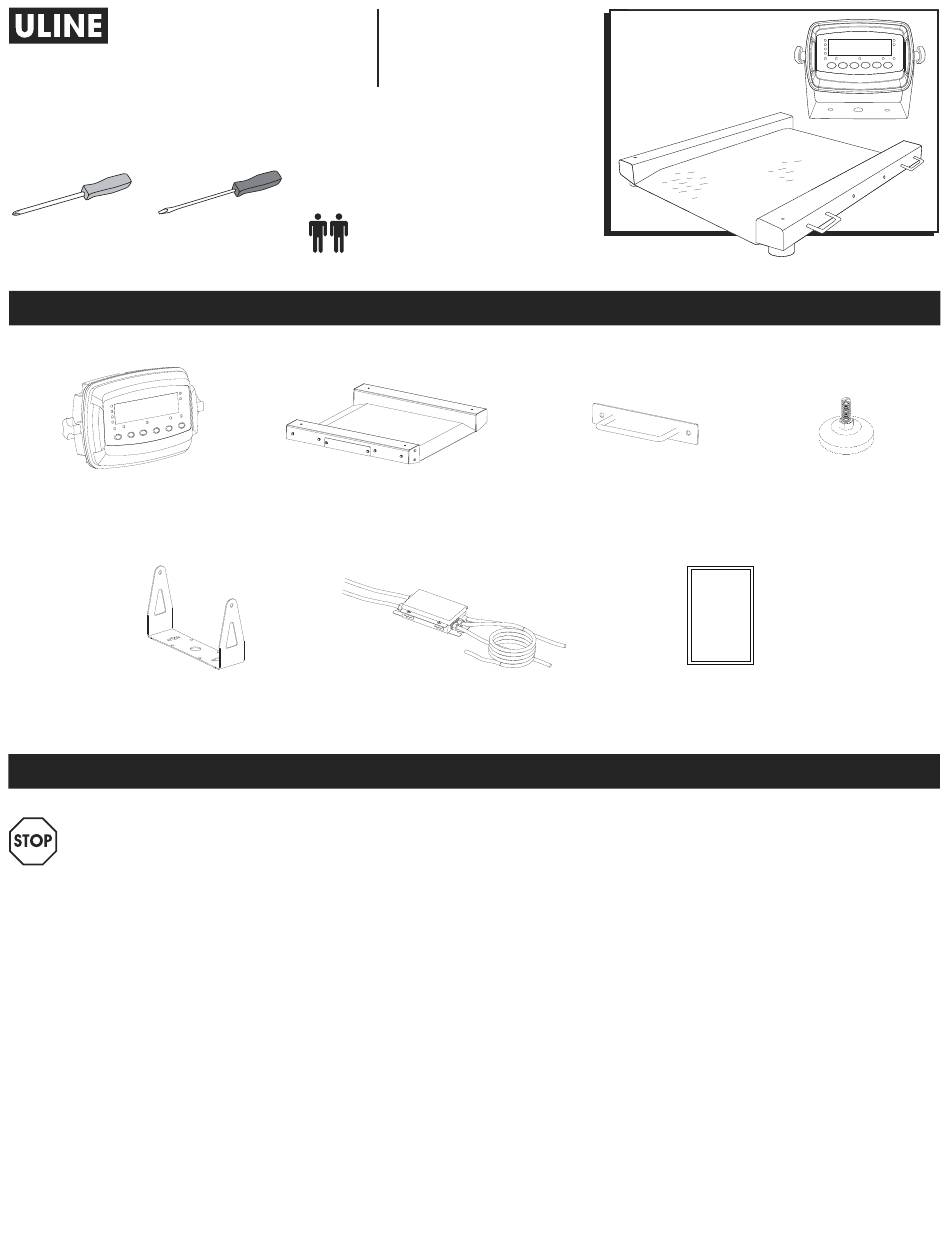

H-11933, H-11934
PORTABLE FLOOR SCALE
TOOLS NEEDED
Phillips
Screwdriver
Screwdriver
Indicator x 1
U-Frame x 1
Read and follow all instructions before use.
Calibration, inspections and maintenance
should be performed by professionals.
• Ensure the indicator rests on a stable surface.
• Do not disassemble or modify unit.
• Do not exceed the rated load limit of the unit.
• Do not step on the unit.
• Do not jump on the unit.
• Do not use this product if there are any signs of
damage.
• Do not use for purposes other than weighing.
• Avoid faulty readings before weighing samples
with static electric charge by discharging them or
wiping the indicator with an anti-static agent.
PAGE 1 OF 17
Flathead
Two Person Assembly
Recommended
Portable Floor Scale x 1
Junction Box and Cable x 1
1-800-295-5510
uline.com
PARTS
SAFETY
ELECTRICAL SAFETY
• Unit must be connected to a GFCI outlet.
• Disconnect power before servicing unit.
• All operators must discharge themselves before
servicing unit by touching a grounded surface or
by wearing a grounded anti-static wrist strap.
• Always pull the plug – not the cord – when
disconnecting from the outlet.
• Do not use if the power cord is worn or damaged.
• Power cords should only be replaced by qualified
service technicians using genuine replacement
parts.
Para Español, vea páginas 7-12.
Pour le français, consulter les pages 13-18.
Handle x 2
Installation Guide x 1
Foot x 4
0225 IH-11933

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-11933 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-11933

Summary of Contents for U-Line H-11933

  • Page 1 Para Español, vea páginas 7-12. Pour le français, consulter les pages 13-18. H-11933, H-11934 1-800-295-5510 uline.com PORTABLE FLOOR SCALE TOOLS NEEDED Phillips Flathead Two Person Assembly Screwdriver Screwdriver Recommended PARTS Indicator x 1 Portable Floor Scale x 1 Handle x 2...
  • Page 2 SETUP PREPARATION 3. With a second person, flip the scale upside down. Screw in the feet clockwise on the four corners. • If the indicator is powered by an adaptor, plug the Ensure feet are level. (See Figure 3) adaptor directly into the "DC" pin located at the bottom of the indicator.
  • Page 3 SETUP CONTINUED POWER SUPPLY 6. Plug the cable to the load cell port on the indicator. (See Figure 6) AC ADAPTOR Figure 6 • If the indicator is powered by an adaptor, plug the adaptor directly into the "DC" pin located at the bottom of the indicator.

  • Page 4: Overview Of Controls

    OVERVIEW OF CONTROLS CONTROL PANEL DISPLAY INSTRUCTION ON when the current weight is GROSS weight. ON when the current weight is NET weight. On when the current weight is 0 lb. The weighing data is stable. Hold ON when the weight is hold. UNDER ON when the weight below min.

  • Page 5: Operation

    OVERVIEW OF CONTROLS CONTINUED REAR PANEL Load Cell DC Power RS-232 Port PORT FUNCTION LOAD CELL Port for connecting load cell. RS-232 PORT Serial interface port (computer, printer). DC POWER Port for DC power (DC 12 V adaptor is available). OPERATION POWER ON TARE FUNCTION...

  • Page 6: Counting Function

    OPERATION CONTINUED USING A PRE-SET TARE WEIGHT AUTO HOLD If the weight on the scale is above 20d (20 x division) 1. Press and hold the TARE key for two seconds. and is stable, the indicator will hold that weight on 2.

  • Page 7: Calibration Menu

    OPERATION CONTINUED CALIBRATION MENU 18. Press ZERO to change the value to 1. 19. Press PRINT / ENTER . This display will count down from 1. Turn on the scale by holding ON/OFF for two seconds. 10-1 while the scale is calibrating zero. When the 2.

  • Page 8: Linear Calibration

    OPERATION CONTINUED LINEAR CALIBRATION INDICATOR PARAMETER SETTINGS The parameter settings menu has a calibration section 1. Press PRINT / ENTER to continue. The display will now (C01 to C07 explained above) and a parameter settings show section (C08 and up). 2.
  • Page 9 OPERATION CONTINUED PARAMETER SETTINGS FUNCTION PARAMETER SETTINGS/OPTIONS 1 = kg. 2 = lb. 3 = gram Weighing Unit 4 = oz. NOTE: For calibration, only kg. or lb. are allowed. 0 = no decimal 1 = 0.0 Decimal Setting 2 = 0.00 3 = 0.000 4 = 0.0000 Options: 1, 2, 4, 10, 20, 50...
  • Page 10 OPERATION CONTINUED FUNCTION PARAMETER SETTINGS/OPTIONS 0 = Turn off hold function. 1 = Peak hold: Grabs the highest weight. 2 = Manual hold: Grabs the current weight. 3 = Auto hold: Automatically holds data when stable. Hold Function 4 = Average hold: for animal weighing, averages the weight iiiiiiiii from a sample of three seconds.
  • Page 11 OPERATION CONTINUED FUNCTION PARAMETER SETTINGS/OPTIONS 0 = No initial zero setting. 1 = +⁄– 1% max capacity 2 = +⁄– 2% max capacity Initial Zero Range 4 = +⁄– 4% max capacity 10 = +⁄– 10% max capacity 20 = +⁄– 20% max capacity 100 = +⁄–...
  • Page 12 OPERATION CONTINUED FUNCTION PARAMETER SETTINGS/OPTIONS 0 = yy.mm.dd 1 = mm.dd.yy Print Time and Date 2 = dd.mm.yy 3 = yy.mm.dd 0 = 0 – 5 V output Analog Output Setting 1 = 4 – 20mA output Calibrate Current 4–20 mA current 0 = Turn off relay output.
  • Page 13 OPERATION CONTINUED DEFAULT PARAMETER SETTINGS FUNCTION PARAMETER DEFAULT SETTING Weighing Unit Decimal Setting Graduation Setting Maximum Capacity 100,000 Zero Calibration Calibration Restore Default Warning Tone Automatic Power Off Power Saving Mode Hold Function Unit Conversion Upper Limit Alarm 000000 Lower Limit Alarm 000000 Inner Code Display -----------...

  • Page 14: Print Mode

    OPERATION CONTINUED FUNCTION PARAMETER DEFAULT SETTING Analog Output Setting Relay Output Setting Multi-Connection Add Wireless Connection Gravity of Calibration Location 9.7936 Gravity of Destination 9.7936 PRINT MODE For printing on a non-adhesive ticket printer. Parameters 16, 17, 30 and 42-45 all affect ticket print-out. Normal Weighing Ticket Printout Example: Accumulation Weighing Ticket Printout Example: Date:...

  • Page 15: Troubleshooting

    TROUBLESHOOTING ERROR CODE POSSIBLE CAUSES RECOMMENDATIONS UUUUUU Overload. Reduce the weight. Cables are not connected properly. Check load cell connection. Load cell is defective. Inspect load cell. Check the input/output. If the above actions do not work, try the following instructions: 1.
  • Page 16 TROUBLESHOOTING CONTINUED ERROR CODE EXPLANATION RECOMMENDATIONS No weight was used during Err1 Use correct weight within the defined range. calibration, or the weight used was above the max capacity. Err2 The weight used during calibration The calibration weight minimum is 10% was below the minimum required of the maximum capacity set in C04.
  • Page 17 TROUBLESHOOTING CONTINUED OPERATING ISSUE POSSIBLE CAUSES RECOMMENDATIONS Loose power cord. Ensure the power cord is plugged in. The scale does not turn on. Outlet is defective. Ensure the power source works. Test the power source by connecting a different appliance to the same outlet to check if it's operational.
