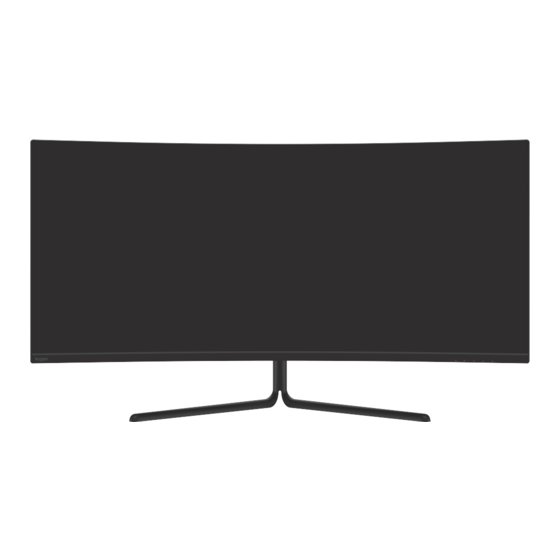

34" 21:9 curved gaming monitor

Advertisement

Quick Links

USER GUIDE
34" 21:9 CURVED GAMING
MONITOR
3440x1440 100Hz
KAMN34F1QULB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAMN34F1QULB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kogan KAMN34F1QULB

  • Page 1 USER GUIDE 34" 21:9 CURVED GAMING MONITOR 3440x1440 100Hz KAMN34F1QULB...
  • Page 3: Safety And Warnings

    SAFETY & WARNINGS Read all instructions before using the appliance and retain for reference. This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. Do not insert any object or spray any liquid into the vents. Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
  • Page 4 COMPONENTS Monitor Stand arm Base Stand screws VESA screws (PM5*11 x4) (M4*12 x4) USER GUIDE 34" 21:9 CURVED GAMING MONITOR 3440x1440 100Hz KAMN34F1QULB Headphone stand DP cable Power cable User guide...
  • Page 5: Button Function

    OVERVIEW Button Function Menu button: Confirm/call up the main menu. Down button: Move down in the menu/quickly enter the GamePlus. Up button: Move up in the menu/quickly enter the ECO. Exit button: Exit/return to the previous menu/quickly enter the Input Signal . Power button: Turn on/o the monitor.
  • Page 6 ASSEMBLY Open the carton, remove the stand arm, base and headphone stand. Leave the monitor in foam. Secure the stand arm to the base using one of the screws. Attach the headphone stand to the stand arm. Headphone stand Headphone stand Stand Stand arm Stand...
  • Page 7 3. Attach the stand plate and stand assembly back onto the rear of the monitor. Remove the remaining protective foam and stand the monitor upright. Note: To remove the stand from the monitor, slide the quick-release button up and pull the stand assembly outwards. Quick- release button...
  • Page 8: Vesa Mount

    VESA MOUNT VESA mounting pattern 75x 75mm, screw size M4. Note: VESA mount or mounting accessories are not included. Open the box, take out the monitor with protection foam attached and gently place it on a desktop or table. Ensure all components are removed from the foam covering. Press the quick release button to remove the stand plate.
  • Page 9 3. Remove the four VESA screws from the accessory bag and attach them to the rear casing. VESA screws 4. During hanging of the product, do not pinch the screen with your hand to avoid damaging the screen. Instructions for attaching to the specific wall mount will be included with the mount. Mount (not supplied) Notes: To prevent the monitor on the mount from failing, please install it firmly and protect it fully.
  • Page 10: Power Cable

    CONNECTIVITY Power Cable Connect the included power cable to the monitor power port and then connect the other end to a power outlet. Power cable Audio Out Connect an audio output device (speakers, headphone etc.) to the 3.5mm audio port on the monitor.
  • Page 11 HDMI Connect an HDMI cable from the computer's display output to the monitor's display input. HDMI cable (not included) DisplayPort Use the supplied DP cable to connect the computer's display output to the monitor's display input.
  • Page 12: Operation

    OPERATION Connect the monitor to your input device via HDMI or DP. Connect the power cable to your monitor and then connect the other end directly to a power socket. Use the power button to turn the monitor on. Menu description The color and shape of the OSD menu of the actual computer may be slightly di erent from them shown in the figure.
  • Page 13 Functions of the monitor vary with models, and the functions in this manual are for reference only. Standard Mode O /On RTS/RPG Mode O /On FPS Arena Mode O /On MOBA Arena Mode O /On Adaptive-Sync O /On Shadow Balance 0-100 Response Time O /Normal/Fast/Ultrafast...
  • Page 14 Functions of the monitor vary with models, and the functions in this manual are for reference only. OSD V-Position 0-100 OSD Transparency Hotkey1 Setting Brightness/Contrast/Volume/Mute/Shadow Balance/Game Crosshair/ OSD Settings Refresh Rate/Game Time/Contextual Model/PIP/PBP Mode/Input Signal/ Hotkey2 Setting Dynamic Brightness/HDR Hotkey3 Setting OSD Rotation Normal/90/180/270 OSD Lock...
  • Page 15: Specifications

    SPECIFICATIONS Screen Size 34 inch Aspect Ratio 21:9 Viewing Angle 178°(H) / 178°(V) Pixel Pitch 0.07725(H) x 0.23175(V) Contrast Ratio 3000:1 Display Color 16.7M Resolution 3440×1440 Refresh Rate 100Hz 100-240V~ 50/60Hz 2.0A Power Input The standard voltage and power supply may vary with countries, please refer to the label at the back of the product.
  • Page 16 NOTES...
  • Page 19: Need More Information

    Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
