Summary of Contents for Kogan KAMN34RQUCJA

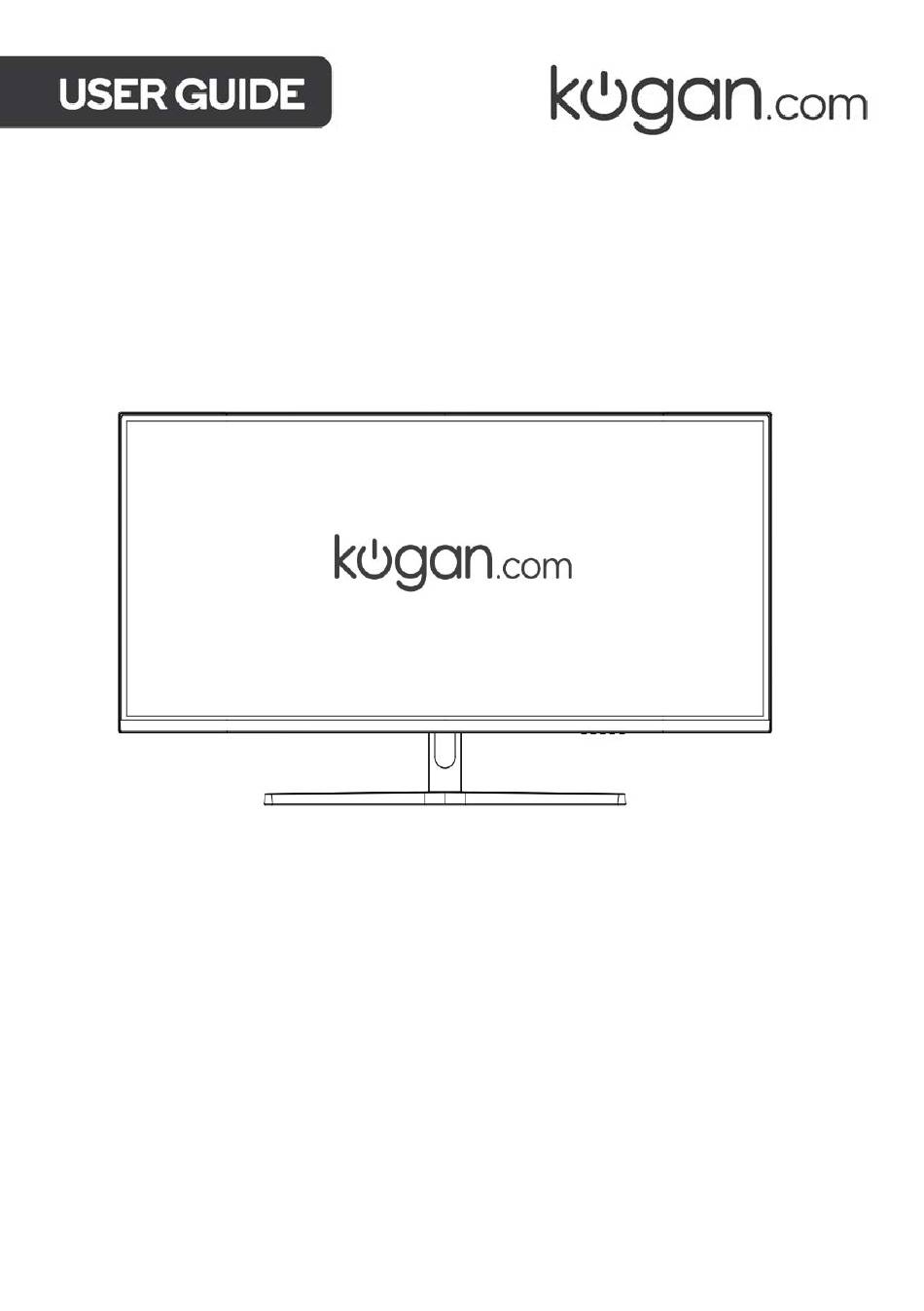

- Page 1 34" CURVED ULTRAWIDE FREESYNC USB-C GAMING MONITOR (3440 X 1440, WQHD 165HZ) KAMN34RQUCJA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Connectivity Operation Specifications Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS • Read all instructions before using this monitor and retain this user guide for future reference. • This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. • Do not insert any object or spray any liquid into the vents. -
Page 4: Components
COMPONENTS Monitor Stand Arm Stand Base M5x10 Screw Power Adapter HDMI Cable User Guide... -
Page 5: Overview
OVERVIEW HDMI port DisplayPort USB-C port USB-B port USB-A port (x2) 3.5mm audio out Power input • When connecting devices to the monitor, it is recommended to connect the USB-B first. Then, the USB-A ports can be used. • USB-B is commonly used for printers, monitors and other devices. •... - Page 6 Controls Menu Left Right Exit Power Turn the monitor On/Off EXIT Exit from the main menu or return to the previous menu Navigate left/adjust or reduce Navigate right/adjust or increase MENU Selects menu item...
-
Page 7: Assembly
ASSEMBLY Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged. Attach the stand arm to the rear of the monitor. Attach the stand arm to the base using the supplied M5x10 screw. Attach the cover plate to the rear of the monitor. - Page 8 Adjust the Angle The angle of the screen can be adjusted forward 5°or backward 15° to create the ideal viewing experience Notes: • Do not touch or press the screen when adjusting the angle of the monitor. • The images below are for illustrative purposed only. Actual monitor may differ slightly.
- Page 9 Place a clean, dry and lint-free cloth on a flat, stable surface. Gently lay the monitor on the cloth with the screen facing down. Identify the four wall mounting screw holes on the back of the monitor. Install the wall mounting bracket (not provided) on the back of the monitor and attach the monitor to the wall according to the mounting bracket's instructions.
-
Page 10: Connectivity
CONNECTIVITY Before connecting the monitor to your PC, shut off the power to both the PC and the monitor. HDMI Connect the provided HDMI cable from the computer’s HDMI port to the monitor’s HDMI port. HDMI Cable (Included) HDMI OUTPUT Connect a DisplayPort cable (not provided) from the computer’s DisplayPort to the monitor’s DisplayPort. - Page 11 USB-C Connect a USB-C cable (not provided) from the monitor’s USB-C port to the computer’s USB-C port. Laptop USB-B & USB-A ports The USB-A ports located on the monitor are designed to act as hubs for connecting peripherals such as a mouse, keyboard, external hard drives, and other USB devices. Once your monitor is connected to the computer via the USB-B port, you can conveniently connect your peripherals directly to the monitor's USB-A ports.
- Page 12 Earphone Audio Out Connect an audio output device (speakers, headphones etc.) to the audio port on the monitor. The monitor may need to be set as the computer’s default sound output device. Earphones (Not included) Power Cable Connect one end of the provided power adaptor to the monitor power port, then connect the other end to a power outlet.
-
Page 13: Operation
OPERATION Connect the monitor to the input device via HDMI/DisplayPort. Connect the power adapter to the monitor and then connect the other end directly to an electrical outlet. Press the power button to turn the monitor on. DisplayPort HDMI FreeSync The feature itself is on by default when setting 75Hz refresh rate. - Page 14 Using the OSD Menu Press the Menu button to bring up the OSD menu. Input source: Auto Source Select the current active signal automatically Switch the input signal to the USB-C channel. USB-C can also provide power to phones and (USB)Type-C laptops Switch the input signal to the DP channel...
- Page 15 Brightness/contrast: Brightness Brightness adjustment, adjustment range 0-100 Contrast Contrast adjustment, adjustment range 0-100 Dynamic contrast switch Turn for faster response and more accurate display of MPRT Fast-moving images.
- Page 16 Colour setting: Gamma Gamma adjustment Picture Mode Picture Mode (Standard/Picture/Movie/Game) adjustment Colour Temperature (Warm/Standard/Cold/User Defined) Colour Temperature adjustment Hue adjustment, adjustment range 0-100 Saturation Saturation adjustment, adjustment range 0-100 Low Blue Light Low Blue Light of adjustment, adjustment range 0-100...
- Page 17 Picture quality setting: Sharpness Sharpness adjustment, adjustment range 0-100 Response Time Response time off/high/middle/low adjustment Noise Reduction Noise reduction off/high/middle/low adjustment Dynamic Luminous Dynamic contrast off/on adjustment Control...
- Page 18 Display: Aspect Ratio Display aspect ratio wide screen Auto adjustment Audio: Mute Audio mute on/off adjustment Volume Audio volume adjustment, adjustment range 0-100...
- Page 19 OSD: OSD language selection English, Chinese, Korean, Russian, Language Spanish, Japanese, French OSD H-Position OSD H-Position adjustment, adjustment range 0-100 OSD V-Position OSD V-Position adjustment, adjustment range 0-100 OSD Transparency OSD Transparency adjustment, adjustment range 0-100 OSD Time Out OSD Time Out adjustment, adjustment range 0-60s OSD Rotation OSD Rotation adjustment, adjustment range 090°180°and 270...
- Page 20 Other: FreeSync Free sync function switch (Adaptive Sync) Off/On Led Switch Off/On Reset OSD Factory reset KVM allows you to access and control a computer by directly connecting the keyboard, video, or mouse (KVM) port.
-
Page 21: Specifications
SPECIFICATIONS Screen Size Aspect Ratio 21:9 Backlight E-LED Brightness 250cd/m Panel Resolution 3440x1440 Refresh Rate 165Hz Response Time Viewing Angle >178°H)/=178°V Contrast Ratio 4000:1 VESA Mounting 100x100 Colours 16.7M FreeSync Signal Input HDMI, DP, USB-C, USB-B, USB-A (3.0) x2, Earphone Out Power DC24V=5A Audio... -
Page 22: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
