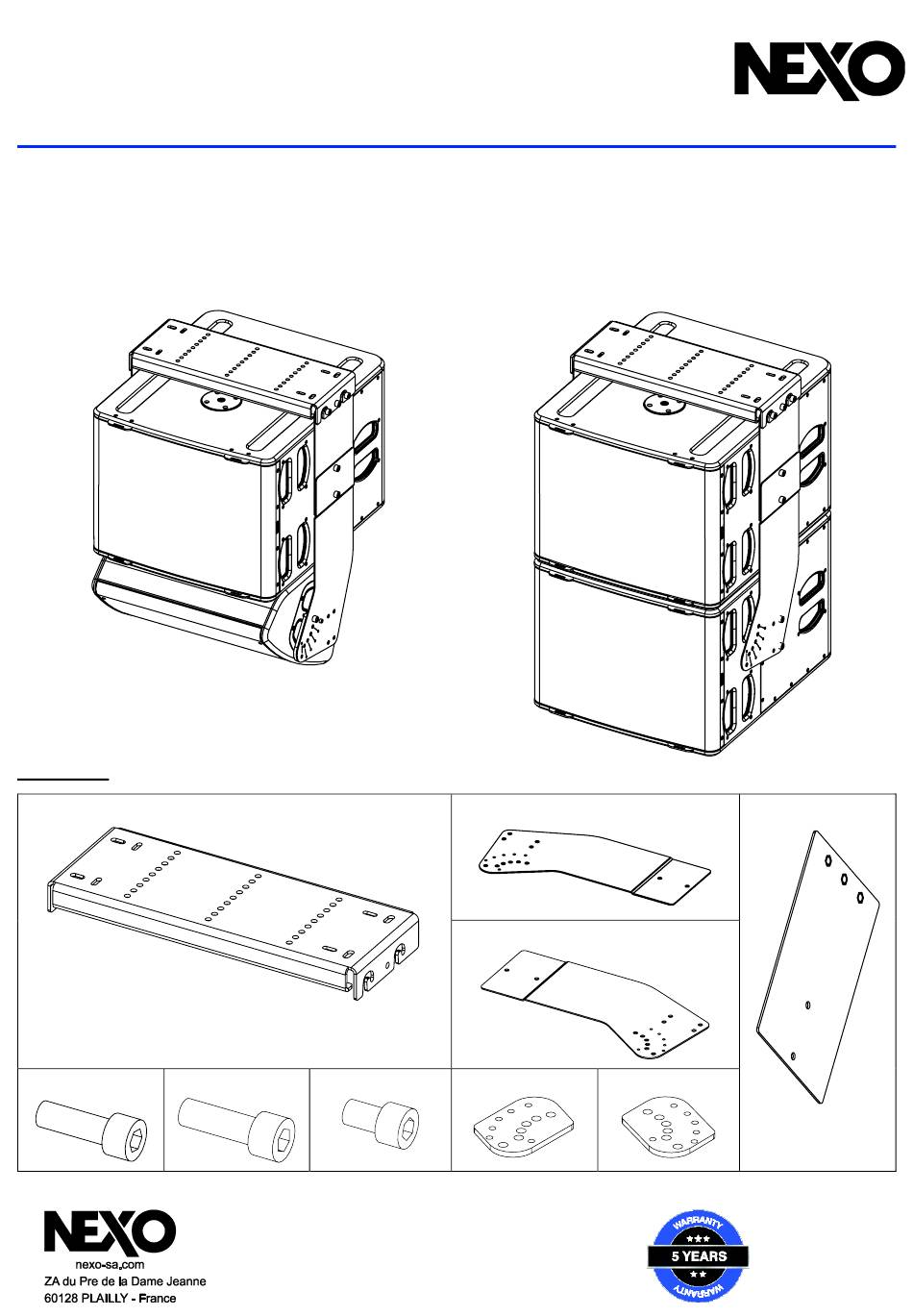

PNI-P12TOL15
DP5262 - 01 - DI
P12 Under L15 Rigging System
Contents:
X1
X8
M10x30
Weight: 16.5 kg / 36.5 lb
Ceiling Plate
X8
X2
M10x16
M6x30
- Read t his docum ent before using.
- Keep t his docum ent .
- Observe all warnings and caut ions.
X1
Left Plate
X1
Right Plate
X1
X1
Left Pad
Right Pad
X2
Main Plate
PAGE 1 OF 4
Advertisement
Related Manuals for Nexo PNI-P12TOL15
Summary of Contents for Nexo PNI-P12TOL15
- Page 1 PNI-P12TOL15 DP5262 - 01 - DI P12 Under L15 Rigging System Contents: Ceiling Plate Left Plate Main Plate Right Plate M10x30 M10x16 M6x30 Left Pad Right Pad Weight: 16.5 kg / 36.5 lb - Read t his docum ent before using.
- Page 2 Dimensions: For fixation, you have the choice between M8 and M10 WARNINGS Ensure that the mounting location and fasteners can support at least 4 times the weight of all the installed cabinets, auxiliary equipment and cables. Use only the provided screws (thread lock coated) and accessories. Mounting of the L15 Prepare the Main plates by screwing the Place the assembly below the ceiling...
- Page 3 Mounting a second L15: Use M10x16 screws CARDIO mode OMNI Mode Mounting a P12 : Place the adhesive left rubber pad on Place the adhesive right rubber pad on Place P12 between the plates, position at the the left plate. the right plate.
- Page 4 -35° -45° -55° • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
