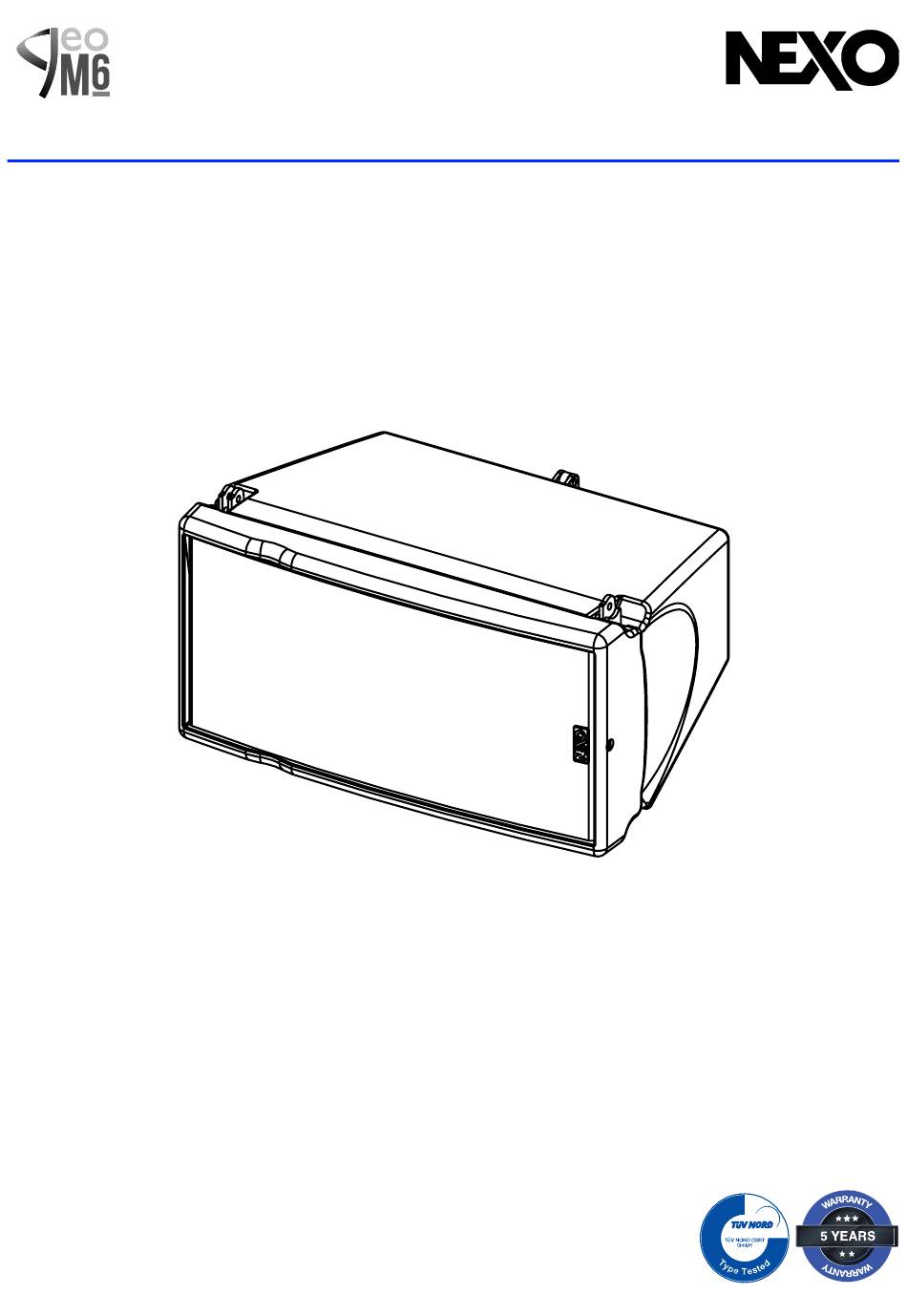

- Page 1 DP4306-01-DI GEO M6 GEOM620 – GEOM6B User manual...
-
Page 2: Table Of Contents
ARRAY EQ ____________________________________________________________________________ 14 MAINTENANCE ________________________________________________________________________ 15 TECHNICAL SPECIFICATIONS ___________________________________________________________ 17 USER NOTES _________________________________________________________________________ 19 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. -
Page 4: Description
GEOM6B: 1+/1- → Amplification: • The GEOM6 cabinets MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeakers. • The following table shows the number of GEOM6 speakers and MSUB12 subwoofers usable with each solution. -
Page 5: Preset Geom6
PRESET GEOM6 PRESET GEOM6 Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the GEOM620 or GEOM6B, with or without directivity flanges, the following setups are available: Passive Mode • Setup for one stand-alone box, with high-pass at 50, 60, 75, 85, 95 or 120 Hz. - Page 6 PRESET GEOM6 Boxes For small flying or stacking configuration, mid throw application used at 60 Hz without MSUB12 and 85 Hz with set up 50-85 Hz for MSUB12. For stack configuration using MSUB12 in OMNI or CARDIO mode with 1 Back and 2 Front and GEOM6 on top of them, MSUB12 should use the 50-85 Hz setup (85 Hz crossover should be used for GEOM6 as well).
- Page 7 PRESET GEOM6 Boxes For long throw flying application used in GEOM6 at 60 Hz without Sub. MSUB12 should use the 50-120 Hz setup (120 Hz crossover should be used for GEOM6 as well). If a larger stacked Sub is used all together, MSUB12 should use the 63-120 Hz setup.
- Page 8 PRESET GEOM6 7-12 Boxes HF O T For very long throw application, MSUB12 should be deployed using the 50-120 Hz setup (120 Hz crossover should be used for GEOM6). Don’t forget to put HF Waveguide either to the exterior or the interior of the venue. Ground Stack Sub design Page 8 / 20 GEOM6B-GEOM620...
-
Page 9: Geom6 Rigging
GEOM6 RIGGING GEOM6 RIGGING Assembly Front Insert quick release pins 5x15mm (VXT-BL515) on both sides (or use GMI-BNFIX). Back Adjust the angle with the lift bar and lock with the quick release pin VXT-BL515 (or fasteners provided with GMI-BNFIX). GEOM6B-GEOM620 Page 9 / 20... -
Page 10: Geom6 - Accessories
All GEOM6 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling GEOM6 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire GEOM6 accessory range if any component is purchased from different supplier. - Page 11 GEOM6 – ACCESSORIES VNT-MNSTKM6 Stacking option for GEOM6 on top of MSUB12 (with GMT-BUMPER). GMT-BUMPER Rated for a maximum of 12 GEOM6. Usable with GMT-EXBAR for a one rigging point. Stacking alone, rated for a maximum of 3x GEOM6. GMT-LBUMP Rated for a maximum of 3 GEOM6.
- Page 12 GEOM6 – ACCESSORIES GMT-LBPADPT Use with GMT-LBUMP GMT-BPADPT-2 Use with GMT-BUMP for stacking. GMT-FLG Pair of flanges for 120°horizontal directivity. VXT-BL515 Quick release pin 5x15mm for touring application. GMI-BNFIX Rigging fix. GMI-IPCOV IP54 connector box VNI-WS15 Wall bracket, use with GMT-LBUMP (3 GEOM6 max) Page 12 / 20 GEOM6B-GEOM620...
- Page 13 GEOM6 – ACCESSORIES VNI-LNKM61018 Adapter MSUB18-I to GEOM6 (with GMI-BNFIX). (max 6x GEOM6) VNT-TCBRK Truss clamp adapter VNT-XHBRK Lifting ring VNT-POLE Pole mount adapter GMT-6CASE: use for 6x GEOM6 and accessories GEOM6B-GEOM620 Page 13 / 20...
-
Page 14: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): Page 14 / 20 GEOM6B-GEOM620... -
Page 15: Maintenance
MAINTENANCE MAINTENANCE Front panel disassembly Remove the grid (2 screws Tx25). Remove external 120° flange (2 screws Tx20). Remove 4 screws Tx25 to access to the speaker. Remove the front cabinet (6 screws Tx25). Tightening torque: 3,5 Nm Remove 4 screws (Allen 3), remove the cover and Remove 3 nuts (Hex10) to access to the speaker. - Page 16 Recone kit HPB6-F 05LEXWARM6 Lexan warning 05GEOM6LKB LinkBar 05LEXRIGM6AG Lexan angle 05GEOM620-FPA Connecting plate 05LEXCNX620 Lexan GEOM620 05LEXCNX6B Lexan GEOM6B 04VXT-BL515 Quick release pin 5x15 NOTE: Speakers and Grills can be sent back to NEXO for recycling Page 16 / 20 GEOM6B-GEOM620...
-
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS GEOM620 WITH NEXO ELECTRONICS Model GEOM620 75Hz – 20kHz Frequency range (±6dB) Sensibility (1W / 1m) 95dB SPL Nominal Peak SPL Level (1m) 128dB Operating voltage 30 Vrms Vertical Dispersion 20° Horizontal Dispersion 80° or 120° (with flanges GMT-FLG) - Page 18 TECHNICAL SPECIFICATIONS GEOM6B WITH NEXO ELECTRONICS Model GEOM6B 70Hz – 1kHz Frequency range (±6dB) Sensibility (1W / 1m) 94dB SPL Nominal Peak SPL Level (1m) 125dB Operating voltage 30 Vrms Ω Nominal Impedance Recommended Amplification 450 W per cabinet SPECIFICATIONS...
-
Page 19: User Notes
USER NOTES USER NOTES GEOM6B-GEOM620 Page 19 / 20... - Page 20 USER NOTES NEXO S.A. Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne F-60128 PLAILLY nexo-sa.com Page 20 / 20 GEOM6B-GEOM620...
