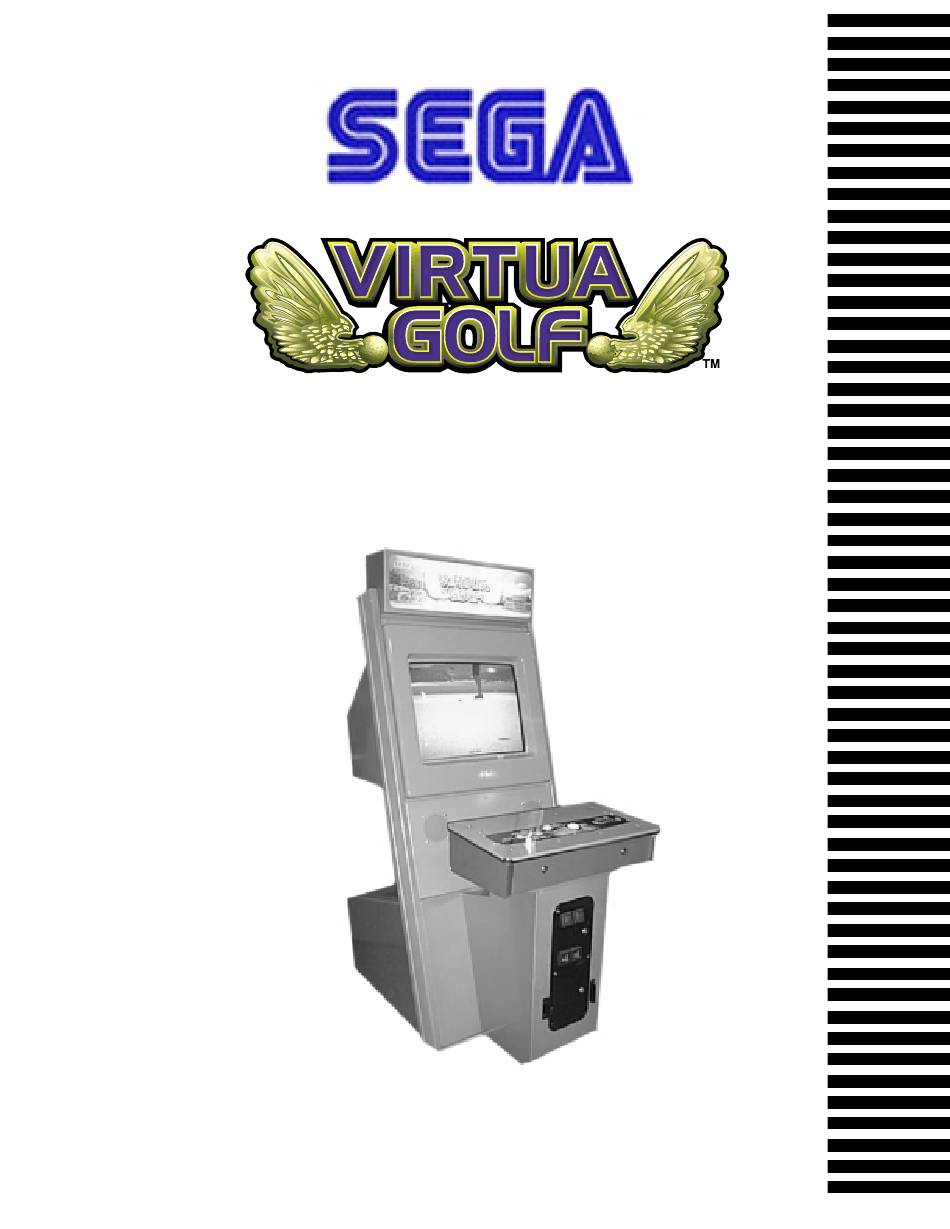

1ST PRINTING APRIL 01
Upright Version
Owner's Manual
Owner's Manual
Owner's Manual
Owner's Manual
Owner's Manual
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-1206

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Virtua Golf and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sega Virtua Golf

Summary of Contents for Sega Virtua Golf

  • Page 1 1ST PRINTING APRIL 01 Upright Version Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual Owner’s Manual SEGA ENTERPRISES, INC. USA MANUAL NO. 999-1206...
  • Page 2 Warranty Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman- ship or materials under normal operating conditions. This also certifies that all Interactive Control Assemblies are to be free from defects in workmanship and materials under normal operating condi- tions.

  • Page 3: Before Using The Product

    BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain the safety: To ensure the safe usage of the product, be sure to read the following before using the product. The following instructions are intended for the users, operators and the personnel in charge of the operation of the product. After carefully reading and sufficiently understanding the warning displays and cautions, handle the product appropriately.

  • Page 4: Inspections Immediately After Transporting The Product To The Location

    SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: TABLE OF CONTENTS INTRODUCTION OF THE OWNER’S MANUAL 1. HANDLING PRECAUTIONS ..................2. INSTALLATION PROCEDURE ..................3. SPECIFICATIONS ......................4. CONTENTS OF GAME ....................4 - 9 5.
  • Page 7 DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN Non-technical personnel who do not have technical knowledge and expertise should refrain from performing such work that this manual requires the location's maintenance man or a serviceman to carry out, or work which is not explained in this manual.

  • Page 8: Handling Precautions

    1. HANDLING PRECAUTIONS To prevent electric shock or IC Board malfunctioning, be sure to turn off the power for the cabinet when installing or removing the IC Board. Extraneous matter such as dust on the IC Board can cause the IC Board to generate heat and result in a fire due to short circuit, etc.

  • Page 9: Installing Procedure

    Service Manual of each game. 2 - 1 SET THE GD-ROM DISK Set the GD-ROM disk (VIRTUA GOLF) onto the GD-ROM drive. On the NAOMI DIMM Board, paste the accompanying sticker (442-00065B) in the position indicated in the figure below.

  • Page 10: Specifications

    3. SPECIFICATIONS ON-SCREEN DISPLAY Monitor Position Horizontal Synchronous Frequency HORIZONTAL 15/31 kHz CONTROL PANEL START SW UP TRACK BALL SW LEFT SW RIGHT SW DOWN Minimum DIMM Memory Capacity 256 MB...

  • Page 11: Contents Of Game

    4. CONTENTS OF GAME Playable Persons : 1 to 4 Game Modes : "Stroke Play", "Match Play", "Skins Game". "18-Hole Challenge" Courses : 1 (Selectable among from Start Hole, IN and OUT)

  • Page 12: Basic Operations

    Characters : 4 (with parametric individual variation) After throwing a coin into the slot, select the number of players, the game mode, the character, and the starting hole. Use the Track Ball to select the desired item before determining it with the Start button. BASIC OPERATIONS Shot Power adjustment...
  • Page 13 SPINS You can spin the ball in the following ways, in addition, make operations as desired ("Spin a little amount," "Spin a large amount," etc): The spinning is determined by the angle of rolling the Track Ball. Power adjustment Shot BACK OR TOP SPIN BY ADDITIONAL INPUT The spinning can be fine-tuned immediately after shooting.
  • Page 14 Before you play..Rear button Used the Track Ball to view around. Left button Right button Will move player left. Will move player right. Front button The player can view around wider Help-Mat will be indicated when putting. surroundings by combining this with the Track Ball.

  • Page 15: Screen Description

    SCREEN DESCRIPTION Top left: Player Information In top-to-bottom order: Name: Rewritten, depending on name entries that may be made while the game is in progress. Present Score: Cumulative prize money for the Skins Game, or UP value for Match Play. Number of Strokes Pictorial Indication of Number of Strokes: The number of balls increases by 1 each time the player shots the ball.
  • Page 16 CAMERAS If you desire to zoom out in on a far area, you can use a camera. One of the cameras is raised by pressing the button located toward you (Front button). Then, turn the Track Ball to view around wider surroundings. This function is useful to keep track of the green and the difference of elevation.

  • Page 17: Test Mode

    5. TEST MODE A. SYSTEM MENU When settings are changed in SYSTEM ASSIGNMENTS, COIN STOP ASSIGNMENTS, and GAME ASSIGNMENTS of GAME TEST MODE, be sure to exit from the test mode of SYSTEM MENU IMPORTANT screen. The contents of setting changes are stored in the IC on the BOARD when exiting from the Test Mode.
  • Page 18 B. GAME TEST MODE Press the Service button to move the -> mark to any desired item, and press the Test button. Then the corresponding screen appears. [ VIRTUA GOLF ] TEST MENU INPUT TEST GAME ASSIGNMENTS BOOKKEEPING BACKUP DATA CLEAR ->...

  • Page 19: Input Test

    a. INPUT TEST This screen tests the input devices. Make sure that each of the input devices can change its indication from OFF to ON as you operate the corresponding device. If the ROTARY UD and LR values and the data of the square in the right area on the screen vary according to operations of the Track Ball, this indicates that the input devices and wiring connections are normal.
  • Page 20 b. GAME ASSIGNMENTS The settings such as the difficulty of the game can be made. Press the Service button to move the arrow to the item for which you desire to change the setting. Pressing the Test button changes the display located at the right of the currently selected item, resulting change in setting.
  • Page 21 c. BOOKKEEPING The following three BOOKKEEPING screens (PAGE 1/3, 2/3, and 3/3) display the operating data. BOOKKEEPING GAME REPORT PAGE1/3 NUMBER OF GAMES 1P 3P GAMES 2P 4P GAMES NUMBER OF CONTINUE 1P 3P GAMES 2P 4P GAMES TOTAL COIN COIN CREDIT SERVICE CREDIT TOTAL CREDIT...
  • Page 22 "TIME HISTOGRAM" shows the number of players associated with the respective play times and contains the rate graph. The rate graph indicates the rate of the count of plays by play time that is calculated assuming that the play time for the maximum number of plays is 100%. This graph is shown with the corresponding number of asterisks (*).

  • Page 23: Backup Data Clear

    d. BACKUP DATA CLEAR This screen is used to clear the data from the Score Ranking and Bookkeeping. You can clear the data by selecting YES (CLEAR) and then pressing the Test button. Once the data is cleared, "COMPLETED" displays and the GAME TEST MENU screen returns automatically.

  • Page 24: Game Board

    6. GAME BOARD Do not expose the Game Board so as to avoid causing an accident or malfunctioning. Static electricity discharge can damage electronic parts on the IC Board. Before starting work by opening the Shield Case Lid, be sure to touch grounded metallic surfaces to discharge physically charged static electricity.
  • Page 25 442-00065B (STICKER 840-0065B) Attached place PART NO. DESCRIPTION 840-0001F ASSY CASE NAO DIMM BD COM KEY CHIP 1 + 2 840-0065B DIMM BD NAO DYNAMIC GOLF...

  • Page 26: Soft Kit

    7. SOFT KIT STOP Handling the GD-ROM Disk Do not contaminate the disks with your IMPORTANT fingerprints or dust particles. Contaminated disks may lower audio and video quality. When cleaning the disks, do not use volatile chemicals (benzine, thinner, etc.), cleaning sprays, and antistatic agents.
  • Page 27 PART NO. DESCRIPTION 610-0630-0009 GD SOFT KIT D.GOLF ENG GDS-0009 * NAOMI GDROM D.GOLF KEY CHIP 420-6621-0009E SERVICE MANUAL D.GOLF ENG 253-5507 DISK CASE WITH IC HOLDER...

  • Page 28: Coin Selector

    8. COIN SELECTOR HANDLING THE COIN JAM If the coin is not rejected when the REJECT button is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions.
  • Page 29 WELLS-GARDNER WGD15-2110-01 ELECTRONICS CORPORATION OVER/UNDER MINI DOOR 2701 N. KILDARE CHICAGO, IL 60639 2 ENTRIES WITH BILL 1-800-336-6630 WWW.WGEC.COM VALIDATOR BOTTOM DOOR & SPECIAL ENCLOSURE W.G. PART # DESCRIPTION S-7 US 25c COIN MECH LEFT 812-4150-011 S-10 US $1 COIN MECH RIGHT 812-4050-011 HINGE SCREW 890-1002-00...
  • Page 31 OPTIONAL DOLLAR BILL ACCEPTOR THE COIN DOOR ASSEMBLY USED ON VIRTUA GOLF UPRIGHT COMES EQUIPPED TO ACCEPT A DOLLAR BILL ACCEPTOR. ALL NEEDED WIRING CONNECTIONS ARE CONVIENENTLY LOCATED INSIDE THE GAME FOR THIS APPLICATION. THE COIN DOOR CAN ACCCOMMODATE THE FOLLOWING...
  • Page 32 **Coin door shown with optional dollar bill validator inserted**...

  • Page 33: Design Related Parts

    9. DESIGN RELATED PARTS ITEM NO. PART NO. DESCRIPTION 999-1199 MARQUEE STYRENE GOLF 999-1203 SEGA LOGO STICKER 999-1201 DECAL INSTR. #2 CTL PNL GOLF 999-1202 DECAL CONTROL PANEL GOLF 999-1200 DECAL INSTR. #1 BEZEL GOLF...

  • Page 34: Parts List

    10. PARTS LIST 1 TOP ASSY (D-1/2)
  • Page 35 1 TOP ASSY (D-2/2) ITEM NO. PART NO. DESCRIPTION 999-1191 WOOD SHELF HOUSING (COBALT BLUE) CONTOL PANEL 999-0167 LEG LEVELER 1/2 - 13 999-0169 CASTER 160-2 1/2 999-1190 SERVICE COMPARTMENT DOOR 999-1196 UPRIGHT LEFT - SILVER METALIC NOT SHOWN 999-1195 UPRIGHT RIGHT - SILVER METALIC 999-1187 MONITOR COVER ASSY...
  • Page 36 1 ASSY CTRL PNL 1T4B ENG (NOA-20007-01) (D-1/2)
  • Page 37 1 ASSY CTRL PNL 1T4B ENG (NOA-20007-01) (D-2/2) ITEM NO. PART NO. DESCRIPTION 999-143-000 CTRL PNL BASE 1T4B 999-1205 I/O BD BRKT 837-13938 I/O CONTROL BD FOR JVS ENCODER 610-0595 ASSY TRACK BALL 421-11172 STICKER XY MJ-2016 REINFORCE PLATE 999-1184 PUSHBUTTON HORIZ.
  • Page 38 2 ELEC ASSY ITEM NO. PART NO. DESCRIPTION 840-0051D-01 ASSY CASE NAO DIMM BD US 600-7009-2500 ASSY RGB CA D-SUB 15P 2500MM 837-13551-92 I/O CONTROL BD FOR JVS 600-7141-0250 USB CABLE 250CM (2 per) 400-5397-01 POWER SUPPLY LOC. PURCHASE FUSE BLOCK LOC.
  • Page 39 3 SW UNIT ITEM NO. PART NO. DESCRIPTION LOC. PURCHASE 6V COIN METER LOC. PURCHASE PUSHBUTTON SW MOMENTARY LOC. PURCHASE 5K POTENTIOMETER...
  • Page 40 4 FAN UNIT ITEM NO. PART NO. DESCRIPTION LOC. PURCHASE 4” FAN 120V LOC. PURCHASE ROCKER SW 15 AMP...
  • Page 41 - ATTENTION - Your Virtua Golf Upright game ships with all necessary conversion parts to make your game into Virtua Tennis. These parts have been included at no additional charge to you. The Kit contents are as follows: PART NO.

  • Page 42: Wire Color Code Table

    11. WIRE COLOR CODE TABLE THE WIRE COLOR CODE is as follow: PINK SKY BLUE BROWN PURPLE LIGHT GREEN Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters. BLUE YELLOW GREEN WHITE ORANGE...

  • Page 44: Visit Our Website

    VISIT OUR WEBSITE!
