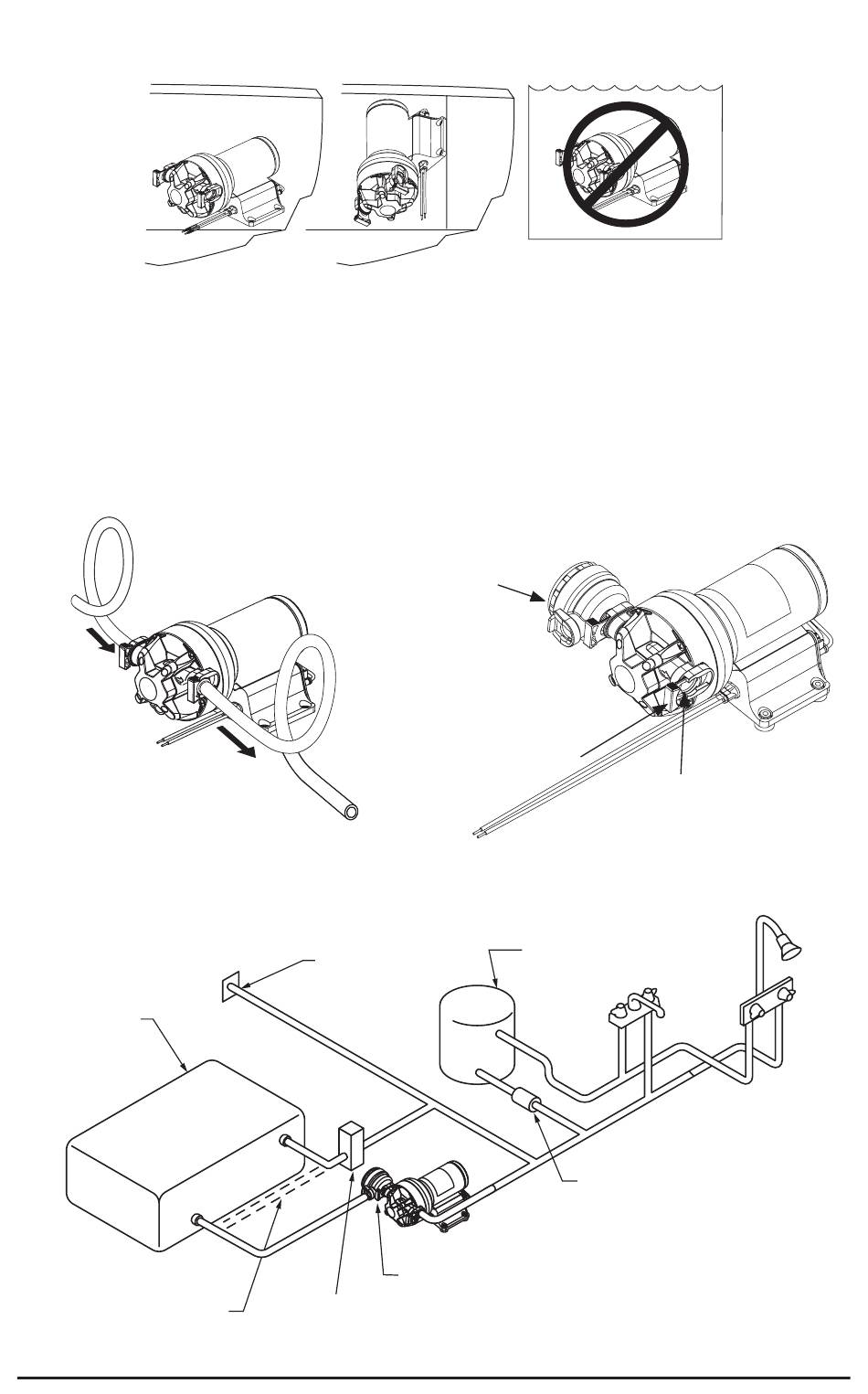

1: Select pump location. Pump must be installed in a dry, ventilated area.
2: Connect fittings supplied with the pump to the vessels
plumbing. Use 1/2" (13mm) or 3/4" (19mm) I.D. flexible hose
(preferably braided or reinforced) to reduce vibration through
the plumbing system (Figure 1). Use hose clamps on the slip
on barb hose connectors.
Important: Install pumpgard inlet strainer to protect valves
from debris.
Water
tank
Do not plumb autofill to
pump suction line
Horizontal
Figure 1.
City water inlet
Autofill tank valve,
plumb to tank
Figure 2.
Vertical
3: Fasten pump to a flat surface. If mounting vertically; install
with pumphead down (Figure 2). Do not over tighten screws
to allow rubber mounts to absorb vibration.
4: Install inlet (A) and discharge (B) fittings. Firmly push port
clips (C) towards motor to lock fittings in place. (Figure 3)
5:
DO NOT INSTALL AN ACCUMULATOR TANK WITH THE
SENSOR-MAX II PUMP. If an accumulator tank is installed
in your fresh water system, please remove all air pressure by
depressing air valve on top of the accumulator tank.
Pumpgard inlet
strainer (A)
Port clip (C)
Figure 4.
Water
heater
Pumpgard
inlet strainer
3
NOTE: Do not submerge
Figure 3.
Discharge (B)
Check valve
