Summary of Contents for Xylem JABSCO Ballast SuperKing

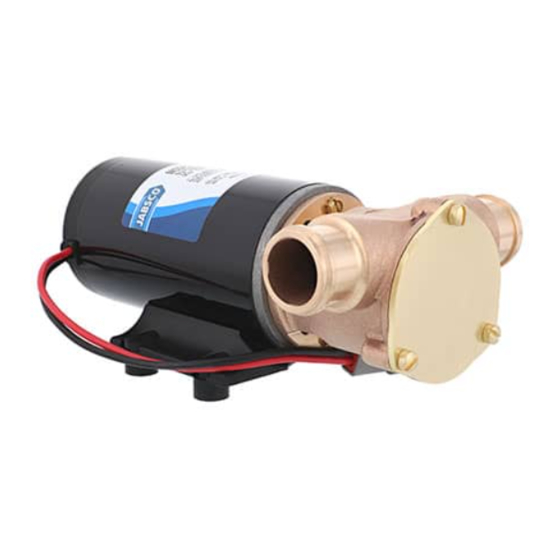

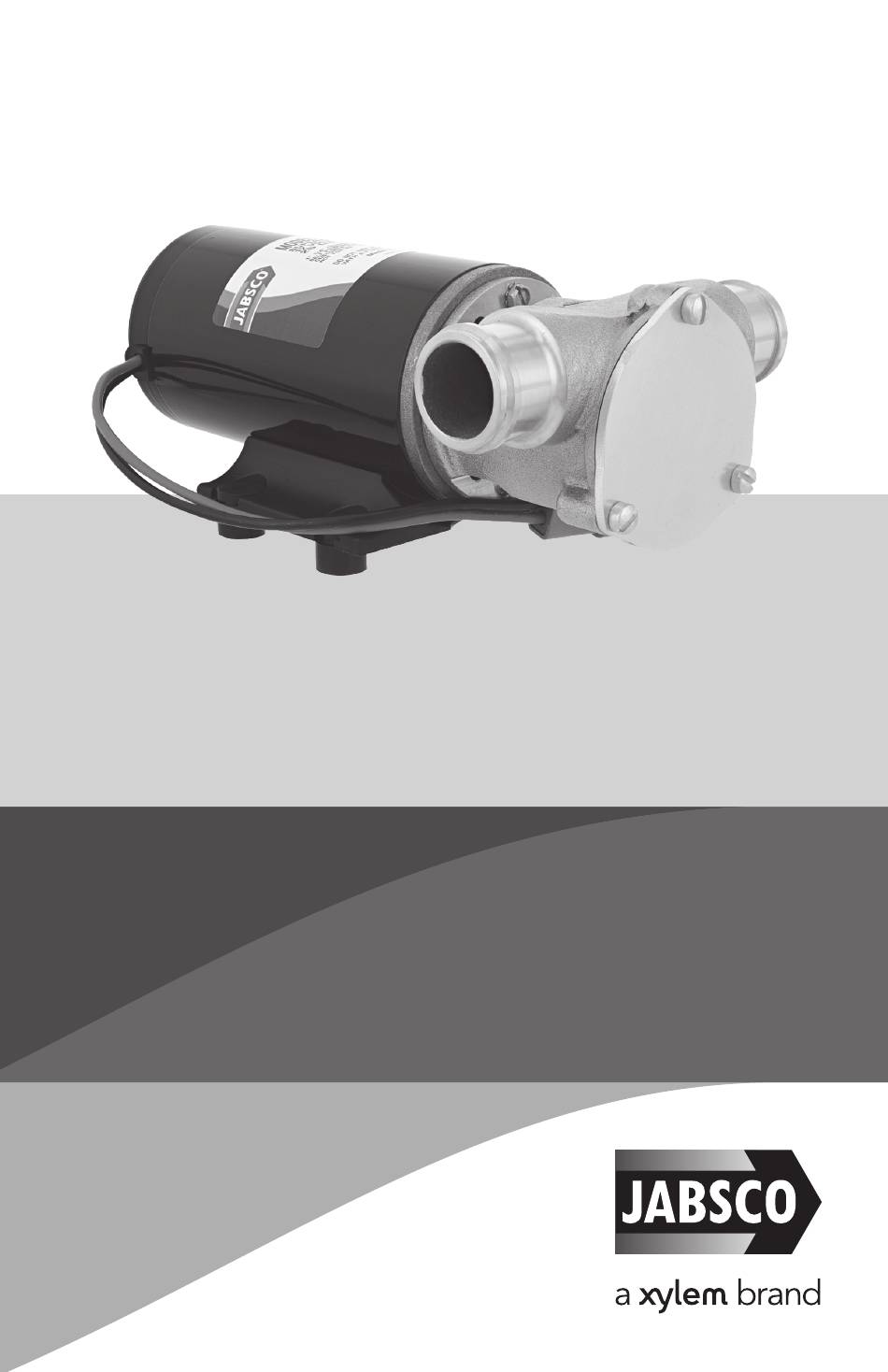

- Page 1 Ballast SuperKing DC Flexible Impeller Pump...
-
Page 2: Safety Information
Ballast SuperKing DC Flexible Impeller Pump SYMBOLS IN THIS INSTRUCTION MANUAL AND PACKAGING Caution, risk of danger. See note or adjacent symbol. Caution hot surface Caution / risk of electric shock. Recyclable packing material. Do not dispose of product in normal domestic waste. SAFETY INFORMATION WARNING! It is not recommended to run SuperKing... -
Page 3: Installation
Pump Unit Information: WARNING! • 33610-0107 − 1-1/4” Hose Barb, 12Vdc. It is the installer’s responsibility to use Intermittent duty cycles of 5 minutes ON and hoses with suitable properties. The use 10 minutes OFF. of hose that is not suitable could cause damage to the pump, operator or the Pump Application surrounding environment. - Page 4 PUMP ASSEMBLY AND DISASSEMBLY • Fit the impeller with a rotating movement in the intended direction of the pump rotation. 1. Disassembly • Lubricate the o-ring with water, fit it in position • Remove the end cover screws and remove the and fasten the end cover screws to the body.
- Page 5 Dimensional Drawings - inches (mm) 5.12 (130) 3.74 (95) .64 (16.3) 3.56 (90.4) 2.56 (65) .89 (22.5) 1.36 1.25 (34.45) (31.75) 2 PLCS 2 PLCS 2.80 (71.1) Deutsch DTP04-2P Pin 1 - Positive Pin 2 - Negative 8.98 (228) 1.18 (30) 3.58 (91) 1.99 (50.6)
-
Page 6: Product Operation
PERMITTED FLUIDS: has been manipulated and lost its full • For use with fresh water and salt water. enclosure. • Do not use any Jabsco Ballast SuperKing WARNING! pump for petrol, petroleum products or any The working temperature of the motor products with a flash point below 100°F... -
Page 7: Kits And Accessories
MAINTENANCE, SERVICE AND CUSTOMER REPAIR • The Jabsco Ballast SuperKing pump is designed to require minimal amounts maintenance. • However it is recommended as good practice to: • Check that all hose connections are not loose and keep the inlet filter clean once a week •... - Page 8 Warranty: XYLEM LIMITED WARRANTY WARRANTS THIS PRODUCT TO BE FREE OF DEFECTS AND WORKMANSHIP FOR A PERIOD OF 1 YEAR. THE WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER EXPRESS OR IMPLIED WARRANTIES, GUARANTEES, CONDITIONS OR TERMS OF WHATEVER NATURE RELATING TO THE GOODS PROVIDED HEREUNDER, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY EXPRESSLY DISCLAIMED AND EXCLUDED.
