- Page 1 BRIGHT 7.5/8.5/9.5/10.5kW Installation and User Guide IMPORTANT: This booklet should be left with the user after installation and demonstration...
- Page 2 Contents Installation Guide 1 – Pack Contents 2 – Installation Check List 3 – Important Safety Information 4 – General Installation Layout Guide 5 – Important Installation Information 6 – Fixing the Shower to the Wall 7 – Product Positioning Guide 8 –...

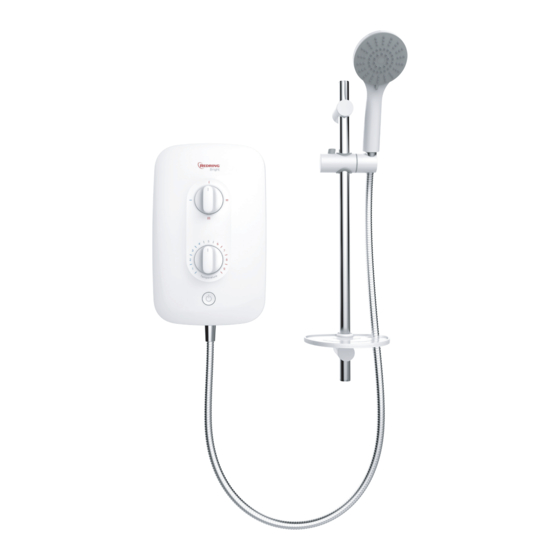

- Page 3 1. Pack Contents Please make sure ALL components are included before starting the installation. Shower Unit Shower Handset Riser Rail Tube Riser Rail Brackets x 2 Riser Rail Height Adjuster Flexible Shower Hose Soap Dish Screw Pack Installation and User Instructions 2.
- Page 4 3. Important Safety Information Products manufactured by Redring Xpelair Group are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. MAINS SERVICE CONNECTIONS: The shower unit is supplied for right entry and left entry, please see Section 8 &...
- Page 5 4. General Installation Layout Guide • Plan your installation carefully. Check on • For example the mains feed to a toilet as the nearest and most accessible rising this may cause a drop in pressure to a level main water supply, this may be beneath that is too low for the shower unit to work the bath or in the loft, where it feeds the correctly.
- Page 6 5. Important Installation Information accordance with BS 7671 (IET wiring regulations), building regulations, water regulations accordance with BS EN 806. • This shower unit is designed to be • Plumbers jointing compound must not connected to a 15mm cold water mains supply.
- Page 7 7. Product Positioning Guide Shower unit can be mounted either side of riser rail. Height of shower handset and shower to suit user’s requirements Soap dish Hose retaining ring 25mm minimum Spillover level Outline of bath or shower tray Spillover level...
- Page 8 8. Plumbing Connections The shower back plate incorporates into the lower right and left side a removable corner section to allow easy access when deciding on 6. If rear entry pipe work is used we and connecting to the water mains supply. recommend the use of a suitable sealant to seal around the incoming pipe work to 1.
- Page 9 9. Electrical Connections 1. The incoming cable should be hidden. The electrical installation must be in Connect as follows: accordance with the current BS 7671 (I.E.T. wiring regulations) and part P of the building Earth cable to terminal marked and / or local regulations. Neutral cable to terminal marked N The shower unit is designed for a single phase Live cable to terminal marked L...
- Page 10 Electrical Connections Cont.. IMPORTANT: The use of connections within the unit or other points in the shower circuit to supply power to other equipment such as an extractor fan or pump etc will invalidate the guarantee. The diagram below shows a schematic wiring diagram. 1.
- Page 11 11. Riser Rail Fitting Instructions 1. Establish position for the riser rail, and mark the wall for the lower mounting bracket. Make allowances for the tallest person likely to use the shower regularly. 2. Remove covers from the wall brackets. 3.
- Page 12 12. Commissioning The Shower IMPORTANT: Make sure that the electricity supply has been disconnected at the isolation switch. 11. Now adjust the bottom rotary temperature 1. Turn the top rotary power selector knob; control knob clockwise for hotter water allowing a few seconds for the temperature setting.
- Page 13 13. Troubleshooting Checklist For The Installer IMPORTANT: WARNING: SWITCH OFF THE ELECTRICAL ISOLATION SWITCH BEFORE REMOVING THE FRONT COVER TO MAKE CHECKS. Q. Water too cold. A. Check the circuit through the thermal cut out. Check circuit through the two sheathed Q.
- Page 14 1. Important Safety Information Products manufactured by Redring Xpelair Group are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. FOR THE USER: DO NOT operate the unit if the handset or shower hose becomes damaged.
- Page 15 2. Operating The Shower 1. Switch on the electrical supply at the 4. The temperature control knob alters the isolation switch. outlet temperature by increasing or reducing NOTE: We recommend that you do not stand unit. under the spray from the shower handset when switching on –...
- Page 16 3. How Your Shower Works 1. The cold incoming water is heated 6. A thermal cut-out is mounted on top of the heat exchanger. elements in the heat exchanger assembly. Stage 1 switches the power off to the 2. At the start up the shower will reach elements if it senses an excessive temperature in 20–30 seconds.
- Page 17 Contact partially or fully blocked. These would a plumber for advice. need to be replaced. Please contact Redring Customer Service. Q. The shower hose or shower hand set Q. The shower cycles from hot to cold.
- Page 18 What is not covered by an Redring warranty? warranty does not cover any of the to your y t l outside the warranty...
- Page 19 7. Energy Related Product Directive (ErP) This information shows how our products pass the relevant European Union Energy Directives (ErP). Supplier's / Manufacturer REDRING BRIGHT Supplier's Model Number RBS7 RBS8 RBS9 RBS10 Annual Engery Consumption (KWh / annum) Thermostat Temperature Setting (°C)
- Page 20 To speak to customer services please contact (UK & ROI): Redring (a part of RKW Ltd) Sutton House, Berry Hill Road, Stoke-on-Trent, Staf f ordshire, ST4 2N L Af tersales: +44 [0]333 220 6095 Sales: +44 [0]333 220 6070 Email: redringsupport@rkwltd.com For Republic of Ireland Customers ON LY.
