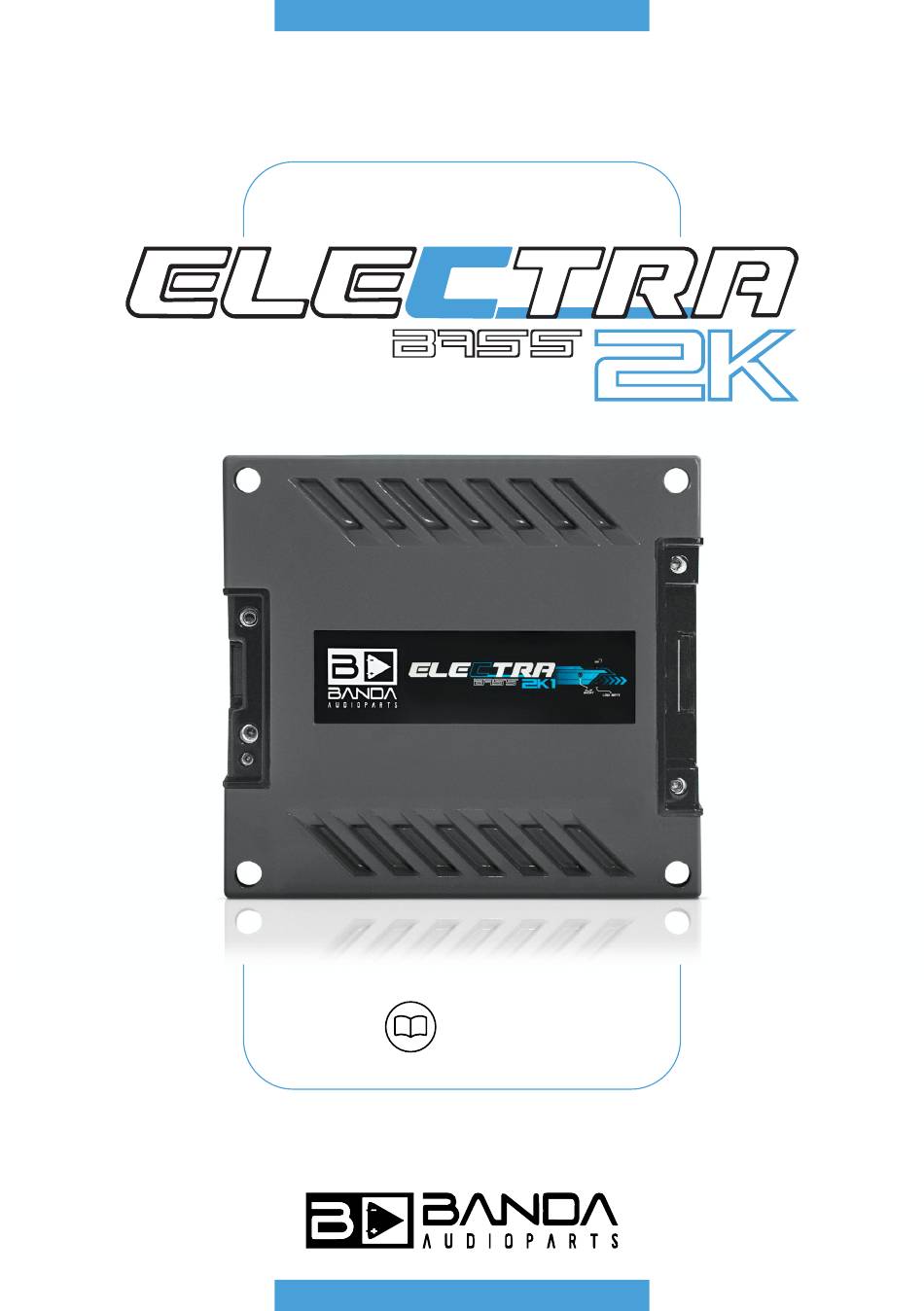

- Page 1 INSTRUCTION MANUAL Read before using...
- Page 2 TABLE OF CONTENTS Introduction Description Technical Specifications Solutions to potential problems /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial www.bandaaudioparts.com.br...
- Page 3 INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference.
-
Page 4: Power Unit
DESCRIPTION SIDE POWER UNIT FRONT PANEL (LEDS) POWER UNIT POSITIVE NOTE: USE EXTERNAL FUSE... -
Page 5: Front Panel Leds
DESCRIPTION FRONT PANEL (LEDS) Blue LED (ON): indicator of source and amplifier on. Red LED (CLIP SHORT): indicator of distortion at the output (clipping), short circuit and thermal protection. Yellow LED (LOW BATT): indicator of battery voltage below the specified (flashing) SIDE GAIN SUBSONIC... -
Page 6: Connection Examples
DESCRIPTION CROSSOVER KEY Allows you to turn off or on the Subsonic, Crossover and Bass Boost adjustments. This function, when selected in the OFF position, leaves the device with only signal adjustment (input sensitivity), making the amplifier completely FLAT (response of 5Hz - 500Hz @-3dB). We recommend using this function only for more experienced users. - Page 7 DESCRIPTION CONNECTION EXAMPLES ELECTRA 2K1 ELECTRA 2K2 ELECTRA 2K4 2 Woofers or Subwoofers 2 Woofers or Subwoofers 2 Woofers or Subwoofers 2 ohms 1000Wrms each 4 ohms 1000Wrms each 8 ohms 1000Wrms each connected in parallel resulting in connected in parallel resulting in connected in parallel resulting in 2000Wrms @ 1 Ohm 2000Wrms @ 2 Ohms...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL ELECTRA 2K1 ELECTRA 2K2 ELECTRA 2K4 Maximum Power 14.4v @ 1 Ohm 2600 WRMS Maximum Power 14.4v @ 2 Ohms 2000 WRMS 2700 WRMS Maximum Power 14.4v @ 4 Ohms 1800 WRMS 2700 WRMS Maximum Power 14.4v Bridge @ 2- 4 Ohms Maximum Power 12.6v @ 1 Ohm 2000 WRMS... - Page 9 TECHNICAL SPECIFICATIONS MODEL ELECTRA 2K1 ELECTRA 2K2 ELECTRA 2K4 Bass Boost 30Hz to 80Hz 0 to +12dB HPF (Subsonic) 20 - 80Hz @ 12dB/oitava Linkwitz-Riley LPF (Crossover) 80 - 500Hz @ 12dB/oitava Linkwitz-Riley Recommended Fuse Rest Current Maximum Current (sine signal) 220 A 235 A 235 A...
- Page 10 SOLUTIONS TO POTENTIAL PROBLEMS PROTECTION SYSTEM PROBLEM SOLUTION Install the appliance in a well-ventilated place and ensure that the ventilation Amplifier temperature has Blue & Red LED On system is not obstructed. The amplifier will reached the operating limit. return to normal operation as soon as the temperature drops.
-
Page 11: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial www.bandaaudioparts.com...
