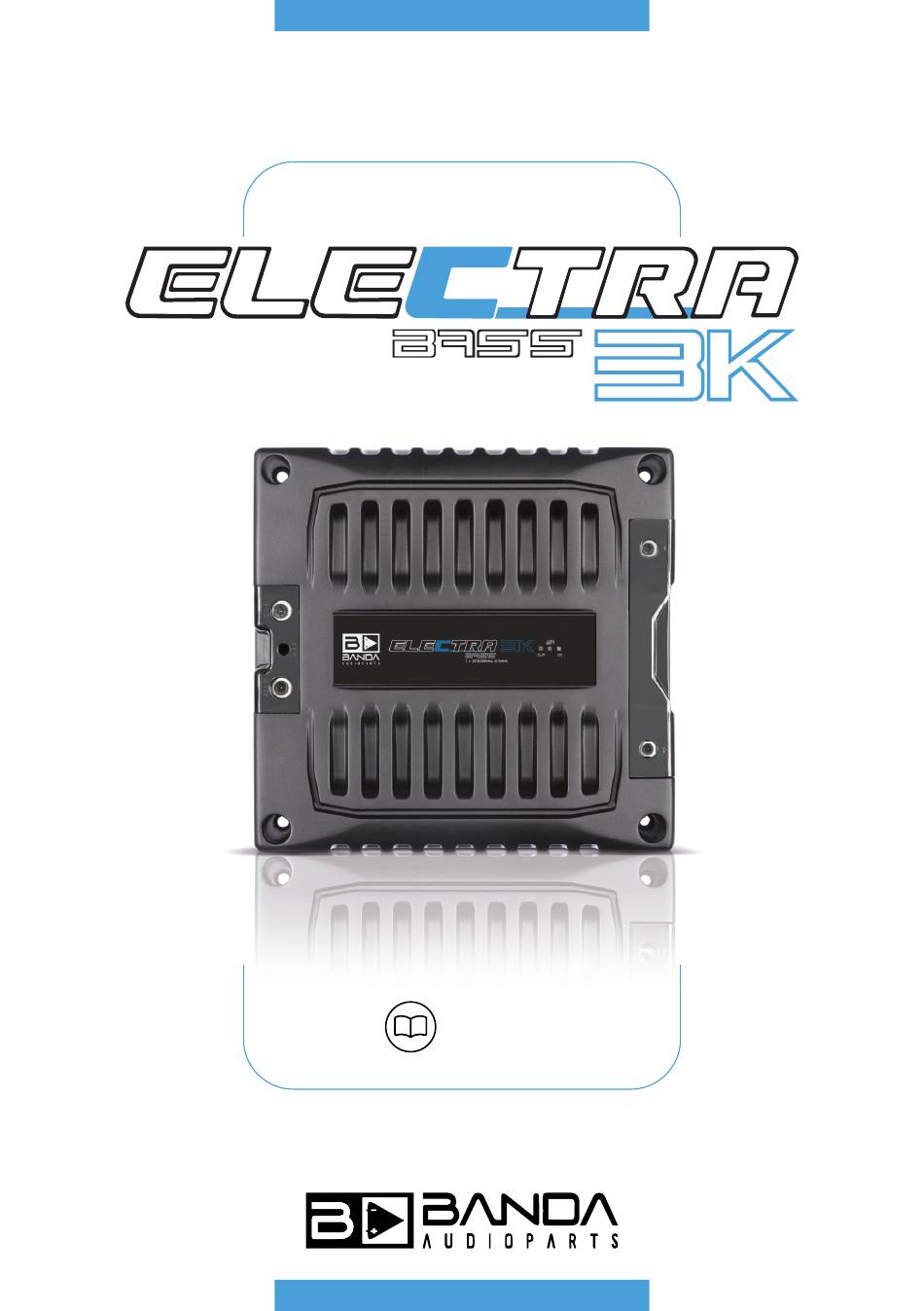

- Page 1 INSTRUCTION MANUAL Read before using...
- Page 2 TABLE OF CONTENTS Introduction Description Technical Specifications Solutions to potential problems /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
- Page 3 INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference.
- Page 4 DESCRIPTION POWER UNIT GND INPUT GND REM. 12 VDC Connect to the vehicle chassis (Ground) DRIVE INPUT 12VDC (+) Connect electrical antenna (Remote) 12VDC POSITIVE INPUT NOTE: USE EXTERNAL FUSE FRONT PANEL (LEDS) Yellow: Battery voltage below specified (flashing) Blue (ON): ON Red (SHORT): Protection Output short (check speakers)/Temperature above limit...
-
Page 5: Connection Examples
DESCRIPTION SIDE CONNECTION EXAMPLES ELECTRA 3K1 ELECTRA 3K2 ELECTRA 3K4 4 Woofers or Subwoofers 4 Woofers or Subwoofers 4 Woofers or Subwoofers 4 ohms 750Wrms each connected 8 ohms 750Wrms each connected 16 ohms 750Wrms each in parallel resulting in 3000Wrms in parallel resulting in 3000Wrms connected in parallel resulting in @ 1 ohm... - Page 6 DESCRIPTION CONNECTION EXAMPLES ELECTRA 3K1 ELECTRA 3K2 ELECTRA 3K4 2 Woofers or Subwoofers 2 Woofers or Subwoofers 2 Woofers or Subwoofers 2 ohms 1500Wrms each 4 ohms 1500Wrms each 8 ohms 1500Wrms each connected in parallel resulting in connected in parallel resulting in connected in parallel resulting in 3000Wrms @ 1 ohm 3000Wrms @ 2 ohms...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL ELECTRA 3K1 ELECTRA 3K2 ELECTRA 3K4 12,6V 1ohm - 12,6V 2ohms - 12,6V 2ohms - 3000Wrms 3000Wrms 3000Wrms 12,6V 2ohms - 12,6V 4ohms - 12,6V 4ohms - 2100Wrms 1700Wrms 1700Wrms Efficiency Nominal Impedance Tension 9 - 15V Input Impedance 100K 0hms THD + N... - Page 8 SOLUTIONS TO POTENTIAL PROBLEMS PROTECTION SYSTEM PROBLEM SOLUTION Install the appliance in a well-ventilated place and ensure that the ventilation Amplifier temperature has Blue & Red LED On system is not obstructed. The amplifier will reached the operating limit. return to normal operation as soon as the temperature drops.
-
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
