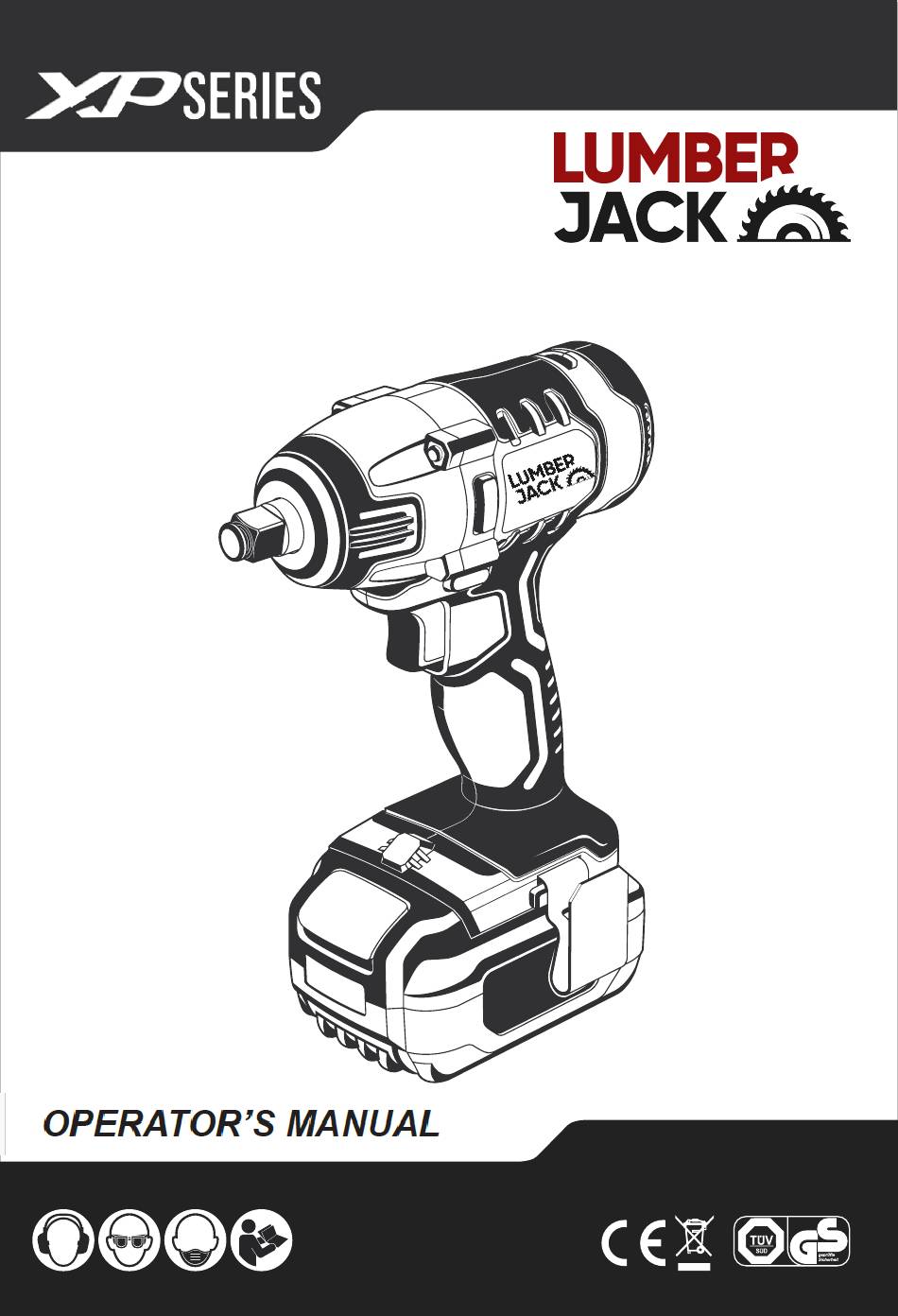

  • Page 1 LIW220N 20V Impact Wrench...
  • Page 2 Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
  • Page 3 Owner’s Manual & Safety Instructions :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB). 3.Personal Safety a.Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 4 Owner’s Manual & Safety Instructions power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d.Store idle power tools out of the reach of children and do not allow persons un- familiar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

  • Page 5: To Remove Or Install Battery Pack

    Press the bu�on on the ba�ery pack OPERATION GUIDELINES and then slide it off from the charger to NOTE: Before using the tool, read remove it. the Instruc-�on book carefully. Disconnect the charger from the INTENDED USE power supply. The machine is intended for hammer drilling and chiseling in concrete, brick.

  • Page 6: B Technical Specifications

    Owner’s Manual & Safety Instructions If the power tool suddenly fails, remove the carbon brushes and check them. h. Do not open the battery. Protect the battery against heat, continuous intense sunlight, fire, water, and moisture. Take care of danger of explosion and short-circuiting.
  • Page 7 Owner’s Manual & Safety Instructions c.Function Description 1.LED Work Light 2.Belt Clip 3.Battery 4.Battery Unlocking Button 5.Rotational direction switch 6.Trigger 7.Handle 7.Assembly Installing the Battery Press the button of the battery, and then insert the charged battery from the front into the base of the power tool.

  • Page 8: Protection System

    Owner’s Manual & Safety Instructions Reversing the rotational direction The rotational direction switch is used to reverse the rotational direction of the machine. However, this is not possible with the trigger switch actuated. Adjusting the Speed The speed of the switched-on power tool can be variably adjusted, depending on how far the trigger switch is pressed.
  • Page 9 Owner’s Manual & Safety Instructions d.Have an authorized service center examine and/or replace the worn carbon brushes in the event of excessive parking. e.Keep the machine clean all the time. f.If you discover any damage, consult the exploded drawing and parts list to de- termine exactly which replacement part you need to order from our customer service department.
