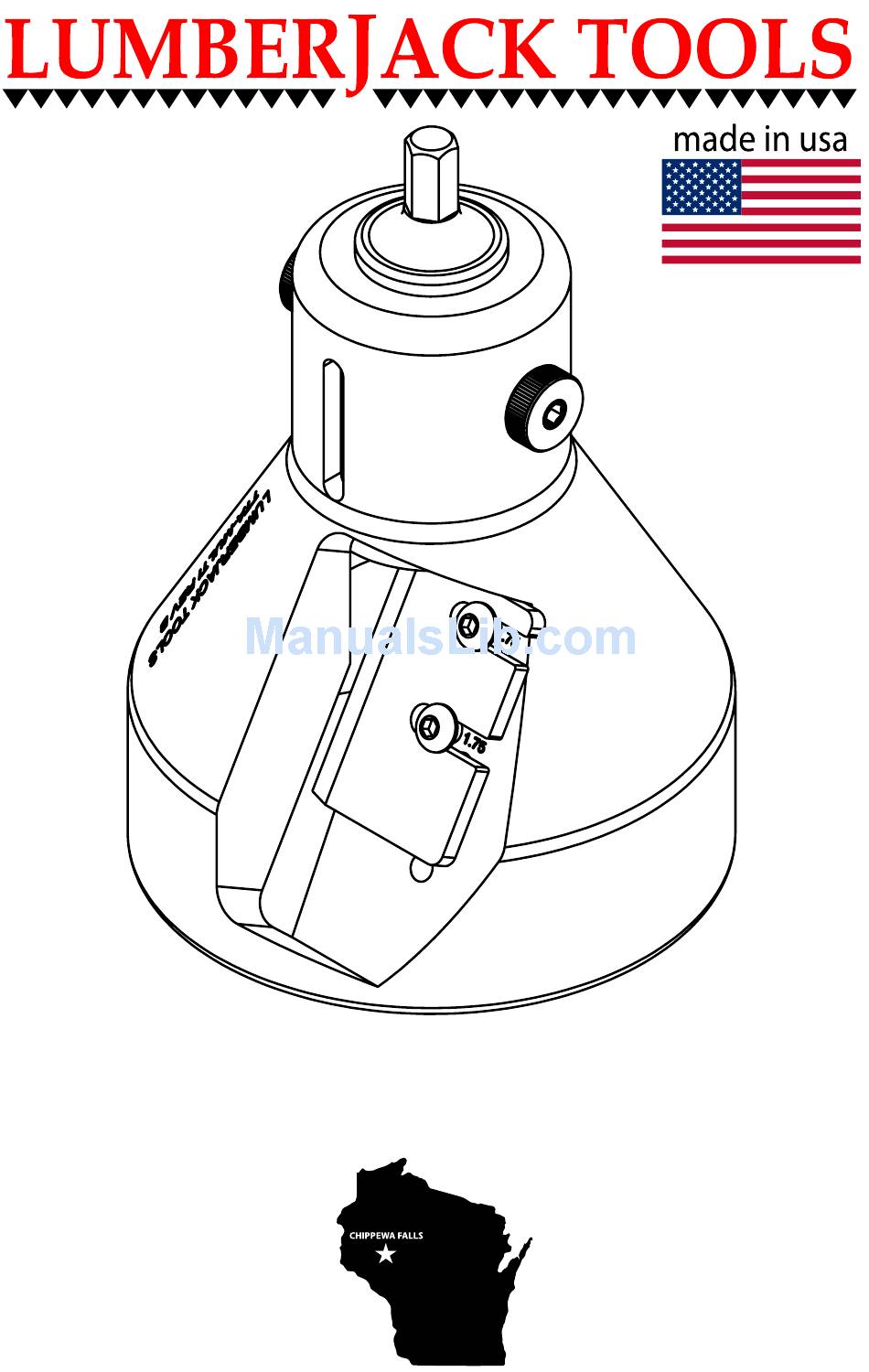

- Page 1 USER MANUAL Industrial Series (60° Shoulder Profile) Multi-Tool Lumberjack Tools Inc. MODEL: PO Box 730 Industrial Series TTA-MULTI Chippewa Falls, WI 54729 www.lumberjacktools.com Email: info@lumberjacktools.com Phone: 715-720-4719 Rev: 1/17...
-
Page 2: About Your Product
About Your Product Thank you for purchasing our Dual Blade – Industrial Series Tenon Cutter! Lumberjack engineers, along with our craftsmen, have designed the safest, easiest-to-use tenon cutters on the market. By combining old world skills with 3D CAD modeling and CNC manufacturing, we have created the ideal tenon cutter: straight tenons, smooth finish, precision operation, and long life. - Page 3 If you feel uncomfortable using our tenon cutters or any other tool, STOP immediately. Lumberjack Tools assumes no responsibility for injury caused to the operator, bystander, or tools used in conjunction with the use or misuse of our tenon cutters.
-
Page 4: What's Included
What’s Included Tenon Cutter (Qty. 1) TB2500 Hex Wrench Blades (Qty. 2) (Qty. 1) Button Head Cap Screw (Qty. 4) Quick Stop Pin Thumb (Qty. 3) Screw (Qty. 2) Ø3/4” Spacer (Qty. 1)* Ø1” Spacer (Qty. 1)* Ø1-�⁄�” Spacer (Qty. 1)* Ø1-�⁄�”... - Page 5 Tool Prep IMPORTANT: add the insert BEFORE installing the blades. WARNING: NEVER PUT HANDS OR ANY BODY PART INSIDE THE TOOL WHILE THE BLADES ARE ATTACHED! DOING SO MAY CAUSE SERIOUS INJURY ● Begin by installing the two thumbscrews in the tool body (near the shank end) ●...
-
Page 6: Blade Offset
Setting the Blades The Industrial Series Multi-Tool has six ● Install and secure the blades with possible settings that range from ¾” to 2” by ¼” increments. The blades must be the Button Head Cap Screws moved to cut a different tenon size. ●... - Page 7 Quick Stop Installation ● Install the quick stop pin through the tool body and insert ● Secure with the supplied acorn nut ● The length of the tenon is determined by measuring from the top of the blade to the bottom of the Quick Stop Pin ●...
- Page 8 Cutting Tenons WARNING: If the log comes loose or unclamped while cutting the tenon, DO NOT drop the drill or try to grab the log! Stop the drill and remove it from the end of the log. Re-secure the log, and resume cutting ●...
- Page 9 Cutting Tenons (cont.) ALWAYS unplug the drill before adjusting the blades or adjusting the chuck ● Carefully install the tenon cutter into an unplugged 1/2” drill, and tighten it firmly. Use the tee handle to tighten the chuck ● Square up to the log so that the cutter is flush against the flat face of the log ●...
- Page 10 Drilling Holes (Mortise) ● Measure and mark the locations of all holes before drilling ● Place the center of the bit on the desired hole location ● Take care to hold the drill perpendicular to the log ● Use a forstner bit (or spade bit) to drill the hole ●...
- Page 11 Maintenance -Body ● Cleaning ○ Keep the tenon cutter body clear of sap and other build-up ○ Always remove the blades before cleaning ○ Clean the tool with a solvent (such as mineral spirits) WARNING: ALWAYS HANDLE THE BLADES WITH EXTREME CARE! FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY -Blades ●...
-
Page 12: Troubleshooting
Troubleshooting PROBLEM CAUSE SOLUTION • Log is larger than tool will • Taper down the end of the • Tool Skips off accept log with a draw knife to one side or • Not enough pressure is being bounces around •...
