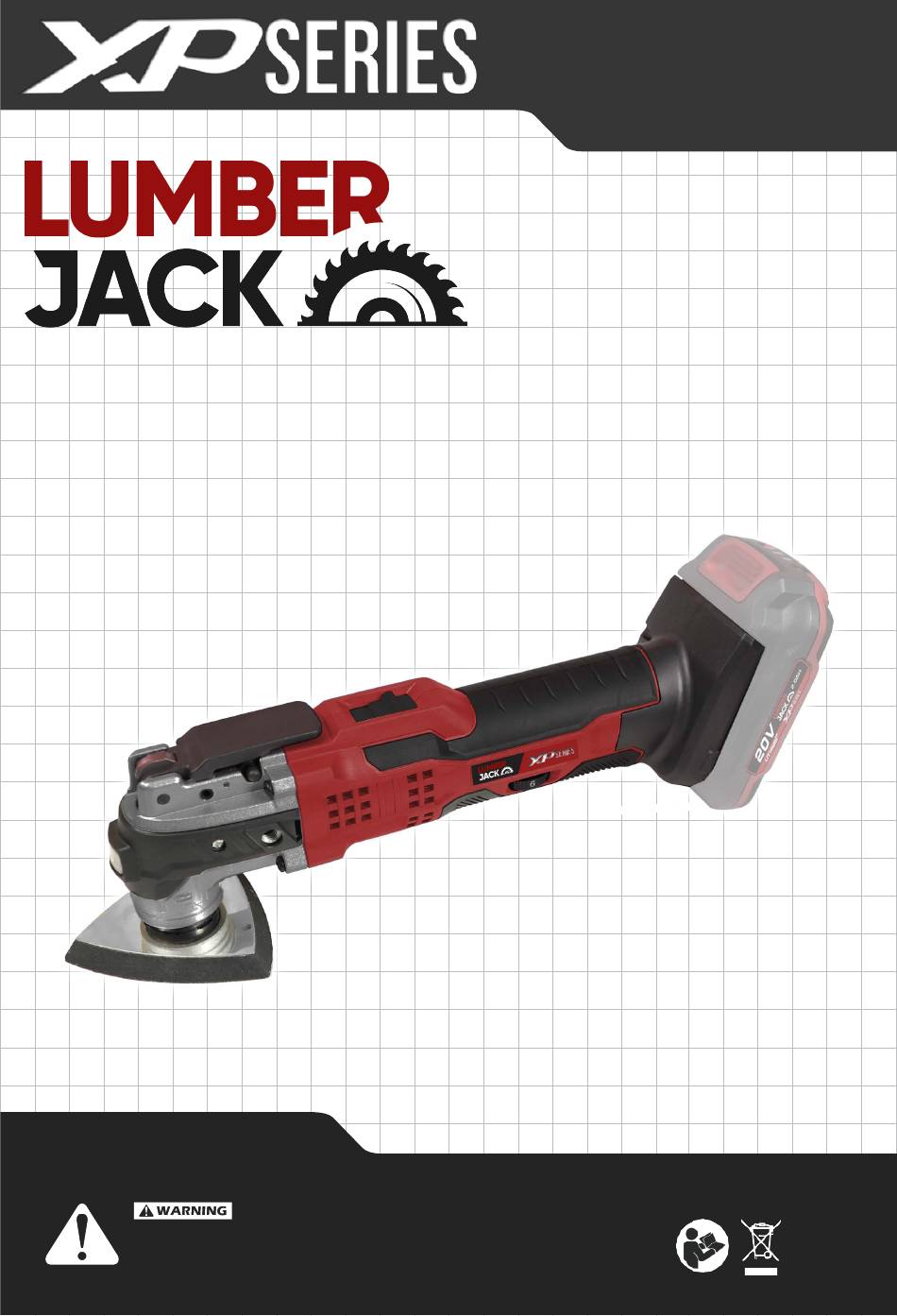

- Page 1 LMT5000 Original Manual Multi Tool Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 Multi Tool Owner’s Manual & Safety Instructions INDEX 1 - 3. Power Tool & Personal Safety Symbols & Technical Includes 6 - 8. Operation Maintenance & Service Declaration...
- Page 3 Multi Tool Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
- Page 4 Multi Tool Owner’s Manual & Safety Instructions :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB). Personal Safety a. Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 Multi Tool Owner’s Manual & Safety Instructions power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons un- familiar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
-
Page 6: Technical Data

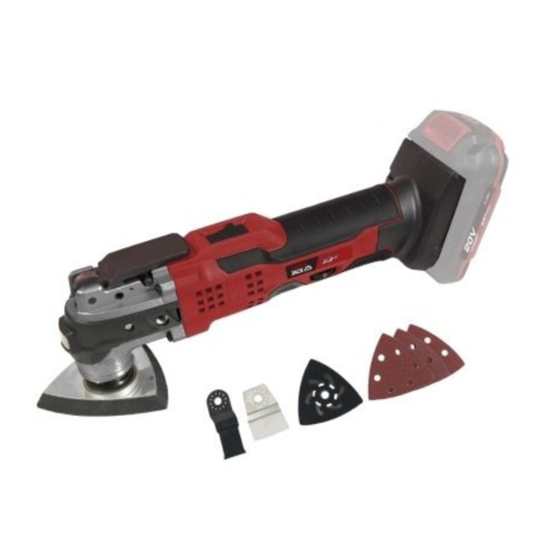

Multi Tool Owner’s Manual & Safety Instructions Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6. Symbols a. Some of the following symbols may appear on this product. Study these symbols and learn their meanings. - Page 7 Multi Tool Owner’s Manual & Safety Instructions Includes: 1. Clamping plate 2. Accessory part 3. LED work light 4. Quick change lever 5. On / Off button 6. Handle 7. Battery (not included) 8. Speed s elector 9. Saw blade 10.
-
Page 8: Operation
Multi Tool Owner’s Manual & Safety Instructions Operation: Adding the Sanding Paper With the Velcro Base (11) mounted, the machine can be used as a triangular sander and sand on materials of eg wood and metal. The machine is not intended for water sanding. Choose a sandpaper (12) with a grain size that is suitable for the job. - Page 9 Multi Tool Owner’s Manual & Safety Instructions Adding the Saw Blade The special design of the saw blade (9) means that you can saw against edges where you cannot reach with a regular saw. The saw blade does not rotate, but oscillates. You can saw wood, plaster and other materials. Make sure that the workpiece does not contain foreign objects, e.g.
- Page 10 Multi Tool Owner’s Manual & Safety Instructions The attachments can be angled in several positions depending on the nature of the task. Lightly screw on the flange. Be sure to turn it to fit the holes or grooves in the fitted accessory. Fold the handle (4) all the way down again so that the clamping plate is pressed against the accessory and laser it firmly.
-
Page 11: Maintenance
Multi Tool Owner’s Manual & Safety Instructions Maintenance: WARNING: Before any work on the machine itself, remove the ba�ery pack from the drill. 1.Inspect bolts periodically. If the bolts loosen, �ghten them immediately, or will result in serious accident. 2.Inspect tool cords periodically. If damaged, have repaired at your nearest Authorised Service Center. -
Page 12: Ce Declaration Of Conformity
Multi Tool Owner’s Manual & Safety Instructions CE DECLARATION OF CONFORMITY TOOLSAVE Unit C, Manders Ind. Est., Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Multi Tool (LMT5000) Is in co mpliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certifica te for EC-type examination delivered by Intertek Testing Services... - Page 13 Nail Gun Owner’s Manual & Safety Instructions...
- Page 14 UNIT C MANDERS INDUSTRIAL ESTATE, OLD HEATH ROAD, WOLVERHAMPTON www.Lumberjacktools.co.uk...
