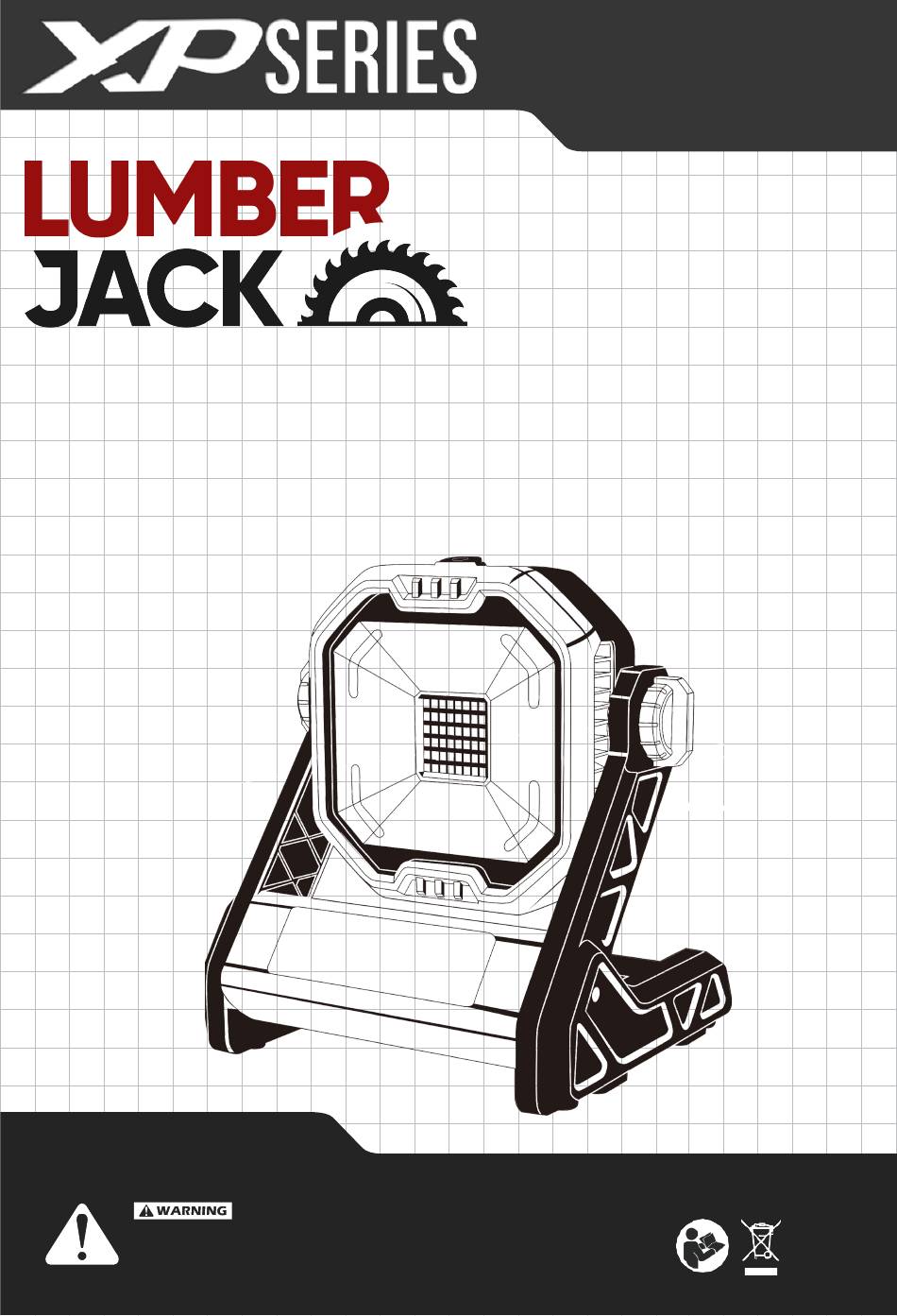

- Page 1 LWL1200 Original Manual LED Work Light Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 LED Work Light Owner’s Manual & Safety Instructions INDEX 1 - 3. Power Tool & Personal Safety Symbols & Technical Includes 6 - 7. Operation Applications Maintenance & Service 10. Declaration...
- Page 3 LED Work Light Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
- Page 4 LED Work Light Owner’s Manual & Safety Instructions :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB). Personal Safety a. Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 LED Work Light Owner’s Manual & Safety Instructions power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons un- familiar with the power tool or these instructions to operate the power tool.
-
Page 6: Technical Data
LED Work Light Owner’s Manual & Safety Instructions Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6. Symbols a. Some of the following symbols may appear on this product. Study these symbols and learn their meanings. - Page 7 LED Work Light Owner’s Manual & Safety Instructions Includes: 1. Knob 2. Frame 3. Led’s 4. On/Off switch 5. Beam 6. Battery release button Plug...
-
Page 8: Operation
LED Work Light Owner’s Manual & Safety Instructions Operation: CAUTION: This worklight is intended for field work use. Do not use the worklight for household purpose. Always put the light on a flat and stable place. . ADJUSTING THE ANGLE OF THE WORKLIGHT Loosen the knobs on the both side. -
Page 9: Switching On/Off
LED Work Light Owner’s Manual & Safety Instructions SWITCHING ON/OFF This led work light has an on/off switch that can also be used to adjust the LED worklight brightness. To switch on the worklight,press the on/off switch. To dim the light of the worklight,press the on/off... -
Page 10: Inserting The Battery
LED Work Light Owner’s Manual & Safety Instructions Applications: Use with ba�ery Installing or removing ba�ery cartridge CAUTION: 1.Always switch off the tool and unplug before installing or removing of the ba�ery cartridge. 2.Hold the tool and the ba�ery cartridge firmly when installing or removing ba�ery cartridge. -
Page 11: Maintenance
LED Work Light Owner’s Manual & Safety Instructions Maintenance: WARNING: 1.All service MUST only be performed by Authorised Service Center. 2. ALWAYS use only accessories that are recommended for this tool. 3.Cleaning. Use clean cloths and mild soap to remove dirt, dust, etc. Service: 1.In case of guarantee repair or purchase of replacement parts, always contact the qualified service center. -
Page 12: Ce Declaration Of Conformity
LED Work Light Owner’s Manual & Safety Instructions CE DECLARATION OF CONFORMITY TOOLSAVE Unit C, Manders Ind. Est., Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the LED Work Light (LWL1200) Is in co mpliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certifica te for EC-type examination delivered by Intertek Testing Services... - Page 13 LED Work Light Owner’s Manual & Safety Instructions...
- Page 14 UNIT C MANDERS INDUSTRIAL ESTATE, OLD HEATH ROAD, WOLVERHAMPTON www.Lumberjacktools.co.uk...
