- Page 1 LMS185 Original Manual 185mm Mitre Saw Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 185mm Mitre Saw Owner’s Manual & Safety Instructions INDEX 1 - 3. Power Tool & Personal Safety Symbols & Technical Includes Assembly 7 - 9. Operation Maintenance & Service Declaration...
- Page 3 185mm Mitre Saw Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
- Page 4 185mm Mitre Saw Owner’s Manual & Safety Instructions :The term residual current device (RCD) may be replaced by the term ground fault circuit interrupter (GFCI) or earth leakage circuit breaker (ELCB). Personal Safety a. Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 185mm Mitre Saw Owner’s Manual & Safety Instructions power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons un- familiar with the power tool or these instructions to operate the power tool.
-
Page 6: Technical Data

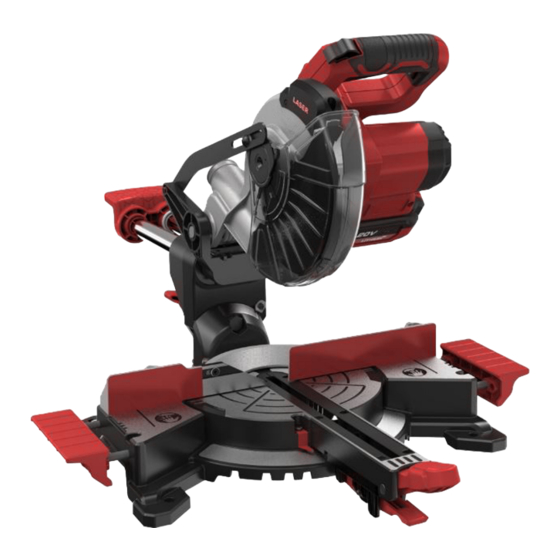

185mm Mitre Saw Owner’s Manual & Safety Instructions Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 6. Symbols a. Some of the following symbols may appear on this product. Study these symbols and learn their meanings. - Page 7 185mm Mitre Saw Owner’s Manual & Safety Instructions Includes: Sliding Fence Bevel Pointer Mitre Pointer Table Insert Mitre Lock Release Mitre Lock Clamp Blade Guard Laser Guide Plunge Handle Safety Switch Side Extensions Motor Body Sliding Rails...
- Page 8 185mm Mitre Saw Owner’s Manual & Safety Instructions Assembly: Bench Mounting 1. Place the saw onto a level surface. 2. Secure it to the workbench by using the four holes at the base of the saw. Mounting the extending support plates 1.
-
Page 9: Operation
185mm Mitre Saw Owner’s Manual & Safety Instructions Operation: Mitre angle adjustment The mitre angle of the blade can be set between 0º and 45º at left and right hand positions. It has a main scale of 0º, 15º, 30º and 45º, but can be adjusted between small scales: 1. - Page 10 185mm Mitre Saw Owner’s Manual & Safety Instructions Cutting depth adjustment You can adjust the cutting depth for even and repetitive shallow cuts: 1. Place the cutting head down to the desired teeth blade depth. 2. While holding the upper arm in that position, turn the stop knob until it touches the stop plate.
- Page 11 185mm Mitre Saw Owner’s Manual & Safety Instructions Sliding bars locking knob 1. Tighten the locking knob to prevent the sliding bars movement. Dust extraction bag 1. Open the spring clip. 2. Fit the dust bag over the neck of the dust extraction port. 3.
-
Page 12: Maintenance
185mm Mitre Saw Owner’s Manual & Safety Instructions Maintenance: WARNING: Before any work on the machine itself, remove the ba�ery pack from the drill. 1.Inspect bolts periodically. If the bolts loosen, �ghten them immediately, or will result in serious accident. 2.Inspect tool cords periodically. -
Page 13: Ce Declaration Of Conformity
185mm Mitre Saw Owner’s Manual & Safety Instructions CE DECLARATION OF CONFORMITY TOOLSAVE Unit C, Manders Ind. Est., Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the 185MM MITRE SAW (LMS185) Is in co mpliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certifica te for EC-type examination delivered by Intertek Testing Services... - Page 14 185mm Mitre Saw Owner’s Manual & Safety Instructions...
- Page 15 UNIT C MANDERS INDUSTRIAL ESTATE, OLD HEATH ROAD, WOLVERHAMPTON www.Lumberjacktools.co.uk...
