Lumberjack XP Series Owner's Manual

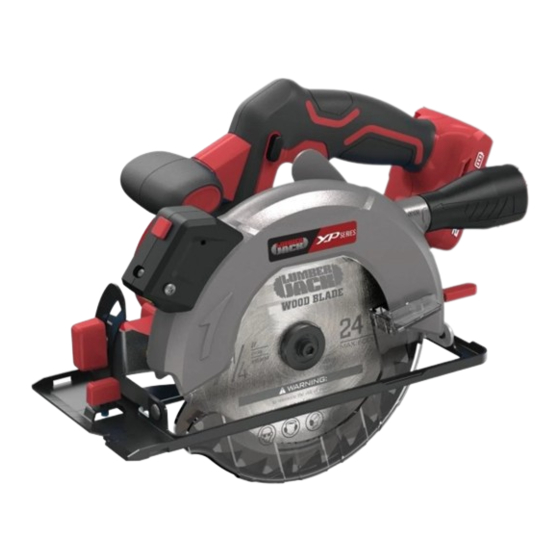

16mm circular saw
Hide thumbs
Also See for XP Series:
- Original manual (17 pages) ,
- Owner's manual & safety instructions (14 pages) ,
- Operator's manual (12 pages)
Related Manuals for Lumberjack XP Series
Summary of Contents for Lumberjack XP Series
- Page 1 LCS165 Owners Manual 16mm Circular Saw Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
- Page 2 Circular Saw Owner’s Manual & Safety Instructions CATALOGUE LCS165 1.Work Area Safety 2.Electrical Safety 3.Personal Safety 4.Power Tool Use and Care 5.Battery Tool Use and Care 6.Special Safety rules for Circular Saws 7.Symbols Assembly Maintenance Transport Declaration………………………………………………..13...
- Page 3 Circular Saw Owner’s Manual & Safety Instructions General Power Tool Safety Warnings : Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″...
- Page 4 Circular Saw Owner’s Manual & Safety Instructions 3. Personal Safety a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 5 Circular Saw Owner’s Manual & Safety Instructions Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, break- age of parts and any other condition that may affect the power tools operation.
- Page 6 Circular Saw Owner’s Manual & Safety Instructions “Live” wire will also make exposed metal parts of the power tool “live” and shock the operator. f. When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. g.
- Page 7 Circular Saw Owner’s Manual & Safety Instructions Kickback Causes and Related Warnings Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the work piece toward the opera- tor;...
- Page 8 Circular Saw Owner’s Manual & Safety Instructions Lower Guard Function • Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent.
- Page 9 Circular Saw Owner’s Manual & Safety Instructions Than those specified herein may result in hazardous radiation exposure. Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 7.
- Page 10 Circular Saw Owner’s Manual & Safety Instructions c. Function Description 1. Battery 2. Rechargeable Battery Release 3. Handle 4. ON/OFF Switch 5. Handle 6. Lock-Off Switch 7. Auxiliary Handle 8. Laser Switch 9. Clamping Lever for Miter Angle 10. Clamping Lever for Guide Ruler 11.
- Page 11 Circular Saw Owner’s Manual & Safety Instructions : Please remove battery from the machine before operate the following installations. Installing or Removing the Blade : Always wear sturdy gloves when handling or changing blades as they can be very sharp. Only use sharp and undamaged saw blades. Cracked or distorted saw blades must be replaced immediately.
- Page 12 Circular Saw Owner’s Manual & Safety Instructions Supporting Large Panels/Securing Work piece Support large panels to minimize the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
- Page 13 Circular Saw Owner’s Manual & Safety Instructions the cutting depth. Tighten the depth locking lever. : Always use the correct blade depth setting. The correct blade depth setting for all cuts should not be more than 6.35mm (1/4”) below the material being cut.
- Page 14 Circular Saw Owner’s Manual & Safety Instructions cutting line until cut is completed. Release trigger and allow blade to stop completely before withdrawing the blade from the material. When starting each new cut, repeat as above. Maintenance a. Keep the machine clean all the time. b.
- Page 15 Circular Saw Owner’s Manual & Safety Instructions Declares that the Circular Saw (LCS165) Is compliance with the regulations included in the Directives:2006/42/EC 06.26.2019 .13.
-
Page 16: Circular Saw
Circular Saw Owner’s Manual & Safety Instructions .14. - Page 17 UNIT C MANDERS IND ESTATE WOLVERHAMPTON WV12RP UNITED KINGDOM WWW.LUMBERJACKTOOLS.CO.UK...
