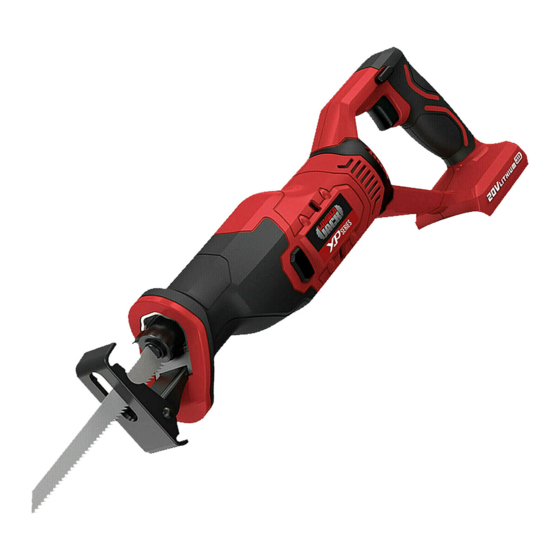

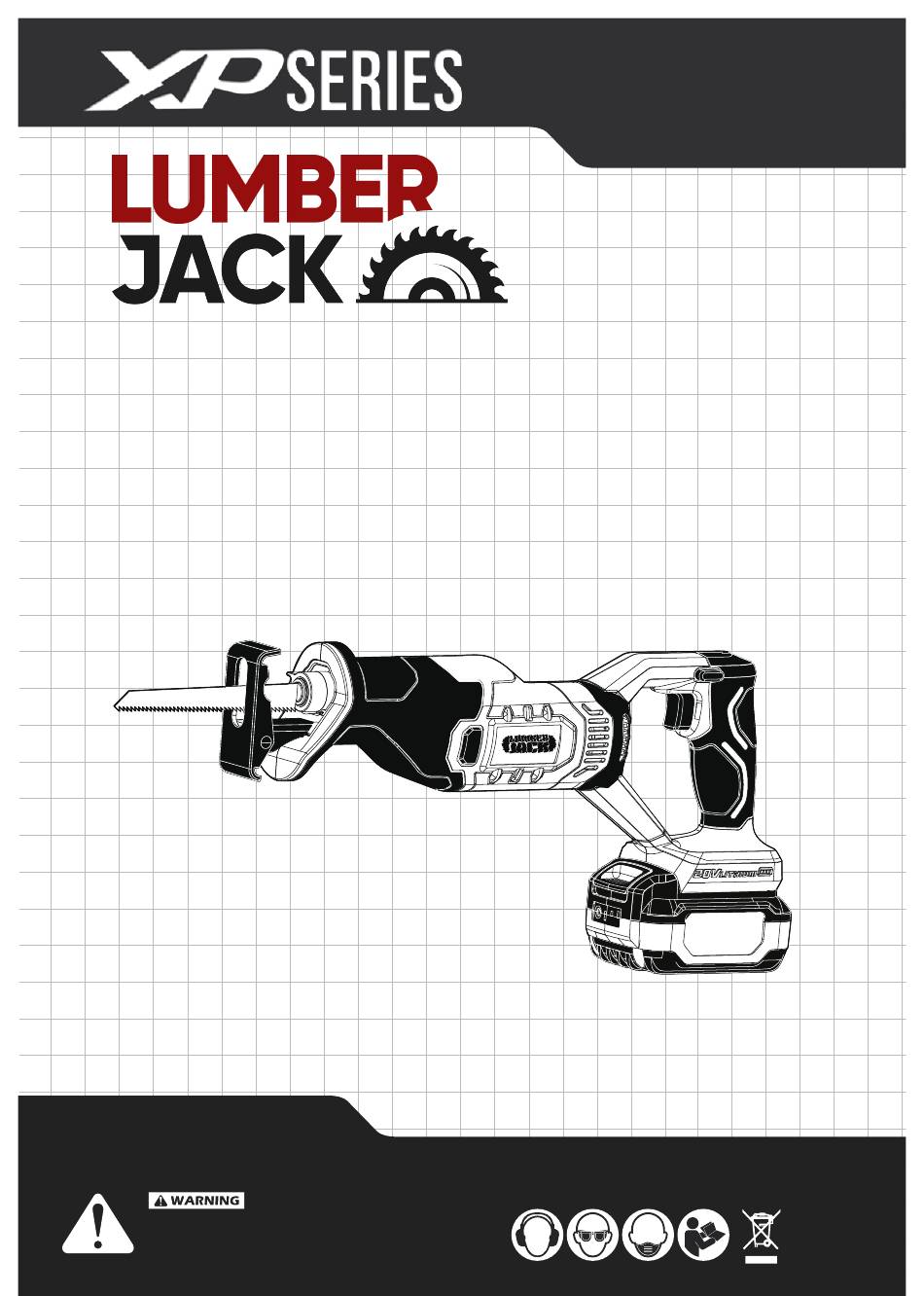

- Page 1 LRS885 Owner’s Manual & Safety Instructions Reciprocating Saw Read this manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
-
Page 2: Circular Saw
Circular Saw Owner’s Manual & Safety Instructions INDEX LRS885 1.Work Area Safety 2.Electrical Safety 3.Personal Safety 4.Power Tool Use and Care 5.Battery Tool Use and Care 6.Specific Safety Rules for Drills/Drivers 7.Symbols 8.Assembly 9.Application 10. Maintenance 11.Transport 12.Seller Details... -
Page 3: Reciprocating Saw
Reciprocating Saw Owner’s Manual & Safety Instructions General Power Tool Safety Warnings :Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″power tool″... - Page 4 Reciprocating Saw Owner’s Manual & Safety Instructions 3. Personal Safety a.Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 5 Reciprocating Saw Owner’s Manual & Safety Instructions Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, break- age of parts and any other condition that may affect the power tools oper- ation.
- Page 6 Reciprocating Saw Owner’s Manual & Safety Instructions sunlight, fire, water, and moisture. Take care of danger of explosion and short-circuiting. 6. Specific Safety Rules for Reciprocating Saw 1. Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
- Page 7 Reciprocating Saw Owner’s Manual & Safety Instructions Causes and operator prevention of kickback: a. Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the work-piece toward the opera- tor.
- Page 8 Reciprocating Saw Owner’s Manual & Safety Instructions symbols and learn their meanings. Proper interpretation of these symbols will allow for more efficient and safer operation of this product. SYMBOL DESCRIPTION Read the manual before set-up and/or use. Wear safety glasses Use dust mask.
- Page 9 Reciprocating Saw Owner’s Manual & Safety Instructions 8. Assembly Installing the Battery Press the button of the battery, and then insert the charged battery from the front into the base of the power tool. Push the battery completely into the base until the red stripe can no longer be seen and the battery is securely locked.
- Page 10 Reciprocating Saw Owner’s Manual & Safety Instructions avoid excessive vibrations. 1) Press the cutting support lock down. 2) Adjust the cutting support to the required depth. 3) Release cutting support lock. Operation Switch On and Off The power tool switch allows the operator to increase the stroke rate slowly up to the maximum setting.
- Page 11 Reciprocating Saw Owner’s Manual & Safety Instructions Place the saw square on the work-piece. Guide the saw with uniform pressure through the wood, pressing the cutting support against the work-piece in the process. Plunge Cuts The saw is suitable for plunge cuts in wood and plastic. Use only short saw blades (<150mm) to perform plunge cuts! Switch on orbital stroke to perform plunge cuts.
- Page 12 Reciprocating Saw Owner’s Manual & Safety Instructions .10.
- Page 13 Reciprocating Saw Owner’s Manual & Safety Instructions .11.
- Page 14 LUMBERJACK TOOLS UNIT C MANDERS INDUSTRIAL ESTATE WOLVERHAMPTON WV1 WWW.LUMBERJACKTOO LS.CO.UK...
