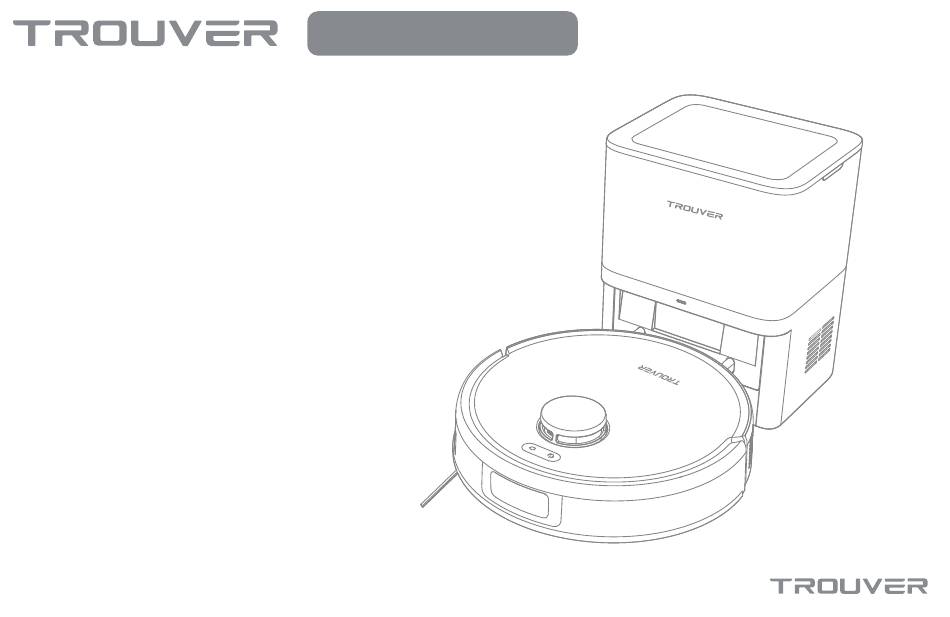

- Page 1 E20 Pro Plus Auto-Empty Robot Vacuum and Mop User Manual The illustrations in this manual are for reference only. Please refer to the actual product.
- Page 2 Contents User Manual...
-
Page 3: Safety Information
Safety Information To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference. Usage Restrictions This product should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. - Page 4 Safety Information Usage Restrictions To prevent damage or harm from dragging, clear any loose objects from the floor, and remove cables or power cords on the cleaning path before operating the appliance. Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.
-
Page 5: Batteries And Charging
Pulse duration: 0.125ms Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLE12SD is in compliance with Directive 2014 /53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://trouver-tech.com... - Page 6 Safety Information CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that For indoor use only Read operator's manual...
-
Page 7: Product Overview
Product Overview Package Contents Robot Base Station with Auto-Empty Other Accessories Side Brush Mop Assembly User Manual... - Page 8 Product Overview Robot Dock / Spot Cleaning Button · Press to send the robot back to the base station · Press and hold for 3 seconds to start spot cleaning · Press and hold for 7 seconds to enable/disable the Child Lock Power / Clean Button ·...
- Page 9 Product Overview Robot and Sensors Omnidirectional Wheel Laser Distance Side Brush Sensor (LDS) Bumper 3D Line Laser Sensor Main Wheel Main Wheel Main Brush Return-to-Dock Sensors Charging Contacts Auto-Empty Vent...
-
Page 10: Mop Assembly
Product Overview 2-in-1 Water Tank with Dust Box Base Station with Auto-Empty Primary Filter Cover HEPA Filter Dust Bag Slot Filter Water Inlet Status Indicator Signaling Area • Solid White: Base station is connected to power Auto-Empty Vent Water Tank Release Clip •... - Page 11 Preparing Your Home Before cleaning, please move away unstable, fragile, valuable or Before cleaning, place a physical barrier at the edge of the stairs and dangerous items, and clean up cables, cloths, toys, hard objects and sofa to ensure safe and smooth operation of the robot. sharp objects on the ground to avoid being entangled, scratched or knocked over by the robot and causing losses.
-
Page 12: Before Use
Before Use 1. Remove the protections 3. Place the Base Station and Connect to an Electrical Outlet Place the base station on level ground against the wall and plug the power cord into the socket. Place the base station in a location that is as open as possible with a good Wi-Fi signal. - Page 13 Connecting with the App Scan the QR code on the robot to download and install the app. Open the app, tap "Scan QR code to connect", and scan the same QR code on the robot again to add the device. Please follow the prompts to finish the Wi-Fi connection.
-
Page 14: How To Use
How to Use Auto Resume Cleaning Press and hold the button for 3 seconds to turn on the robot. The power If the battery is too low, the robot will automatically return to the base station indicator should be illuminated. Place the robot onto the base station, the to charge. - Page 15 Use Mopping Function It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleani 1. Fill the water tank with clean water. 3. Install mop assembly. Note: Do not use detergent or disinfectant. Do not fill the water tank with hot water as this may cause the water tank to warp.
- Page 16 6. When the robot finishes a cleaning task and returns to the base station, remove 5. Press the button or use the app to start cleaning. the mop assembly and wash the mop pad in time. To remove the 2-in-1 water tank with dust box, press and hold the release clip, and then take it out.
-
Page 17: Routine Maintenance
Routine Maintenance Parts To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for ro utine maintenance. Part Maintenance Frequency Replacement Period Mop pad After each use Every 3 to 6 months Filter Once every week... -
Page 18: Main Brush
Routine Maintenance Side Brush Main Brush 1. Press the brush guard clips upwards to remove the brush guard Pull out the side brush and use a proper tool to remove any hair tangled in and lift the brush out of the robot. the brush. - Page 19 Routine Maintenance 2-in-1 Water Tank with Dust Box 1. Press the release clip to remove the 2-in-1 water tank with dust 3. Remove the filters and tap the HEPA filter gently. box, and then empty the water tank. Note: Do not attempt to clean the filters with a brush, a finger or sharp objects to prevent damage.
- Page 20 Routine Maintenance Mop Pad Robot Sensors 1. Press the release clips on the mop pad holder to remove the Wipe robot sensors by using a soft and dry cloth, as shown in the below figure: Laser Distance Sensor (LDS) Bumper 3D Line Laser Sensor Return-to-Dock Sensors...
- Page 21 Routine Maintenance Dust Bag 1. Remove and discard the dust bag. 3. Install a new dust bag. 2. Remove the dust and debris from the filter with a dry cloth. 4. Put back the cover of the dust tank.
- Page 22 Routine Maintenance Charging Contacts and Signaling Area Air Duct Clean the charging contacts and the signaling area with a soft and dry cloth. If the air duct is blocked, please clean it according to the following steps. 1. Unscrew the mounting screws on the air duct cover and remove the cover. 2.
-
Page 23: Troubleshooting
Troubleshooting Problem Solution The battery is low. Recharge the robot on the base station and try again. The robot will not turn on. The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature between 32°F (0°C) and 104°F (40°C). - Page 24 Troubleshooting Problem Solution the robot. If the problem persists, please contact after-sales service. It takes about 5 hours to fully charge the robot when its battery is low. If you operate the robot at temperatures outside of the specified range, the charging speed will automatically slow The charging speed is slow.
- Page 25 Troubleshooting Problem Solution Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning. The robot will not resume cleaning after charging. The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge via the app or the button .
-
Page 26: Specifications
Specifications Robot Base Station with Auto-Empty Model RLE12SD Model RCED0106 Charging Time Approx. 5 hours Rated Input 200-240 V 50-60 Hz Rated Voltage 14.4 V Rated Output 19 V 0.7 A Rated Power Rated Power 50 W 680 W (during dust emptying) Operation Frequency 2400-2483.5 MHz Maximum Output Power... -
Page 27: Weee Information
Battery Disposal and Removal The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility. – the battery must be removed from the appliance before it is scrapped; –... - Page 28 · · · · · ·...
- Page 29 · · · 0 °C 40 °C. · · · · · · ·...
- Page 30 · · · · RCED0106. · · · · ·...
- Page 31 · · · 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 : <0,39 mW : 840–860 nm EN 50689:2021 : 0,125 ms...
- Page 32 · · · 50 °C –20 °C. · –20 °C 50 °C 60 % ± 5 %. 0 °C 40 °C. · Dreame Trading (Tianjin) Co., Ltd. RLE12GD 2014/53/EU. : https://trouver-tech.com https://www.trouver-tech.com/pages/user-manuals-and-faqs...
- Page 35 · · · · · · · · · · · Wi-Fi. · ·...
- Page 37 «2- -1» HEPA • • •...
- Page 38 · ·...
- Page 39 Wi-Fi. · · ·...
- Page 40 « » Wi-Fi Wi-Fi, Wi-Fi. · Wi-Fi ·...
- Page 41 « » « » « » « » « » 22:00 8:00. · « » · « ». · · 1,5 × 1,5...
- Page 42 · · «2- -1»...
- Page 43 «2- -1» · «2- -1» ·...
- Page 44 « » 3–6 6–12 3–6 2–4...
- Page 45 · ·...
- Page 46 «2- -1» HEPA. «2- -1» · · ·...
- Page 50 0 °C 40 °C. Wi-Fi. Wi-Fi Wi-Fi Wi-Fi Wi-Fi. Wi-Fi. Wi-Fi.
- Page 51 « » « ».
- Page 52 « » « » : https://trouver-tech.com.
- Page 53 RLE12SD RCED0106 200–240 V～50–60 Hz 14,4 V 19 V 0,7 A 50 W 680 W 2400–2483,5 MHz 20 dBm...
- Page 54 – – – WEEE 2012/19/EU)
- Page 55 For more support, contact us via https://trouver-tech.com RU-A00 Manufactured by: Dreame Trading (Tianjin) Co., Ltd. 08/2024 Made in China...
