Summary of Contents for Dreame TROUVER E10

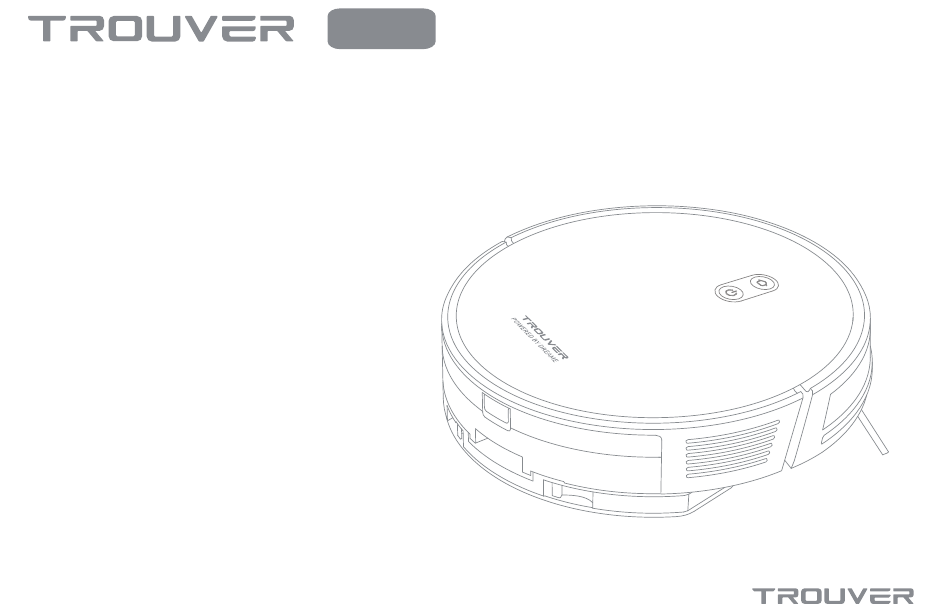

- Page 1 Robot Vacuum and Mop User Manual The illustrations in this manual are for reference only. Please refer to the actual product.
- Page 2 Contents Usual Manual...
-
Page 3: Safety Information
Safety Information To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference. · This product should not be used by children younger than 8 years old nor Usage Restrictions persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe... - Page 4 Safety Information · To prevent damage or harm from dragging, clear any loose objects from Usage Restrictions the floor, and remove cables or power cords on the cleaning path before operating the appliance. · Keep hair, fingers, and other body parts away from the suction opening of the robot.
- Page 5 Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RGE12GA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com...
- Page 6 Safety Information For indoor use only Read operator's manual...
-
Page 7: Product Overview
Product Overview Accessories Pre-Installed Accessories Main Brush 2-in-1 Water Tank with Dust Box Other Accessories Mop Assembly Side Brush Cleaning Tool Charger User Manual Charging Dock... - Page 8 Product Overview Robot Dock Button · Press to send the robot back to the charging dock · Press and hold for 3 seconds to reset Wi-Fi Power / Clean Button · Press and hold for 3 seconds to turn on or ·...
-
Page 9: Charging Dock
Product Overview Robot Omnidirectional Wheel Charging Contact Charging Contact Side Brush Main Wheel Main Wheel Infrared Deceleration Sensor Bumper Edge Sensor Main Brush Charging Dock Power Indicator Signaling Area Power Port Charging Contacts... -
Page 10: Mop Assembly
Product Overview 2-in-1 Water Tank with Dust Box Primary Filter HEPA Filter Water Inlet Water Tank Release Clip Mop Assembly Mop Pad Mop Pad Holder Mop Pad Attachment Area... - Page 11 Preparing Your Home Before cleaning, please move away unstable, fragile, valuable or Before cleaning, place a physical barrier at the edge of the stairs and dangerous items, and clean up cables, cloths, toys, hard objects and sofa to ensure safe and smooth operation of the robot. sharp objects on the ground to avoid being entangled, scratched or knocked over by the robot and causing losses.
-
Page 12: Before Use
Before Use 1. Remove the protections 3. Place the charging dock on level ground against the wall and connect it to a power outlet Place the charging dock in a location that is as open as possible with a good Wi-Fi signal. - Page 13 Connecting with Dreamehome App Scan the QR code on the robot, or search "Dreamehome" in the app store to Open the Dreamehome app, tap " " in the upper right corner, and download and install the app. scan the same QR code on the robot again to add the device. Please follow the prompts to finish the Wi-Fi connection.
-
Page 14: How To Use
How to Use Spot Cleaning Press and hold the button for 3 seconds to turn on the robot. The power In this mode, the robot will clean a circular area with a radius of 0.8 meters. indicator should be illuminated. Place the robot onto the charging dock, the When the spot cleaning is done, the robot will automatically return to its original location and stop working. - Page 15 How to Use Use Mopping Function It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleani 1. Fill the water tank with clean water. 3. Install mop assembly. Note: Do not use detergent or disinfectant.
-
Page 16: Routine Maintenance
Routine Maintenance To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance. Part Maintenance Frequency Replacement Period Mop pad After each use Every 3 to 6 months Filter Once every week Main brush... -
Page 17: Clean The Main Brush
Routine Maintenance Clean the Main Brush Clean the Side Brush 1. Press the brush guard clips upwards to remove the brush guard and Pull out the side brush and use the provided cleaning tool to remove any hair lift the brush out of the robot. tangled in the brush. - Page 18 Routine Maintenance Clean the 2-in-1 Water Tank with Dust Box 1. Press the release clip to remove the 2-in-1 water tank with dust box, 3. Remove the filters and tap the HEPA filter gently. and then empty the water tank. Note: Do not attempt to clean the filters with a brush, a finger or sharp objects to prevent damage.
- Page 19 Routine Maintenance Clean the Mop Pad 1. Press the release clips on the mop pad holder to remove the mop assembly. 2. Clean the mop pad with water only and leave to air dry before reinstalling.
- Page 20 Routine Maintenance Clean Robot Sensors and Charging Contacts Wipe sensors and charging contacts of the robot by using a soft and dry cloth, as shown in the below figure: Note: A wet cloth can damage sensitive elements within the robot and the charging dock. Please use a dry cloth for cleaning. Infrared Deceleration Sensor Bumper Edge Sensor...
-
Page 21: Troubleshooting
Troubleshooting Problem Solution The battery level is low. Recharge the robot on the charging dock, then try again. The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature Robot does not turn on. between 32 ℉... - Page 22 Troubleshooting Problem Solution There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Dreamehome app, then try reconnecting. Location permission is not open. Please ensure the location permission on the Dreamehome app is enabled. Robot cannot connect to Wi-Fi.
-
Page 23: Specifications
Specifications Robot Charging Dock Model RGE12GA Model RCM0 Charging Time Approx. 4.5 hours Rated Input 19 V 0.6 A Rated Voltage 14.4 V Rated Output 19 V 0.6 A Rated Power 50 W Operation Frequency 2400-2483.5 MHz Charger Maximum Output Power <... -
Page 24: Weee Information
Battery Disposal and Removal The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility. – the battery must be removed from the appliance before it is scrapped; –... - Page 25 · · · · · · · ·...
- Page 26 · · · · · · · · · · ·...
- Page 27 · RCM0. · · · · · ·...
- Page 28 · · · 50 °C –20 °C. · –20 °C 50 °C 60 % ± 5 %. 0 °C 40 °C. · Dreame Trading (Tianjin) Co., Ltd. RGE12GA 2014/53/EU. : https://global.dreametech.com https://global.dreametech.com/pages/user-manuals-and-faqs...
- Page 30 «2- -1»...
- Page 31 · · Wi-Fi · · · · · · Dreamehome.
- Page 33 «2- -1» HEPA...
- Page 34 · ·...
- Page 35 Wi-Fi. · ·...
- Page 36 Dreamehome Dreamehome, « » «Dreamehome» Wi-Fi Wi-Fi, Wi-Fi. ·...
- Page 37 Dreamehome...
- Page 38 «2- -1» Dreamehome. ① ② · ·...
- Page 39 « »...
- Page 40 · ·...
- Page 41 «2- -1» HEPA. «2- -1» · ·...
- Page 44 °C 40°C.
- Page 45 Wi-Fi. Wi-Fi Dreamehome, Dreamehome Wi-Fi. Wi-Fi. Wi-Fi. Wi-Fi. https://global.dreametech.com...
- Page 46 RGE12GA RCM0 19 V 0,6 A 19 V 0,6 A 50 W BZ015-190060-AG 19 V 0,6 A...
- Page 47 – – – WEEE 2012/19/EU)
- Page 48 The word “dreame” is the abbreviation of Dreame Technology Co.,Ltd. and its subsidiaries in China. It is the transliteration of the company’s Chinese name“追觅”, which means striving for excellence in every endeavor and reflects the company’s vision of continuous pursuit, exploration and search in technology.
