imilab EC6 User Manual
Outdoor security camera
Hide thumbs
Also See for EC6:
- User manual (154 pages) ,
- User manual (154 pages) ,
- User manual (38 pages)
Related Manuals for imilab EC6
Summary of Contents for imilab EC6

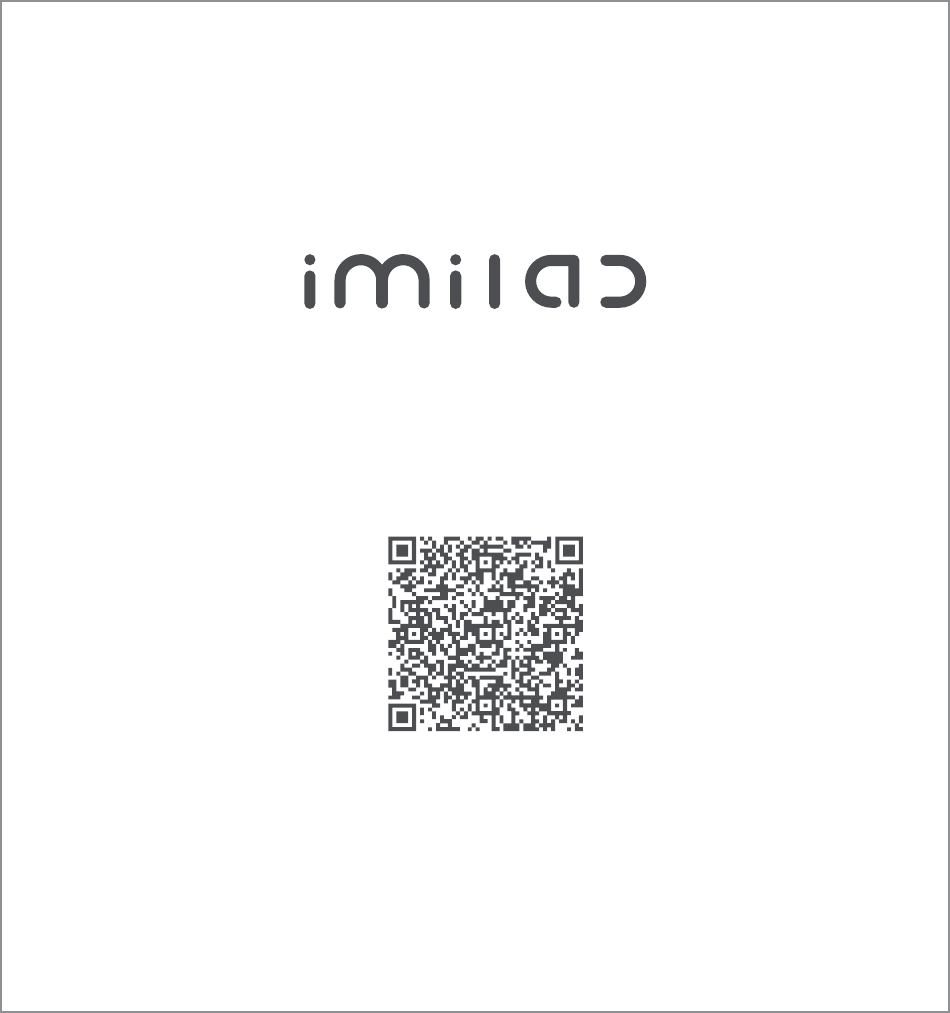

- Page 1 IMILAB EC6 Outdoor Security Camera User Manual Scan the QR code for the tutorial on how to use the camera. Please read this manual carefully before using the device and retain it for future reference.
-
Page 2: Product Introduction
Product Introduction Package List IMILAB EC6 Power adapter Outdoor Security Camera Wall mounting pack Mounting sticker User manual... - Page 3 Product Appearance Lens Floodlight Reset Reset MicroSD card slot Indicator light Speaker Power port...
-
Page 4: Indicator Light
Connect to Power Source Power On Insert the power supply cable into the camera's power supply port. Note: Do not twist the camera’s dome to force it to rotate after it is turned on. If the lens positioning is inaccurate, calibrate it with the app. Indicator Light Solid green: Successful connection/normal status Flashing green: Waiting for connection/network exception... -
Page 5: Installing The Device
Smart home room home Sh Smart home room home Sh Scan 28° 28° Manual controls room room Open Open IMILAB C30 Dual Home Security Camera IMILAB C30 Dual Home Security Camera Automation Mi Home Smart Products Store Profile Mi Home Smart... - Page 6 Reset Note: 1.The MicroSD card needs to be purchased separately. The camera can be used without a MicroSD card. 2.When inserting or removing the MicroSD card, please disconnect the camera from the power supply. Use a MicroSD card from a reputable manufacturer (up to 256GB).
- Page 7 • Wall mounting 1. Attach the wall mounting positioning sticker on the desired installation location on a wall. Drill two holes at the positions indicated on the sticker. The drilling diameter should be around 6.0 mm with a depth of around 30 mm. 2.
- Page 8 • Ceiling mounting 1. Attach the ceiling mounting positioning sticker on the desired installa- tion location on the ceiling. Drill two holes at the positions indicated on the sticker. The drilling diameter should be around 6.0 mm with a depth of around 30 mm. 2.
- Page 9 • Pole mounting Note: The product must be hung horizontally after installation (see below). Notes on wall mounting: 1. The wall on which the device is mounted must have a loading capacity of at least 3 times the weight of the device. 2.
-
Page 10: Basic Parameters
Basic Parameters Product name: IMILAB EC6 Outdoor Security Camera Dimensions: 161 × 105 × 150 mm Model: CMSXJ65A Net Weight: 469 g Power input: 12V 1A Video code: H.265 Resolution: 2880*1620 Storage: MicroSD card (up to 256GB) Operating Temperature: -30℃~ 60℃... -
Page 11: Fcc Statement
FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Weee Information
The full Declaration of Conformity can be found at https://www.imilab- global.com/pages/psti-declaration. For any issues, please contact us at help@imilab.com or submit the Issue Feedback Form via the link above. - Page 13 Manufacturer: Shanghai Imilab Technology Co., Ltd. Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District, Shanghai, China For further information, please go to www.imilabglobal.com. Support: help@imilab.com Warranty: https://www.imilabglobal.com/pages/warranty...
