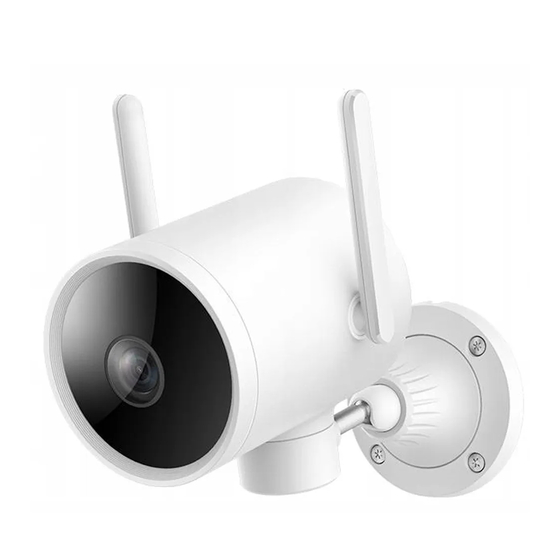

- Page 1 IMILAB EC3 Outdoor Security Camera User Manual...
- Page 2 Please read this instruction manual carefully before using the device and retain it for future reference. Product Introduction Reset button Wall base (can be rotated to adjust the camera angle) Micro SD card slot Knob Speaker In this instruction manual, images of the device, accessories and user interface are for illustrative purposes only and should only be used for reference.
- Page 3 Antenna Indicator light Power supply LAN port Packing list: IMILAB EC3 Outdoor Security Camera, wall mounting pack, power adapter, waterproofing tape for power/LAN cable，user manual...
-
Page 4: Installing The Device
Installing the Device Assemble the camera as shown below. Then secure the camera to the metal rod with a screw. Locking mechanism Connecting screw (1 spare screw is available in the accessory pack) Note: The warranty does not cover any damage caused by improper installation. - Page 5 2. Insert four plastic expansion nuts into the holes. 3. Cover part of 2-in-1 power and LAN cable with the base plate as indicated.
- Page 6 4. Put the base plate on the wall. Ensure that the 2-in-1 power and LAN cable goes straight down. Secure the base plate by inserting the screws into the expansion nuts. Note: In order to prevent accidents and injuries, please secure the device firmly onto the wall as illustrated.
- Page 7 The LAN port can be wrapped with the waterproofing tape in the same way as the power supply port. For instructions on the use of a waterproofing sleeve, visit the IMiLab WeChat account. Using a waterproofing sleeve on the LAN port Using the waterproofing tape...
-
Page 8: Connecting The Device
Wrapping with the waterproofing tape Scan the QR code below to follow the IMiLab WeChat account. Public WeChat account. Public WeChat account Connecting the Device Turn on the camera Step 1: Insert the power supply cable into the camera's power supply port. - Page 9 MicroSD Micro SD card slot Note: When inserting or removing the micro SD card, please disconnect the camera from the power supply. Please use a micro SD card from a reputable manufacturer. The recommended read and write speed of the micro SD card is at least U1/Class 10.
-
Page 10: Specifications
Specifications Name: IMILAB EC3 Outdoor Security Camera Model: CMSXJ25A Item Dimensions: 117*91*116mm Input: 12V Net Weight: 495g Resolution: 1920×1080 Lens Angle: 110° Operating Temperature: -20℃~ 40℃ Aperture: F1.6 Video Encoding: H.265 Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz LAN Connection: 1 x 10/100M adaptive network port Compatible With: Android 4.4 or iOS 9.0 or higher... - Page 11 Connecting to Mi Home App This product works with Mi Home and can be controlled using the Mi Home app. Scan the QR code to download and install the Mi Home app. If you already have Mi Home app installed, you will be directed to the device connection page.
-
Page 12: Infrared Night Vision
Infrared Night Vision The light sensor can automatically switch the device to night vision mode through IR-CUT based on changes in the lighting of the environment. The device features 10 built-in infrared night vision lights that ensure recording stays clear even in darkness. 2019 3 20:51:05 Infrared night vision effect illustration... -
Page 13: Video Playback
Video Playback Past videos can only be viewed when a compatible micro SD card is inserted in IMILAB EC3 Outdoor Security Camera. After inserting a micro SD card and turning on the device, the camera will automatically start recording. In the control interface for . in the Mi Home app, tap the playback button to enter the video playback page. -
Page 14: Sharing A Video
Sharing a Video In the control interface for IMILAB EC3 Outdoor Security Camera in the Mi Home app, you can set the device as a shared device in the settings menu and invite others to watch the recordings. Users must download the Mi Home app and login to their Xiaomi account in order to view the recordings of the shared device. -
Page 15: Home Security
Home Security The Home Security function can be turned on/off in the control interface for IMILAB EC3 Outdoor Security Camera in the Mi Home app. The device can detect and record movements within the viewing angle and push the recording to the client. Users can set the surveillance time,... -
Page 16: Fcc Statement
Precautions The working temperature of the device is -20℃ to 40℃. Do not use the device when the temperature is too high or too low. For better results, avoid placing the camera in front of or next or a glass surface, a white-colored wall or other reflective surfaces as this may cause the recording to have un-even lighting between the foreground and background or be over-exposed. - Page 17 residential installation. This equipment generates, uses, and canradiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
