Product Introduction

Product Introduction - Part 1

In this instruction manual, images of the device, accessories and user interface are for illustrative purposes only and should only be used for reference.
The actual device may differ from the illustrations due to product updates and upgrades.
Please refer to the actual device.

Product Introduction - Part 2

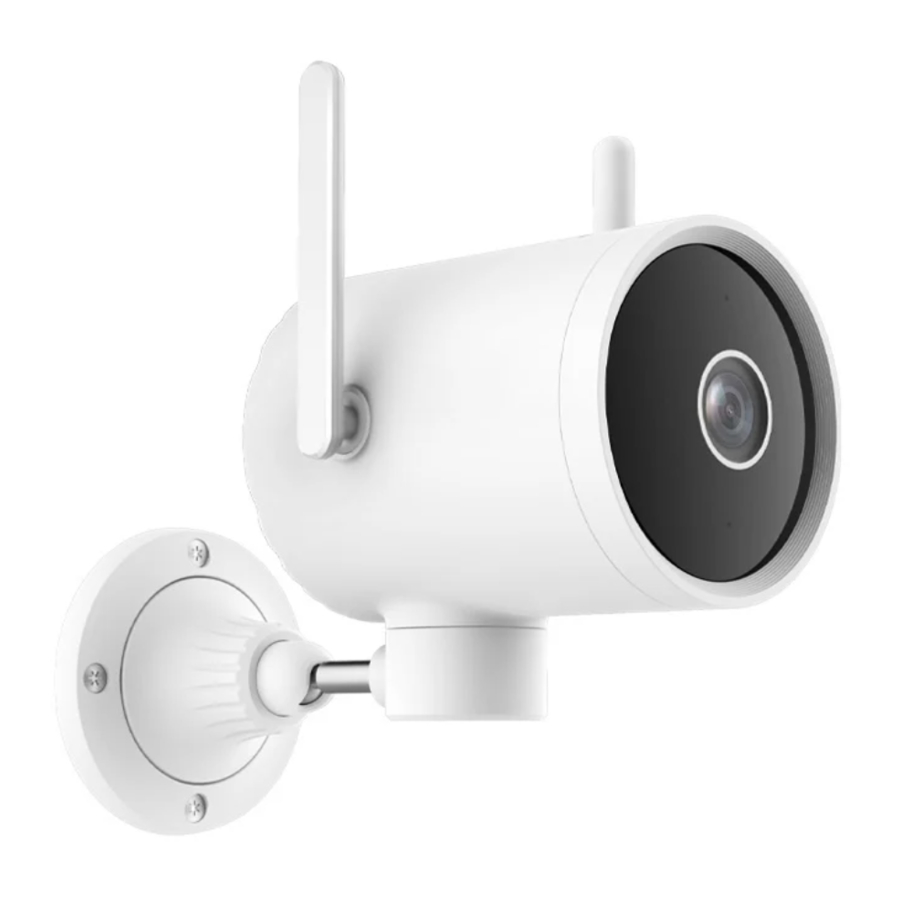

Packing list: IMILAB EC3 Pro Outdoor Security Camera, wall mounting pack, power adapter, user manual

Installing the Device

Then secure the camera to the metal rod with a screw.
Installing the Device - Then secure the camera to the metal rod with a screw

Note: The warranty does not cover any damage caused by improper installation. Please follow the instructions.

Mounting the device

warning Note: Please check that the Wi-Fi signal is strong enough before mounting the device.

Attach the positioning sticker on the desired installation location. Drill four holes at the positions indicated on the sticker. Drilling diameter of around 6.0mm; drilling depth of around 30mm.
Insert four plastic expansion nuts into the holes.
Cover part of power cable with the base plate as indicated.
Put the base plate on the wall. Ensure that the power cable goes straight down. Secure the base plate by inserting the screws into the expansion nuts.

Note:

In order to prevent accidents and injuries, please secure the device firmly onto the wall as illustrated. The wall on which the device is mounted must have a loading capacity of at least 3 times the weight of the device.
Do not install the device near a heat source, such as an air-conditioner compressor, air vent of a range hood or air vent of a gas water heater.
As the camera can be rotated horizontally, please pay attention to the safe turning distance during installation. Do not install the device at a location where its horizontal movement would be impeded.

Installing the Device - Top View

The distance between the base plate and the wall should be at least 50mm to allow for a safety turning distance. Any gap of less than 50mm will result in an obstruction to the camera's movement.

Connecting the Device

Turn on the camera
Step 1: Insert the power supply cable into the camera's power supply port. Connect the other end of the power supply cable to a power source.
Step 2: When connected to a power supply, the indicator light will show the camera's status. When the indicator light is yellow, the camera is being turned on; when the indicator light is flashing yellow, it is waiting to be connected.
Insert a micro SD card
Ensure that the camera is disconnected from the power supply. Use a screwdriver to remove the protective case and expose the micro SD card slot. The contact points of the micro SD card should be facing the same direction as the camera. Insert the micro SD card into the slot.

Note:
When inserting or removing the micro SD card, please disconnect the camera from the power supply. Please use a micro SD card from a reputable manufacturer. The recommended read and write speed of the micro SD card is at least U1/Class 10.
Restoring factory settings
Press and hold the reset button to restore the factory settings. The content inside the micro SD card will not be deleted.

Connecting to Mi Home App

This product works with Mi Home and can be controlled using the Mi Home app.
Scan the QR code to download and install the Mi Home app. If you already have Mi Home app installed, you will be directed to the device connection page. You can also search for "Mi Home" in an app store to download and install the Mi Home app.

About Works with Mi Home

A product that works with Mi Home can be controlled using the Mi Home app. Please note that such products are only verified at the software level. Xiaomi and Mi Home are not responsible for the production, implementation of standards and quality control of these products and their manufacturers.

Note:
The actual operation may differ from the instructions above due to Mi Home app upgrades and updates. Please follow the instructions shown by the Mi Home app.

Infrared Night Vision

The light sensor can automatically switch the device to night vision mode through IR-CUT based on changes in the lighting of the environment. The device features 2 built-in infrared night vision lights that ensure recording stays clear even in darkness.

Infrared night vision effect illustration

Video Playback

Past videos can only be viewed when a compatible micro SD card is inserted in IMILAB EC3 Pro Outdoor Security Camera. After inserting a micro SD card and turning on the device, the camera will automatically start recording.
In the control interface of the Mi Home app, tap the playback button to enter the video playback page. You can also view a recording by selected a time period.

In the control interface for IMILAB EC3 Pro Outdoor Security Camera in the Mi Home app, you can set the device as a shared device in the settings menu and invite others to watch the recordings. Users must download the Mi Home app and login to their Xiaomi account in order to view the recordings of the shared device.
Sharing a Video

Home Security

The Home Security function can be turned on/off in the control interface for IMILAB EC3 Pro Outdoor Security Camera in the Mi Home app.
The device can detect and record movements within the viewing angle and push the recording to the client. Users can set the surveillance time, alert sensitivity, alert interval, etc.

Precautions

The working temperature of the device is -20℃ to 40℃. Do not use the device when the temperature is too high or too low.
For better results, avoid placing the camera in front of or next or a glass surface, a white-colored wall or other reflective surfaces as this may cause the recording to have uneven lighting between the foreground and background or be over-exposed.
Please ensure that the device is within Wi-Fi signal coverage. Place it at a location with good Wi-Fi signal strength. Try to avoid placing the device near a metallic object, a microwave oven or other objects that may cause signal interference.

Specifications

Name: IMILAB EC3 Pro Outdoor Security Camera
Item Dimensions: 158*91*117mm
Model: CMSXJ42A
Net Weight: 435g
Input: 12V1A
Viewing Angle: 110°
Resolution: 2304×1296
Aperture: F2.1
Operating Temperature: -20℃~ 40℃
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz FCC ID: 2APA9-CMSXJ42A
