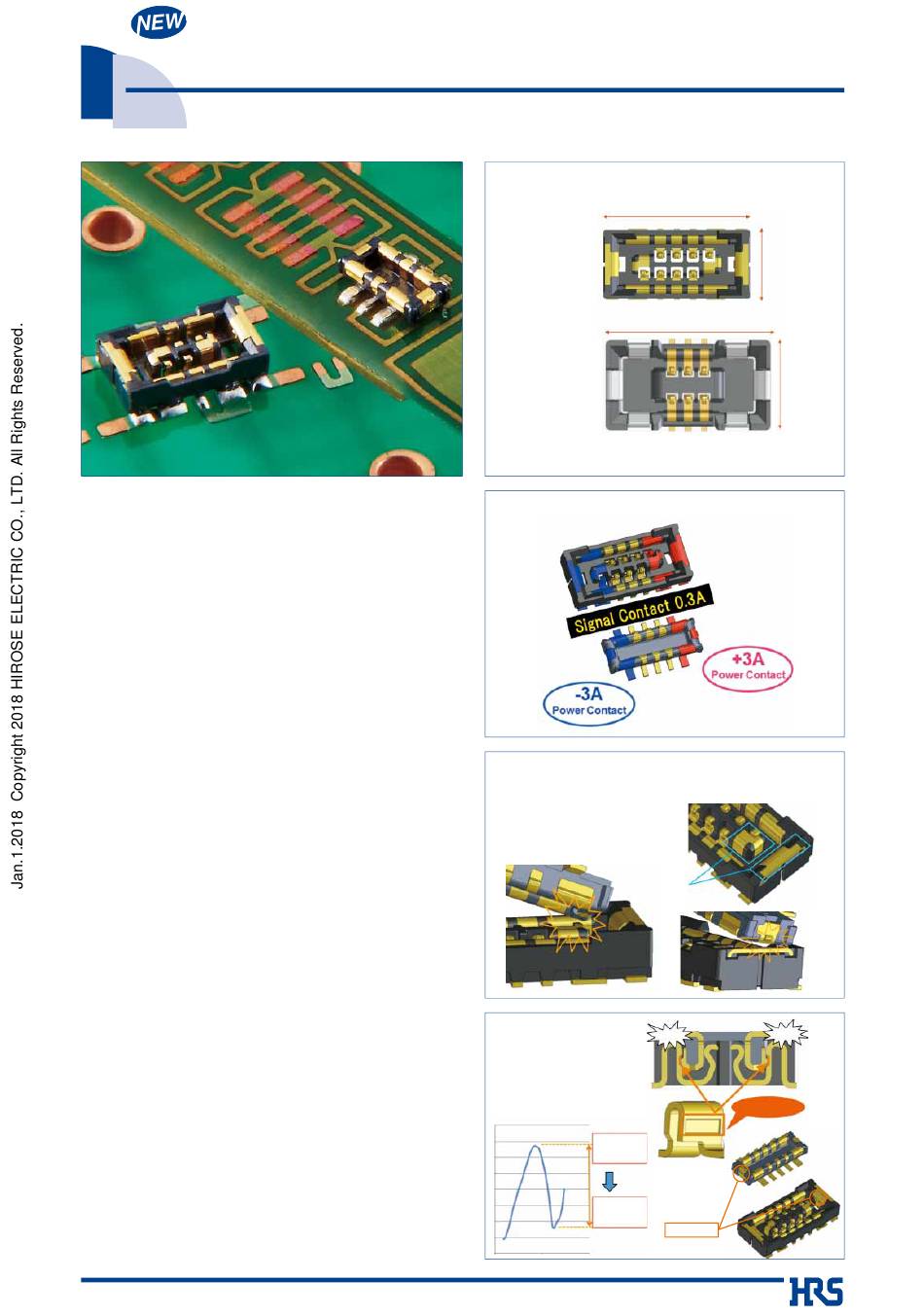

HRS BM29 Series Manual

Ultra-small, power/signal contact design for Board-to-Board/FPC-to-Board providing 3A max current
BM29 Series
■Features
1. Space-saving design
Compact and flexible design ideal for mobile
devices. (Fig.1)
・ Pitch : 0.35mm, Depth : 1.5mm, Stacking height : 0.6mm
2. Equipped with power contacts capable of
handling up to 3A current.
・ R ated current : 3A (power contact), 0.3A (signal
contact)
3. The proprietary metal guide prevents the
connector from being damaged against
offset mating.
(Fig.3)
4. A tactile click ensures secure mating.
5. 2-points of contact offer high contact
reliability.
20% reduction in size compared with alternate Hirose's products
BM29
6 contacts
Prior generation
product :
BM23
6 contacts
The narrower and shorter, yet flexible design
allows tight installation.
Combination Power / Signal contact design
(Fig.2)
Contacts mating is designed to reduce
(Fig.4)
connector damage even if mated incorrectly.
The contact is
designed to
provide a tactile
click.
3.16mm
1.5mm
3.55mm
Metal
guides
Click!
Locking
groove
The load
plummets.
A tactile
click
Metal locks
2016.4 q
1.98mm
Fig.1
Fig.2
Fig.2
Fig.3
Click!
Fig.4
