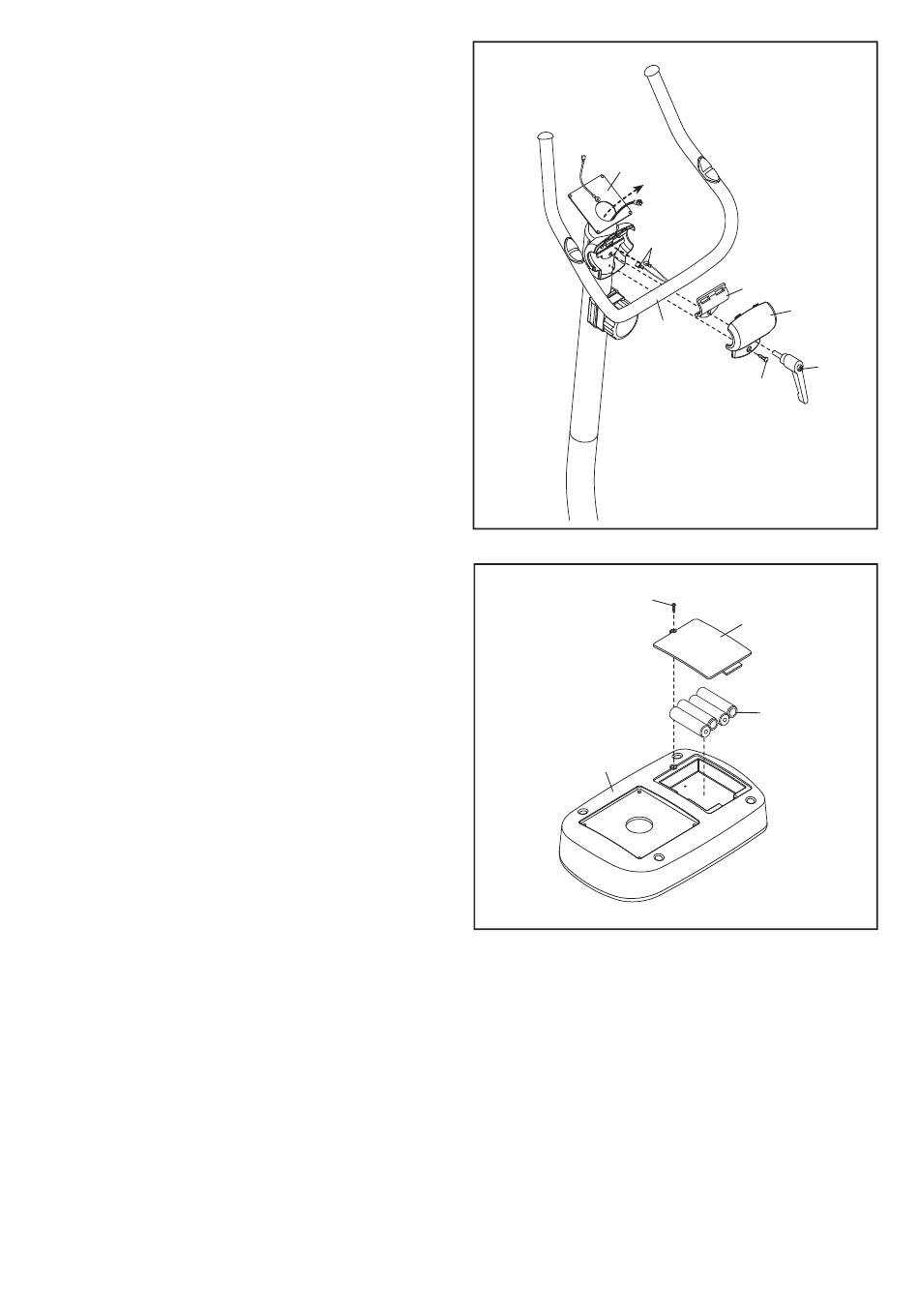

4. While another person holds the Handlebar (50)
near the Upright (13), insert the Pulse Wires
(59) into the Upright and pull them upward out
of the top of the Upright.
Tip: Do not pinch the wires. Attach the
Handlebar (50) to the Upright (13) with the Pivot
Clamp (54), the Rear Cover (3), and the Pivot
Handle (55).
Note: The Pivot Handle (55) functions like a
ratchet. Turn the Pivot Handle clockwise, pull it
away from the Upright (13), turn it counterclock-
wise, push it toward the Upright, and then turn it
clockwise again. Repeat this process until the
Pivot Handle is tight.
Attach the Rear Cover (3) to the Upright (13)
with an M4 x 15mm Screw (48).
5. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, and insert the batteries into the battery
compartment. Then, reattach the battery cover.
Make sure to orient the batteries as shown
by the diagram inside the battery compart-
ment.
