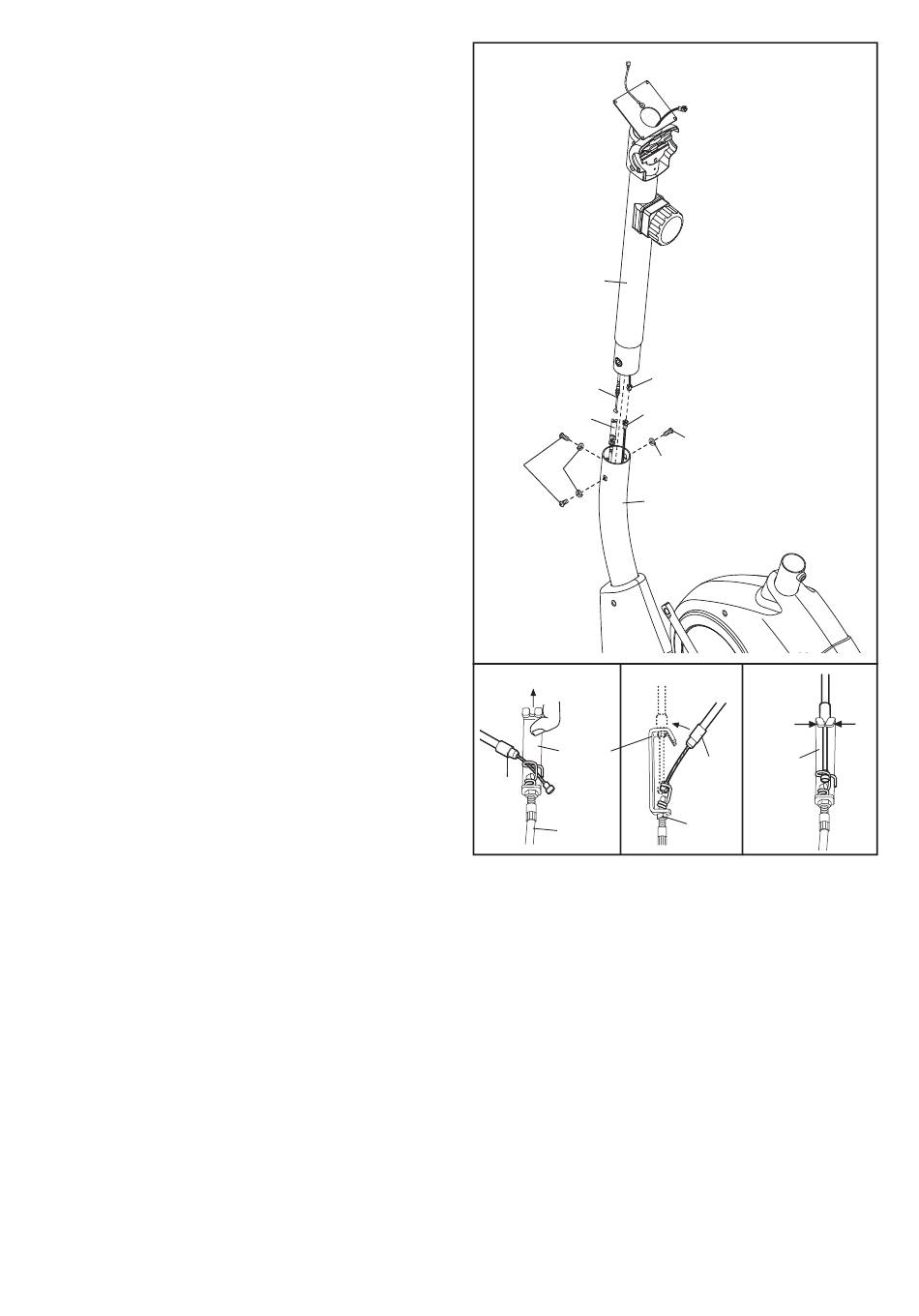

3. While another person holds the Upright (13)
near the Frame (1), connect the Extension Wire
(23) to the Reed Switch Wire (39). Next, con-
nect the Resistance Cable (19) to the Lower
Cable (29) in the following way:
• See drawing A. Pull upward on the metal
bracket on the Lower Cable (29), and insert
the tip of the Resistance Cable (19) into the
wire clip inside the metal bracket as shown.
• See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of
the metal bracket as shown.
• See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Push the Wires (23, 39) and the Cables (19, 29)
downward into the Frame (1).
Tip: Do not pinch the wires and cables. Insert
the Upright (13) into the Frame (1). Attach the
Upright with three M8 x 16mm Patch Screws
(34) and three M8 Split Washers (42).
All manuals and user guides at all-guides.com
7
3
13
19
39
29
34
42
1
B
A
Metal
Bracket
19
29
Do not pinch the
wires and cables
23
34
42
C
Metal
19
Bracket
29
