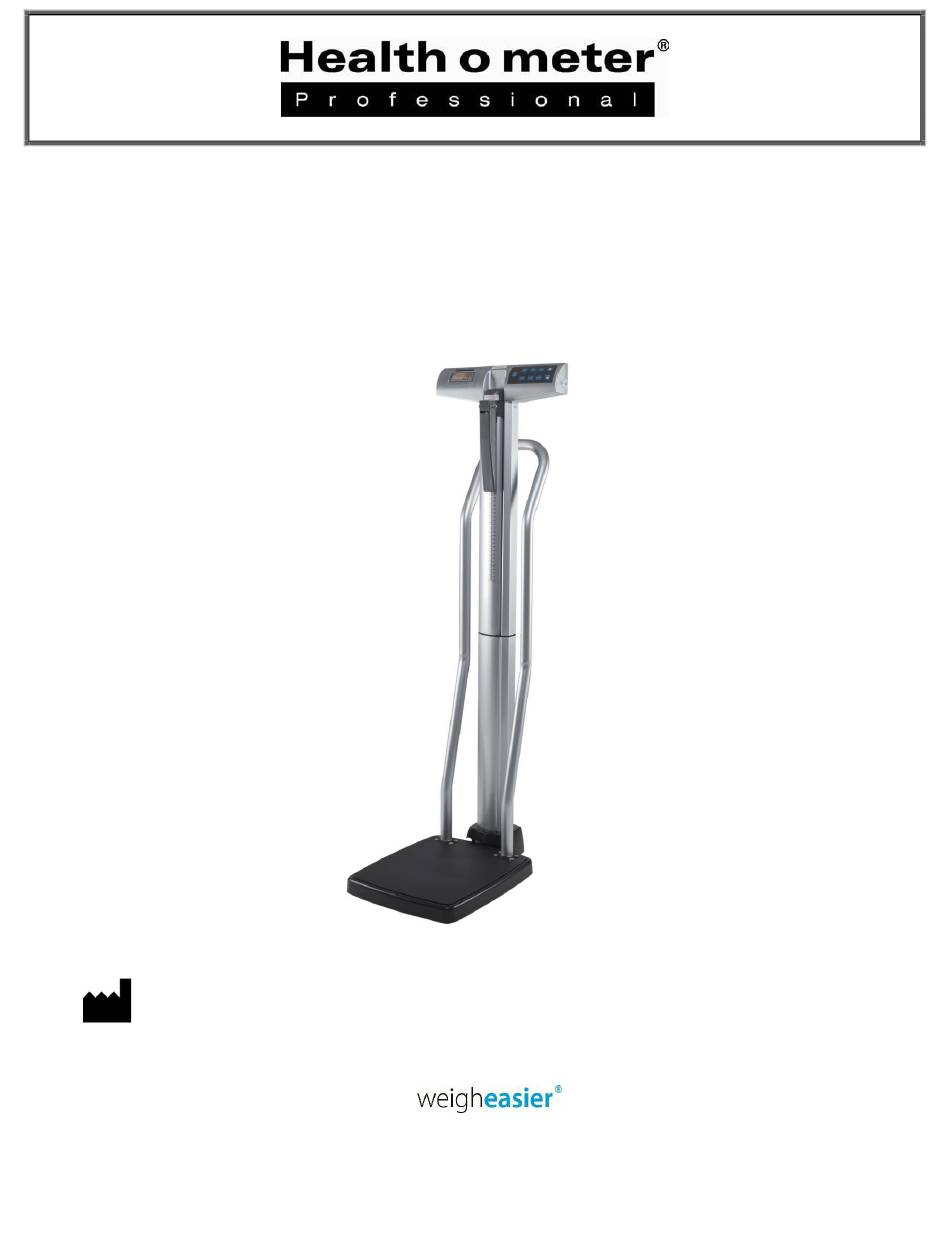

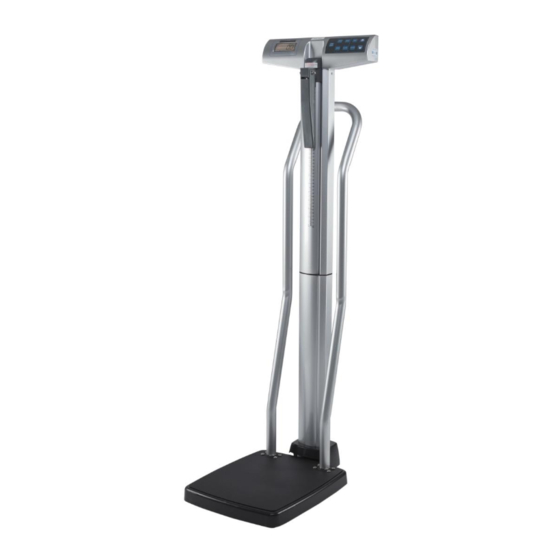

- Page 1 500HB Installation Instructions PELSTAR, LLC 9500 West 55 St. McCook, IL 60525-7110 USA www.homscales.com © Pelstar, LLC 2023 P/N 82-00009 REV F 500HB Installation Instructions REV20230707...
- Page 2 Do not allow patients to use excessive force to push or pull on the handlebars during the weighing process. ® In no event whatsoever shall Pelstar , LLC be liable for damages or injuries whatsoever arising out of or connected with the assembly, use, or misuse of its products.
- Page 3 1. Gently place the fully assembled scale on a flat, level surface on its side. Note: If installing handlebars on a 502 series scale, skip to installation step 9A then skip to step 17. 2. Remove the 2 Rear Screws (closest to the wheels) that secure the Scale Column to the Base.
- Page 4 7. Slide Spacer into Base and position Spacer so that Mount Holes in Spacer align with Holes in Base. 8. Insert the two Screws removed in step 3 into the Mount Holes on bottom of Base.Then tighten all 4 Screws securely. Note: If your scale has the factory installed mounting holes and cover caps as shown, follow installation...
- Page 5 10. There are posts on both sides of the drill guide. These posts must slide into holes in platform. 11. Drill guide must be positioned so that posts slide fully into holes on bottom of scale platform. 12. With drill guide properly positioned on bottom of scale platform, use a power drill and the provided ¼”...
- Page 6 15. Remove and discard drill guide. Carefully place the scale upright on the floor. Platform will now have 8 holes for mounting the handlebars. 16. Use a utility knife or similar tool to remove plastic burrs from the top of the scale platform. 17.
- Page 7 21. Insert two of the provided 1/4-20 X 2 1/4” screws into the plate on the handlebars and into the scale platform, one screw on the outside of both sides of the handlebar channel. Insert the screws manually or using the included ratchet allen wrench.
- Page 8 26. Position the bracket as shown and thread the screw into the threaded nut on the bracket. Note: • If the scale base includes a bar along the back ensure the silver brackets are not touching the bar when mounting the brackets underneath the platform.
-
Page 9: Installation Is Now Complete
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your invoice or receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or any way change the terms and conditions of this warranty.
