Analog Devices EVAL-AD5677RSDZ User Manual page 8

Evaluation board for the ad5677r 16-bit, 16-channel, voltage output dac
Hide thumbs

Advertisement

UG-1766
EVAL-AD5677RSDZ
User Guide

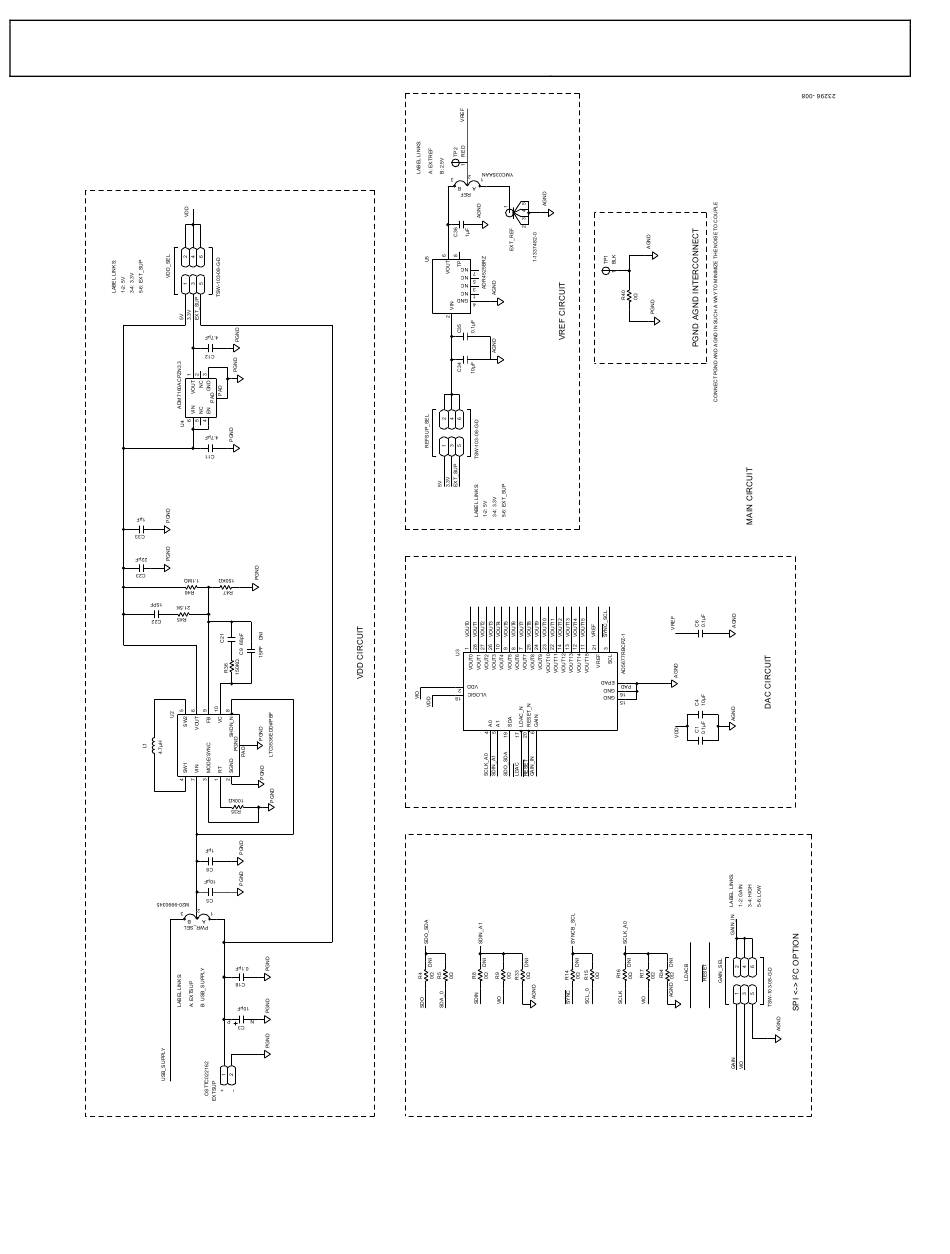

Figure 8. EVAL-AD5677RSDZ Schematic, Main Circuit
Rev. 0 | Page 8 of 13
